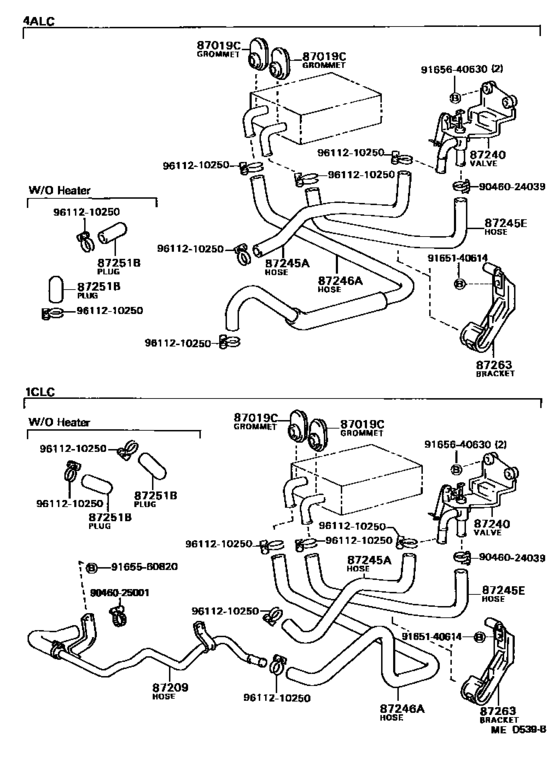

Heating & Air Conditioning - Water Piping ([08.1983 - ] (8308- )) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- DX
- body
- SED
- ENGINE
- 4ALC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87019C
|
87019C
90480-01015
Grommet, Heater Hose
[08.1983 - 07.1987] AE82,CE80 |
90480-01015 |
— | ||
|
87240
|
87240
87240-12200
Valve Assy, Heater Water
[08.1983 - 01.1986] AE82,CE80 |
87240-12200 |
— | ||
| replacement | |||||
|
87240
|
87240
87240-12201
Valve Assy, Heater Water
[08.1983 - 01.1986] AE82,CE80 |
87240-12201 |
— | ||
|
87240
|
87240
87240-12201
Valve Assy, Heater Water
[01.1986 - 07.1987] AE82 |
87240-12201 |
— | ||
|
87245A
|
87245A
87245-12730 Hose, Heater Water, Inlet AHEATER WATER, INLET A [08.1983 - 07.1987] AE82 |
87245-12730 |
US $21.99 |
||
|
87245E
|
87245E
87245-12680 Hose, Heater Water, Inlet EHEATER WATER, INLET E [08.1983 - 07.1987] AE82,CE80 |
87245-12680 |
US $24.61 |
||
|
87246A
|
87246A
87245-12740 Hose, Heater Water, Outlet AHEATER WATER, OUTLET A [08.1983 - 07.1987] AE82 |
87245-12740 |
US $42.66 |
||
|
87251B
|
87251B
90339-16007
Plug
[08.1983 - 07.1987] AE82,CE80..USA |
90339-16007 |
— | ||
| replacement | |||||
|
87251B
|
87251B
90339-16001 Plug, Heater Water[08.1983 - 07.1987] AE82,CE80..USA |
90339-16001 |
from US $2.88 |
||
|
87263
|
87263
87263-12220
Bracket, Heater Water Pipe, No.1
[08.1983 - 07.1987] AE82,CE80 |
87263-12220 |
— | ||
|
9046024039
|
9046024039
90460-24039 Clamp Or Clip, Hose(For Oil Cooler Hose) |
90460-24039 |
US $1.54 |
||
| replacement | |||||
|
9046024039
|
9046024039
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $5.85 |
||
|
9046025001
|
9046025001
90460-25001
New Genuine Part
|
90460-25001 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165560820
|
9165560820
91655-60820
BOLT
|
91655-60820 |
— | ||
| replacement | |||||
|
9165560820
|
9165560820
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
|
9165640630
|
9165640630
91656-40630 New Genuine Part |
91656-40630 |
US $1.89 |
||
| replacement | |||||
|
9165640630
|
9165640630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.36 |
||
