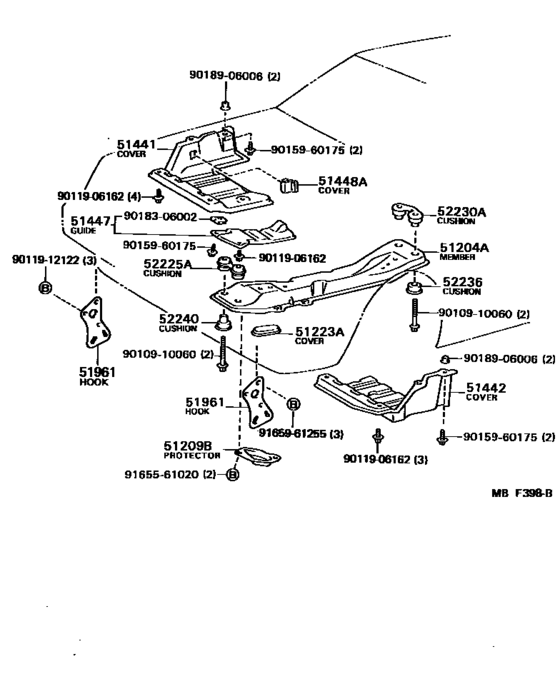

Suspension Crossmember & Under Cover ([08.1983 - ] (8308- )) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- DX
- body
- SED
- ENGINE
- 4ALC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51204A
|
51204A
51204-12030 Member Sub-Assy, Engine Mounting, CenterENGINE MOUNTING, CENTER [08.1983 - 12.1986] AE82,CE80 |
51204-12030 |
US $202.38 |
||
| replacements | |||||
|
51204A
|
51204A
51204-12032 Member Sub-Assy, Engine Mounting, CenterENGINE MOUNTING, CENTER [08.1983 - 12.1986] AE82,CE80 |
51204-12032 |
US $209.66 |
||
|
51204A
|
51204A
90119-10474 New Genuine Part[08.1983 - 12.1986] AE82,CE80 |
90119-10474 |
US $3.35 |
||
|
51204A
|
51204A
51204-12031 Member Sub-Assy, Engine Mounting, CenterENGINE MOUNTING, CENTER [12.1986 - 07.1987] AE82 |
51204-12031 |
US $196.56 |
||
| replacements | |||||
|
51204A
|
51204A
51204-12032 Member Sub-Assy, Engine Mounting, CenterENGINE MOUNTING, CENTER [12.1986 - 07.1987] AE82 |
51204-12032 |
US $209.66 |
||
|
51204A
|
51204A
90119-10474 New Genuine Part[12.1986 - 07.1987] AE82 |
90119-10474 |
US $3.35 |
||
|
51209B
|
51209B
51209-20010 Protector Sub-Assy, Center Member, Front[08.1983 - 07.1987] AE82,CE80 |
51209-20010 |
US $28.68 |
||
|
51223A
|
51223A
51223-20020 Cover, Engine Mounting Hole[08.1983 - 07.1987] AE82,CE80 |
51223-20020 |
US $4.37 |
||
| replacement | |||||
|
51223A
|
51223A
51223-20030
Cover, Engine Mounting Hole
[08.1983 - 07.1987] AE82,CE80 |
51223-20030 |
— | ||
|
51441
|
51441
51441-12130 Cover, Engine Under, No.1ENGINE UNDER, NO.1 [05.1984 - 09.1986] AE82,CE80 |
51441-12130 |
US $109.20 |
||
| replacement | |||||
|
51441
|
51441
51441-12131
Cover, Engine Under, No.1
[05.1984 - 09.1986] AE82,CE80 |
51441-12131 |
— | ||
|
51441
|
51441
51441-12131
Cover, Engine Under, No.1
[09.1986 - 07.1987] AE82 |
51441-12131 |
— | ||
|
51441
|
51441
51441-20080 Cover, Engine Under, No.1[08.1983 - 05.1984] AE82,CE80 |
51441-20080 |
US $109.20 |
||
|
51442
|
51442
51442-20010 Cover, Engine Under, No.2[08.1983 - 07.1987] AE82,CE80..MTM |
51442-20010 |
US $94.64 |
||
|
51447
|
51447
51447-12070 Guide, Engine Under Cover Air[08.1983 - 07.1987] AE82 |
51447-12070 |
US $11.36 |
||
|
51448A
|
51448A
51448-20010
Cover, Engine Side Under, Rh
[08.1983 - 07.1987] AE82,CE80 |
51448-20010 |
— | ||
|
51961
|
51961
51963-12080 Hook, No.1NO.1 [08.1983 - 07.1987] AE82,CE80 |
51963-12080 |
US $26.50 |
||
|
52225A
|
52225A
52225-20010
Cushion, Center Member Mounting, Front Upper
[08.1983 - 07.1987] AE82,CE80 |
52225-20010 |
— | ||
|
52230A
|
52230A
52230-20010
Cushion Assy, Center Member Mounting, Rear Upper
[08.1983 - 07.1987] AE82,CE80 |
52230-20010 |
— | ||
|
52236
|
52236
52236-20010
Cushion, Center Member Mounting, Rear Lower
[08.1983 - 07.1987] AE82,CE80 |
52236-20010 |
— | ||
|
52240
|
52240
52240-20010
Cushion Assy, Center Member Mounting, Front Lower
[08.1983 - 07.1987] AE82,CE80 |
52240-20010 |
— | ||
|
9010910060
|
9010910060
90109-10060
New Genuine Part
|
90109-10060 |
— | ||
| replacement | |||||
|
9010910060
|
9010910060
91651-61060 New Genuine Part |
91651-61060 |
US $0.96 |
||
|
9011906162
|
9011906162
90119-06162
New Genuine Part
|
90119-06162 |
— | ||
| replacement | |||||
|
9011906162
|
9011906162
90119-06361 BOLT WWASHER |
90119-06361 |
from US $1.28 |
||
|
9011912122
|
9011912122
90119-12122 New Genuine Part |
90119-12122 |
US $3.20 |
||
|
9015960175
|
9015960175
90159-60175 New Genuine Part |
90159-60175 |
US $1.92 |
||
|
9018306002
|
9018306002
90183-06002 Retainer, Fuel Filler Pipe Protector |
90183-06002 |
US $2.48 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9165561020
|
9165561020
91655-61020 New Genuine Part |
91655-61020 |
US $2.48 |
||
| replacement | |||||
|
9165561020
|
9165561020
91651-61016 Bolt |
91651-61016 |
US $1.14 |
||
|
9165961255
|
9165961255
91659-61255 New Genuine Part |
91659-61255 |
US $3.06 |
||
