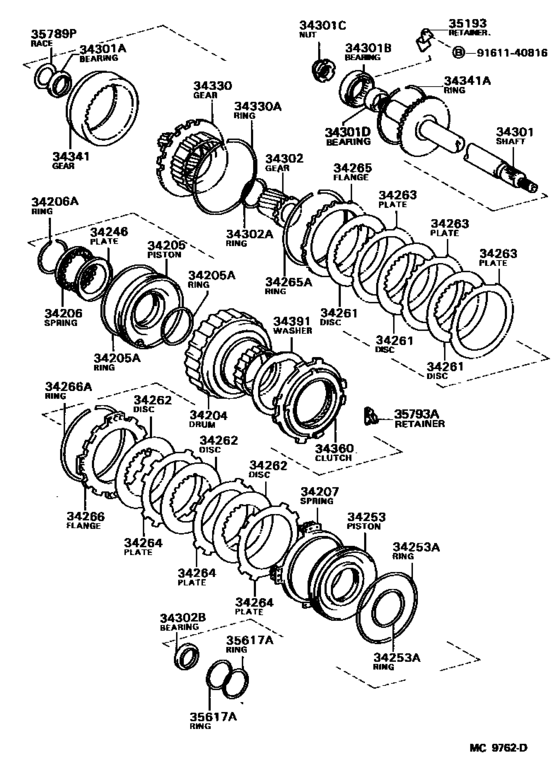

Overdrive Gear (Atm) ([08.1984 - ] (8408- )4FC) Diagram Toyota COROLLA
- Year
- 1984 - 1987
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- LE
- body
- SED
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1984
- To
- 07.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34204
|
34204
34204-12010
Drum Sub-Assy, Underdrive Clutch
[08.1984 - 09.1984] AE82..4FC |
34204-12010 |
— | ||
|
34204
|
34204
34204-12020 Drum Sub-Assy, Underdrive Clutch[09.1984 - 07.1987] AE82..4FC |
34204-12020 |
US $327.60 |
||
| replacement | |||||
|
34204
|
34204
34204-12H00 Drum Sub-Assy, Underdrive Clutch[09.1984 - 07.1987] AE82..4FC |
34204-12H00 |
US $321.78 |
||
|
34205
|
34205
34205-12010
Piston Sub-Assy, Underdrive Clutch
[08.1984 - 09.1984] AE82..4FC |
34205-12010 |
— | ||
|
34205
|
34205
34205-12020 Piston Sub-Assy, Underdrive Clutch[09.1984 - 07.1987] AE82..4FC |
34205-12020 |
US $35.53 |
||
|
34205A
|
34205A
90301-57188 Ring, O (For Underdrive Clutch Piston)[08.1984 - 07.1987] AE82..4FC INNER |
90301-57188 |
US $10.08 |
||
| replacement | |||||
|
34205A
|
34205A
90301-56007 Ring, O (For Underdrive Clutch Piston)[08.1984 - 07.1987] AE82..4FC INNER |
90301-56007 |
US $2.72 |
||
|
34205A
|
34205A
90301-98001 Ring, O (For Underdrive Clutch Piston)[08.1984 - 07.1987] AE82..4FC OUTER |
90301-98001 |
US $8.01 |
||
| replacement | |||||
|
34205A
|
34205A
90301-98003 Ring, O (For Underdrive Clutch Piston)[08.1984 - 07.1987] AE82..4FC OUTER |
90301-98003 |
US $2.62 |
||
|
34206
|
34206
34206-12010 Spring Sub-Assy, Underdrive Clutch Return[08.1984 - 07.1987] AE82..4FC |
34206-12010 |
US $11.65 |
||
|
34206A
|
34206A
90520-52262 Ring, Shaft Snap (For Underdrive Return Spring)[08.1984 - 07.1987] AE82..4FC |
90520-52262 |
US $2.80 |
||
|
34207
|
34207
34207-12010 Spring Sub-Assy, Underdrive Brake Return[08.1984 - 07.1987] AE82..4FC |
34207-12010 |
US $9.90 |
||
|
34246
|
34246
34246-12010 Plate, Underdrive Clutch Return Spring[08.1984 - 07.1987] AE82..4FC |
34246-12010 |
US $5.10 |
||
|
34253
|
34253
34253-12010 Piston, Underdrive Brake[08.1984 - 07.1987] AE82..4FC |
34253-12010 |
US $28.39 |
||
|
34253A
|
34253A
90301-57188 Ring, O (For Underdrive Clutch Piston)[08.1984 - 07.1987] AE82..4FC INNER |
90301-57188 |
US $10.08 |
||
| replacement | |||||
|
34253A
|
34253A
90301-56007 Ring, O (For Underdrive Clutch Piston)[08.1984 - 07.1987] AE82..4FC INNER |
90301-56007 |
US $2.72 |
||
|
34253A
|
34253A
90301-98001 Ring, O (For Underdrive Clutch Piston)[08.1984 - 07.1987] AE82..4FC OUTER |
90301-98001 |
US $8.01 |
||
| replacement | |||||
|
34253A
|
34253A
90301-98003 Ring, O (For Underdrive Clutch Piston)[08.1984 - 07.1987] AE82..4FC OUTER |
90301-98003 |
US $2.62 |
||
|
34261
|
34261
34261-12010 Disc, Underdrive Clutch, No.1[08.1984 - 07.1987] AE82..4FC |
34261-12010 |
US $33.92 |
||
| replacement | |||||
|
34261
|
34261
34261-20010 Disc, Underdrive Clutch, No.1[08.1984 - 07.1987] AE82..4FC |
34261-20010 |
US $26.06 |
||
|
34262
|
34262
34262-12010 Disc, Underdrive Clutch, No.2[08.1984 - 07.1987] AE82..4FC |
34262-12010 |
US $34.22 |
||
| replacement | |||||
|
34262
|
34262
34262-12020 Disc, Underdrive Clutch, No.2[08.1984 - 07.1987] AE82..4FC |
34262-12020 |
US $34.07 |
||
|
34263
|
34263
34263-12010 Plate, Underdrive Clutch, No.1[08.1984 - 07.1987] AE82..4FC |
34263-12010 |
US $13.69 |
||
|
34264
|
34264
34264-12010 Plate, Underdrive Clutch, No.2[08.1984 - 07.1987] AE82..4FC |
34264-12010 |
US $15.43 |
||
|
34265
|
34265
34265-12010
Flange, Underdrive Clutch, No.1
[08.1984 - 09.1984] AE82..4FC T=3.40 |
34265-12010 |
— | ||
|
34265
|
34265
34265-12020
Flange, Underdrive Clutch, No.1
[08.1984 - 09.1984] AE82..4FC T=3.04 |
34265-12020 |
— | ||
|
34265
|
34265
34265-12030 Flange, Underdrive Clutch, No.1[09.1984 - 07.1987] AE82..4FC T=2.04,T=2.04 |
34265-12030 |
US $25.33 |
||
| replacement | |||||
|
34265
|
34265
34265-12060 Flange, Underdrive Clutch, No.1[09.1984 - 07.1987] AE82..4FC T=2.04,T=2.04 |
34265-12060 |
US $24.90 |
||
|
34265
|
34265
34265-12040 Flange, Underdrive Clutch, No.1[09.1984 - 07.1987] AE82..4FC T=2.40,T=2.40 |
34265-12040 |
US $27.96 |
||
| replacement | |||||
|
34265
|
34265
34265-12080 Flange, Underdrive Clutch, No.1[09.1984 - 07.1987] AE82..4FC T=2.40,T=2.40 |
34265-12080 |
US $27.81 |
||
|
34265A
|
34265A
90521-99015
Ring, Hole Snap (For Underdrive Clutch Flange No.1)
[08.1984 - 07.1987] AE82..4FC |
90521-99015 |
— | ||
|
34266
|
34266
34266-12010 Flange, Underdrive Clutch, No.2[08.1984 - 07.1987] AE82..4FC |
34266-12010 |
US $32.32 |
||
|
34266A
|
34266A
90521-99015
Ring, Hole Snap (For Underdrive Clutch Flange No.1)
[08.1984 - 07.1987] AE82..4FC |
90521-99015 |
— | ||
|
34301
|
34301
34301-12010 Shaft Sub-Assy, Underdrive Input[08.1984 - 07.1987] AE82..4FC |
34301-12010 |
US $263.54 |
||
| replacements | |||||
|
34301
|
34301
34301-10010 Shaft Sub-Assy, Underdrive Input[08.1984 - 07.1987] AE82..4FC |
34301-10010 |
US $235.87 |
||
|
34301
|
34301
90179-20013 Nut(For Counter Driven Gear)[08.1984 - 07.1987] AE82..4FC |
90179-20013 |
US $3.49 |
||
|
34301A
|
34301A
90364-31003 Bearing, Needle Roller (For Underdrive Input Shaft)[08.1984 - 07.1987] AE82..4FC |
90364-31003 |
US $22.28 |
||
|
34301B
|
34301B
90365-38002
Bearing, Cylindrical Roller, No.1 (For Underdrive)
[08.1984 - 07.1987] AE82..4FC |
90365-38002 |
— | ||
|
34301C
|
34301C
90179-26003 Nut (For Underdrive Input Shaft)[08.1984 - 07.1987] AE82..4FC |
90179-26003 |
US $3.49 |
||
|
34301D
|
34301D
90365-30021 Bearing, Cylindrical Roller, No.2 (For Underdrive)[08.1984 - 07.1987] AE82..4FC |
90365-30021 |
US $24.32 |
||
|
34302
|
34302
34302-12010 Gear Sub-Assy, Underdrive Planetary Sun[08.1984 - 07.1987] AE82..4FC |
34302-12010 |
US $141.23 |
||
|
34302A
|
34302A
90521-48001 Ring, Hole Snap (For Underdrive Planetary Sun Gear)[08.1984 - 07.1987] AE82..4FC |
90521-48001 |
US $3.06 |
||
|
34302B
|
34302B
90364-31003 Bearing, Needle Roller (For Underdrive Input Shaft)[08.1984 - 07.1987] AE82..4FC |
90364-31003 |
US $22.28 |
||
|
34330
|
34330
34330-12010
Gear Assy, Underdrive Planetary
[08.1984 - 09.1984] AE82..4FC |
34330-12010 |
— | ||
|
34330
|
34330
34330-12020 Gear Assy, Underdrive Planetary[09.1984 - 07.1987] AE82..4FC |
34330-12020 |
US $576.58 |
||
|
34330A
|
34330A
90521-99015
Ring, Hole Snap (For Underdrive Clutch Flange No.1)
[08.1984 - 07.1987] AE82..4FC |
90521-99015 |
— | ||
|
34341
|
34341
34341-12010 Gear, Underdrive Planetary Ring[08.1984 - 07.1987] AE82..4FC |
34341-12010 |
US $158.70 |
||
|
34341A
|
34341A
90521-98001 Ring, Hole Snap (For Underdrive Planetary Ring)[08.1984 - 07.1987] AE82..4FC |
90521-98001 |
US $4.08 |
||
|
34360
|
34360
34360-12010 Clutch Assy, Underdrive 1 Way[08.1984 - 07.1987] AE82..4FC |
34360-12010 |
US $410.59 |
||
| replacement | |||||
|
34360
|
34360
34360-12030 Clutch Assy, Underdrive 1 Way[08.1984 - 07.1987] AE82..4FC |
34360-12030 |
US $410.59 |
||
|
34391
|
34391
34391-12010 Washer, Underdrive Clutch Drum Thrust[08.1984 - 07.1987] AE82..4FC |
34391-12010 |
US $5.10 |
||
|
35193
|
35193
35193-12010 Retainer, Roller Bearing[08.1984 - 07.1987] AE82..4FC |
35193-12010 |
US $4.08 |
||
|
35617A
|
35617A
35617-16010 Ring, Oil Seal (For Overdrive Case)[08.1984 - 07.1987] AE82..4FC |
35617-16010 |
US $16.42 |
||
|
35789P
|
35789P
35789-12010 Race, Thrust Bearing (For Underdrive Input Shaft)[08.1984 - 07.1987] AE82..4FC |
35789-12010 |
US $9.32 |
||
|
35793A
|
35793A
35793-10010 Retainer, Underdrive 1 Way Clutch[08.1984 - 07.1987] AE82..4FC |
35793-10010 |
US $5.10 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
