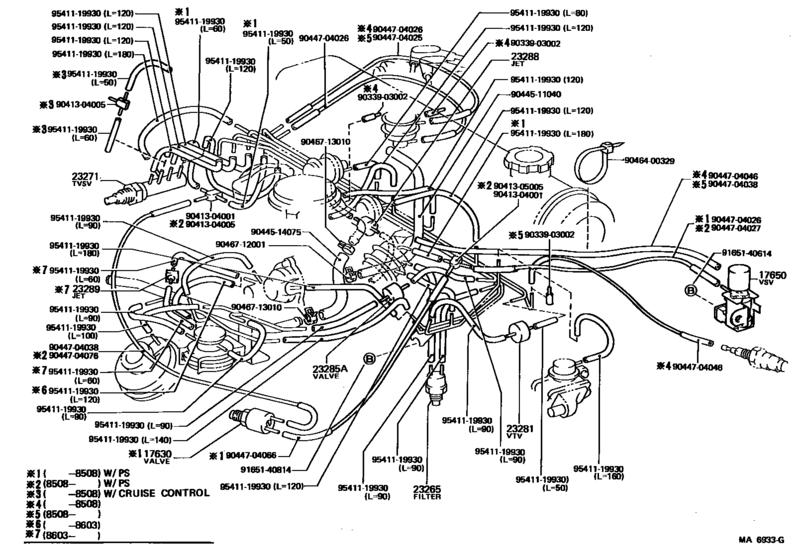

Vacuum Piping ([08.1983 - ] (8308- )4ALC..CND) Diagram Toyota COROLLA
- Year
- 1984 - 1987
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- LE
- body
- SED
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1984
- To
- 07.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17630
|
17630
17630-15010 Valve Assy, Air Control[08.1983 - 04.1985] 4ALC..AE82 W/PS |
17630-15010 |
US $134.53 |
||
|
17630
|
17630
17630-15030 Valve Assy, Air Control[04.1985 - 08.1985] 4ALC..AE82 W/PS |
17630-15030 |
US $189.28 |
||
|
17650
|
17650
89570-12270 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [08.1983 - 08.1984] 4ALC..AE82 IDLE-UP |
89570-12270 |
US $132.50 |
||
|
17650
|
17650
89570-12320 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [08.1984 - 08.1985] 4ALC..AE82 IDLE-UP |
89570-12320 |
US $132.50 |
||
|
23265
|
23265
90917-11023 Filter, Gas, No.1[08.1983 - 07.1987] 4ALC..AE82 |
90917-11023 |
from US $23.41 |
||
|
23271
|
23271
90925-02076
Valve, Thermostatic Vacuum Switching, No.1
[08.1983 - 07.1987] 4ALC..AE82 |
90925-02076 |
— | ||
|
23281
|
23281
90925-01014
Valve, Vacuum Transmitting, No.1
[08.1983 - 07.1987] 4ALC..AE82 |
90925-01014 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[08.1983 - 07.1987] 4ALC..AE82 |
90917-10049 |
from US $10.24 |
||
|
23288
|
23288
90925-04003
Jet, No.1
[08.1983 - 08.1984] 4ALC..AE82..CND |
90925-04003 |
— | ||
|
23288
|
23288
90925-04006 Jet(For Opener)[08.1984 - 08.1985] 4ALC..AE82..ATM..CND |
90925-04006 |
US $15.90 |
||
|
23289
|
23289
90925-04034 Jet, No.1[03.1986 - 07.1987] 4ALC..AE82 |
90925-04034 |
US $10.63 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9041304001
|
9041304001
90413-04001 Way, 3(For Transfer Breather Hose) |
90413-04001 |
US $4.96 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
US $3.04 |
||
|
9041305005
|
9041305005
90413-05005
New Genuine Part
|
90413-05005 |
— | ||
|
9044511040
|
9044511040
90445-11040
Hose, No.1(For Idle-Up)
|
90445-11040 |
— | ||
|
9044514075
|
9044514075
90445-14075 Hose, No.1(For Air Pipe) |
90445-14075 |
US $5.39 |
||
|
9044704025
|
9044704025
90447-04025 New Genuine Part |
90447-04025 |
US $3.64 |
||
|
9044704026
|
9044704026
90447-04026 New Genuine Part |
90447-04026 |
US $3.64 |
||
|
9044704027
|
9044704027
90447-04027 New Genuine Part |
90447-04027 |
US $3.49 |
||
|
9044704038
|
9044704038
90447-04038 New Genuine Part |
90447-04038 |
US $4.95 |
||
|
9044704046
|
9044704046
90447-04046 Hose, Fuel, No.1(For Charcoal Canister)FUEL, NO.1(FOR CHARCOAL CANISTER) |
90447-04046 |
US $4.95 |
||
| replacement | |||||
|
9044704046
|
9044704046
90447-04108 Hose, Fuel, No.1(For Charcoal Canister)FUEL, NO.1(FOR CHARCOAL CANISTER) |
90447-04108 |
US $4.66 |
||
|
9044704066
|
9044704066
90447-04066 New Genuine Part |
90447-04066 |
US $3.64 |
||
|
9044704076
|
9044704076
90447-04076 New Genuine Part |
90447-04076 |
US $24.61 |
||
|
9046400329
|
9046400329
90464-00329 Clamp (For Fuel Lid Lock Control Cable) |
90464-00329 |
US $2.62 |
||
| replacement | |||||
|
9046400329
|
9046400329
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
9046712001
|
9046712001
90467-12001 Clip(For Carburetor Fuel Hose) |
90467-12001 |
US $2.18 |
||
| replacement | |||||
|
9046712001
|
9046712001
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.92 |
||
|
9046713010
|
9046713010
90467-13010 Clip(For Ventilation Hose No.2) |
90467-13010 |
US $2.48 |
||
| replacement | |||||
|
9046713010
|
9046713010
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.60 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
