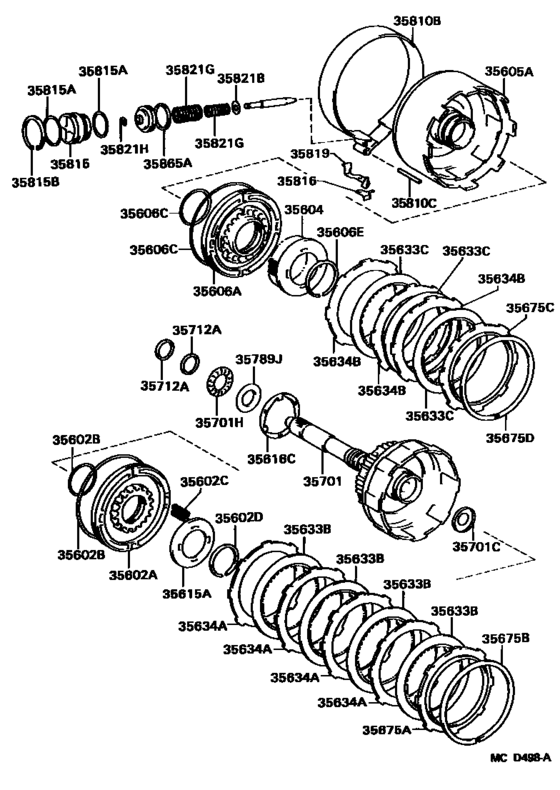

Brake Band & Multiple Disc Clutch (Atm) ([09.1986 - ] (8609- )ATM) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35602A
|
35602A
35602-32020 Piston Sub-Assy, Forward Clutch[09.1986 - 08.1988] AE82..ATM |
35602-32020 |
US $42.37 |
||
| replacement | |||||
|
35602A
|
35602A
35602-32021 Piston Sub-Assy, Forward Clutch[09.1986 - 08.1988] AE82..ATM |
35602-32021 |
US $54.89 |
||
|
35602B
|
35602B
90301-46002 Ring, O (For Forward Clutch Piston)[09.1986 - 08.1988] AE82..ATM INNER |
90301-46002 |
US $9.60 |
||
|
35602B
|
35602B
90301-99016 Ring, O (For Overdrive Direct Clutch Piston)[09.1986 - 08.1988] AE82..ATM OUTER |
90301-99016 |
US $12.80 |
||
|
35602C
|
35602C
90501-11007 Spring, Compression (For Overdrive Direct Clutch)[09.1986 - 08.1988] AE82..ATM |
90501-11007 |
US $2.48 |
||
|
35602D
|
35602D
90520-44001
Ring, Shaft Snap(For Forward Clutch Piston Return Spring)
[09.1986 - 08.1988] AE82..ATM |
90520-44001 |
— | ||
|
35604
|
35604
35604-32010 Spring Sub-Assy, Direct Clutch Return[09.1986 - 08.1988] AE82..ATM |
35604-32010 |
US $12.08 |
||
|
35605A
|
35605A
35605-20010 Drum Sub-Assy, Direct Clutch[03.1988 - 08.1988] AE82..ATM..D |
35605-20010 |
US $206.75 |
||
| replacements | |||||
|
35605A
|
35605A
35370-20H02 Shaft Assy, Stator[03.1988 - 08.1988] AE82..ATM..D |
35370-20H02 |
US $179.09 |
||
|
35605A
|
35605A
35370-20H00 Shaft Assy, Stator[03.1988 - 08.1988] AE82..ATM..D |
35370-20H00 |
US $243.15 |
||
|
35605A
|
35605A
35605-32040 Drum Sub-Assy, Direct Clutch[02.1987 - 03.1988] AE82..ATM..D |
35605-32040 |
US $206.75 |
||
| replacements | |||||
|
35605A
|
35605A
35370-20H02 Shaft Assy, Stator[02.1987 - 03.1988] AE82..ATM..D |
35370-20H02 |
US $179.09 |
||
|
35605A
|
35605A
35370-20H00 Shaft Assy, Stator[02.1987 - 03.1988] AE82..ATM..D |
35370-20H00 |
US $243.15 |
||
|
35606A
|
35606A
35606-32020 Piston Sub-Assy, Direct Clutch[09.1986 - 08.1988] AE82..ATM |
35606-32020 |
US $42.37 |
||
| replacement | |||||
|
35606A
|
35606A
35606-20010 Piston Sub-Assy, Direct Clutch[09.1986 - 08.1988] AE82..ATM |
35606-20010 |
US $42.37 |
||
|
35606C
|
35606C
90301-57188 Ring, O (For Underdrive Clutch Piston)[09.1986 - 08.1988] AE82..ATM INNER |
90301-57188 |
US $10.08 |
||
| replacement | |||||
|
35606C
|
35606C
90301-56007 Ring, O (For Underdrive Clutch Piston)[09.1986 - 08.1988] AE82..ATM INNER |
90301-56007 |
US $2.72 |
||
|
35606C
|
35606C
90301-99016 Ring, O (For Overdrive Direct Clutch Piston)[09.1986 - 08.1988] AE82..ATM OUTER |
90301-99016 |
US $12.80 |
||
|
35606E
|
35606E
90520-52002 Ring, Shaft Snap (For Direct Clutch Piston Return Spring)[09.1986 - 08.1988] AE82..ATM |
90520-52002 |
US $2.91 |
||
|
35615A
|
35615A
35615-32010 Seat, Forward Clutch Piston Return Spring[09.1986 - 08.1988] AE82..ATM |
35615-32010 |
US $4.37 |
||
|
35616C
|
35616C
35616-32021 Washer, Clutch Drum Thrust (For Direct Clutch Drum)[09.1986 - 08.1988] AE82..ATM |
35616-32021 |
US $28.10 |
||
|
35633B
|
35633B
35633-10020 Disc, Clutch (For Forward Multiple Disc Clutch)[09.1986 - 08.1988] AE82..ATM |
35633-10020 |
US $28.83 |
||
|
35633C
|
35633C
35633-10020 Disc, Clutch (For Forward Multiple Disc Clutch)[02.1987 - 08.1988] AE82..ATM..D |
35633-10020 |
US $28.83 |
||
|
35634A
|
35634A
35634-32010 Plate, Clutch (For Forward Multiple Disc Clutch)[09.1986 - 08.1988] AE82..ATM T=1.8 |
35634-32010 |
US $16.77 |
||
|
35634B
|
35634B
35634-32010 Plate, Clutch (For Forward Multiple Disc Clutch)[09.1986 - 08.1988] AE82..ATM T=1.8 |
35634-32010 |
US $16.77 |
||
|
35675A
|
35675A
35675-32010
Flange, Forward Clutch
[09.1986 - 08.1988] AE82..ATM T=3.0,T=3.00 |
35675-32010 |
— | ||
| replacement | |||||
|
35675A
|
35675A
35675-12050 Flange, Forward Clutch[09.1986 - 08.1988] AE82..ATM T=3.0,T=3.00 |
35675-12050 |
US $53.87 |
||
|
35675A
|
35675A
35675-32020 Flange, Forward Clutch[09.1986 - 08.1988] AE82..ATM T=3.37,T=3.37 |
35675-32020 |
US $56.64 |
||
| replacement | |||||
|
35675A
|
35675A
35675-32061 Flange, Forward Clutch[09.1986 - 08.1988] AE82..ATM T=3.37,T=3.37 |
35675-32061 |
US $15.43 |
||
|
35675B
|
35675B
90521-99001 Ring, Hole Snap, No.2 (For Overdrive)[09.1986 - 08.1988] AE82..ATM |
90521-99001 |
US $4.72 |
||
|
35675C
|
35675C
35675-32010
Flange, Forward Clutch
[09.1986 - 08.1988] AE82..ATM T=3.0,T=3.00 |
35675-32010 |
— | ||
| replacement | |||||
|
35675C
|
35675C
35675-12050 Flange, Forward Clutch[09.1986 - 08.1988] AE82..ATM T=3.0,T=3.00 |
35675-12050 |
US $53.87 |
||
|
35675C
|
35675C
35675-32020 Flange, Forward Clutch[02.1987 - 08.1988] AE82..ATM..D T=3.37,T=3.37 |
35675-32020 |
US $56.64 |
||
| replacement | |||||
|
35675C
|
35675C
35675-32061 Flange, Forward Clutch[02.1987 - 08.1988] AE82..ATM..D T=3.37,T=3.37 |
35675-32061 |
US $15.43 |
||
|
35675D
|
35675D
90521-99001 Ring, Hole Snap, No.2 (For Overdrive)[09.1986 - 08.1988] AE82..ATM |
90521-99001 |
US $4.72 |
||
|
35701
|
35701
35701-32021 Shaft Sub-Assy, Input[02.1987 - 08.1988] AE82..ATM..D |
35701-32021 |
US $343.62 |
||
| replacement | |||||
|
35701
|
35701
35701-12070 Shaft Sub-Assy, Input[02.1987 - 08.1988] AE82..ATM..D |
35701-12070 |
US $361.09 |
||
|
35701C
|
35701C
35789-32040 Race, Thrust Bearing (For Input Shaft Rear)[09.1986 - 08.1988] AE82..ATM |
35789-32040 |
US $9.32 |
||
|
35701H
|
35701H
90374-28005
Bearing, Thrust Needle Roller (For Input Shaft)
[09.1986 - 08.1988] AE82..ATM OD=42.0 |
90374-28005 |
— | ||
|
35712A
|
35712A
35712-32010 Ring, Input Shaft Oil Seal[09.1986 - 08.1988] AE82..ATM |
35712-32010 |
US $5.68 |
||
|
35789J
|
35789J
35789-32010
Race, Thrust Bearing (For Input Shaft Front)
[09.1986 - 08.1988] AE82..ATM |
35789-32010 |
— | ||
|
35810B
|
35810B
35810-32020 Band Assy, 2Nd Coast Brake[09.1986 - 08.1988] AE82..ATM |
35810-32020 |
US $101.92 |
||
|
35810C
|
35810C
90250-07001 Pin (For 2Nd Coast Brake Band)[02.1987 - 08.1988] AE82..ATM..D |
90250-07001 |
US $3.06 |
||
|
35815
|
35815
35815-32010 Cover, 2Nd Coast Brake[09.1986 - 08.1988] AE82..ATM |
35815-32010 |
US $15.72 |
||
|
35815A
|
35815A
90301-41002 Ring, O (For 2Nd Coast Brake Cover)[09.1986 - 08.1988] AE82..ATM |
90301-41002 |
US $7.86 |
||
|
35815B
|
35815B
90521-53001 Ring, Hole Snap (For 2Nd Coast Brake Cover)[09.1986 - 08.1988] AE82..ATM |
90521-53001 |
US $4.80 |
||
|
35816
|
35816
35816-12010 Retainer, Brake Band Guide Plate[09.1986 - 08.1988] AE82..ATM |
35816-12010 |
US $2.91 |
||
|
35819
|
35819
35819-12010 Plate, 2Nd Coast Brake Band Guide[02.1987 - 08.1988] AE82..ATM..D |
35819-12010 |
US $4.95 |
||
|
35821B
|
35821B
90201-06557 Washer, Plate (For 2Nd Coast Brake Piston)[09.1986 - 08.1988] AE82..ATM |
90201-06557 |
US $0.96 |
||
|
35821G
|
35821G
90501-20051 Spring, Compression (For 2Nd Coast Brake Piston)[09.1986 - 08.1988] AE82..ATM INNER |
90501-20051 |
US $1.75 |
||
|
35821G
|
35821G
90501-26024 Spring, Compression (For 2Nd Coast Brake Piston)[09.1986 - 08.1988] AE82..ATM OUTER |
90501-26024 |
US $6.29 |
||
|
35821H
|
35821H
96160-00500 Ring, E(For Over Center Lever)[09.1986 - 08.1988] AE82..ATM |
96160-00500 |
from US $1.01 |
||
|
35865A
|
35865A
35865-32010 Ring, 2Nd Coast Brake Piston Oil Seal[09.1986 - 08.1988] AE82..ATM |
35865-32010 |
US $11.07 |
||
