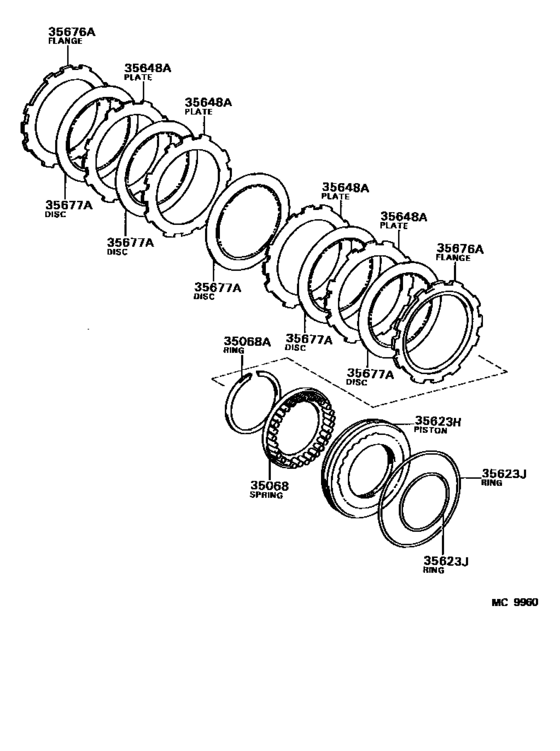

Brake No.3, 1St & Reverse Brake (Atm) ([09.1986 - ] (8609- )ATM) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35068
|
35068
35068-32010 Spring Sub-Assy, 1St & Reverse Brake Return[09.1986 - 08.1988] AE82..ATM |
35068-32010 |
US $29.70 |
||
| replacement | |||||
|
35068
|
35068
35068-20010 Spring Sub-Assy, 1St & Reverse Brake Return[09.1986 - 08.1988] AE82..ATM |
35068-20010 |
US $28.54 |
||
|
35068A
|
35068A
90520-90001 Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)[09.1986 - 08.1988] AE82..ATM |
90520-90001 |
US $3.06 |
||
|
35623H
|
35623H
35623-32020 Piston, 1St & Reverse Brake[02.1987 - 08.1988] AE82..ATM..D |
35623-32020 |
US $51.83 |
||
|
35623J
|
35623J
90301-94001 Ring, O (For 1St & Reverse Brake)[09.1986 - 08.1988] AE82..ATM INNER |
90301-94001 |
US $8.01 |
||
|
35623J
|
35623J
90301-99022 Ring, O (For Overdrive Brake Piston)[09.1986 - 08.1988] AE82..ATM OUTER |
90301-99022 |
US $12.67 |
||
|
35648A
|
35648A
35648-32020 Plate, Clutch (For 1St & Reverse Brake)[09.1986 - 08.1988] AE82..ATM |
35648-32020 |
US $29.41 |
||
|
35676A
|
35676A
35676-32010 Flange, Brake (For 2Nd Brake)[09.1986 - 08.1988] AE82..ATM T=3.5 |
35676-32010 |
US $61.88 |
||
| replacement | |||||
|
35676A
|
35676A
35676-12030 Flange, Brake (For 2Nd Brake)[09.1986 - 08.1988] AE82..ATM T=3.5 |
35676-12030 |
from US $64.79 |
||
|
35677A
|
35677A
35677-32040 Disc, Clutch (For 2Nd Brake)[02.1987 - 08.1988] AE82..ATM..D |
35677-32040 |
US $27.66 |
||
