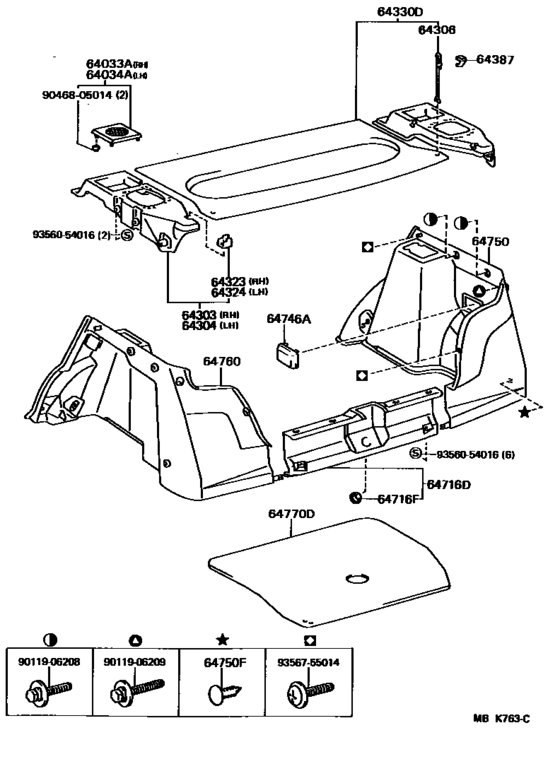

Deck Board & Deck Trim Cover ([09.1986 - ] (8609- )) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64033A
|
64033A
64383-02010-J9
Grille Sub-Assy, Rear Speaker, Rh
[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
64383-02010-J9 |
— | ||
|
64033A
|
64033A
64383-02010-P8
Grille Sub-Assy, Rear Speaker, Rh
[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
64383-02010-P8 |
— | ||
|
64034A
|
64034A
64383-02010-J9
Grille Sub-Assy, Rear Speaker, Rh
[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
64383-02010-J9 |
— | ||
|
64034A
|
64034A
64383-02010-P8
Grille Sub-Assy, Rear Speaker, Rh
[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
64383-02010-P8 |
— | ||
|
64303
|
64303
64321-02010-J9
Bracket Sub-Assy, Package Tray, Rh
[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
64321-02010-J9 |
— | ||
|
64303
|
64303
64321-02010-P8
Bracket Sub-Assy, Package Tray, Rh
[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
64321-02010-P8 |
— | ||
|
64303
|
64303
64321-02020-J9
Bracket Sub-Assy, Package Tray, Rh
[09.1986 - 08.1988] AE82 W/SPEAKER GRILLE,DARK BLUE,DARK BLUE |
64321-02020-J9 |
— | ||
|
64303
|
64303
64321-02020-P8
Bracket Sub-Assy, Package Tray, Rh
[09.1986 - 08.1988] AE82 W/SPEAKER GRILLE,CHARCOAL,CHARCOAL |
64321-02020-P8 |
— | ||
|
64304
|
64304
64322-02010-J9
Bracket Sub-Assy, Package Tray, Lh
[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
64322-02010-J9 |
— | ||
|
64304
|
64304
64322-02010-P8
Bracket Sub-Assy, Package Tray, Lh
[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
64322-02010-P8 |
— | ||
|
64304
|
64304
64322-02020-J9
Bracket Sub-Assy, Package Tray, Lh
[09.1986 - 08.1988] AE82 W/SPEAKER GRILLE,DARK BLUE,DARK BLUE |
64322-02020-J9 |
— | ||
|
64304
|
64304
64322-02020-P8
Bracket Sub-Assy, Package Tray, Lh
[09.1986 - 08.1988] AE82 W/SPEAKER GRILLE,CHARCOAL,CHARCOAL |
64322-02020-P8 |
— | ||
|
64306
|
64306
64306-16020 Suspender Sub-Assy, Package Tray Trim[01.1987 - 08.1988] AE82 |
64306-16020 |
US $9.76 |
||
| replacement | |||||
|
64306
|
64306
64306-12030
Suspender Sub-Assy, Package Tray Trim
[01.1987 - 08.1988] AE82 |
64306-12030 |
— | ||
|
64323
|
64323
64323-02010
Clamp, Package Tray Trim, No.1
[08.1987 - 08.1988] AE82 |
64323-02010 |
— | ||
| replacement | |||||
|
64323
|
64323
64323-12020
Clamp, Package Tray Trim, No.1
[08.1987 - 08.1988] AE82 |
64323-12020 |
— | ||
|
64324
|
64324
64324-02010
Clamp, Package Tray Trim, No.2
[08.1987 - 08.1988] AE82 |
64324-02010 |
— | ||
| replacement | |||||
|
64324
|
64324
64324-12010
Clamp, Package Tray Trim, Rh
[08.1987 - 08.1988] AE82 |
64324-12010 |
— | ||
|
64330D
|
64330D
64330-02010-B5
Panel Assy, Package Tray Trim
[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
64330-02010-B5 |
— | ||
| replacement | |||||
|
64330D
|
64330D
64330-02010-B0
Panel Assy, Package Tray Trim
[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
64330-02010-B0 |
— | ||
|
64330D
|
64330D
64330-02010-L5
Panel Assy, Package Tray Trim
[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
64330-02010-L5 |
— | ||
| replacement | |||||
|
64330D
|
64330D
64330-02010-B0
Panel Assy, Package Tray Trim
[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
64330-02010-B0 |
— | ||
|
64387
|
64387
64381-10010 Hanger, Package Tray Trim[09.1986 - 08.1988] AE82 |
64381-10010 |
from US $4.80 |
||
|
64716D
|
64716D
64716-02010-J9
Cover, Deck Trim, Rear
[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
64716-02010-J9 |
— | ||
|
64716D
|
64716D
64716-02010-P8
Cover, Deck Trim, Rear
[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
64716-02010-P8 |
— | ||
|
64716F
|
64716F
90950-01436-J9 Plug, Hole(For Deck Trim Rear Cover)[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
90950-01436-J9 |
US $3.06 |
||
| replacement | |||||
|
64716F
|
64716F
90950-01436-J0 Plug(For Package Tray Trim Panel)[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
90950-01436-J0 |
US $3.06 |
||
|
64716F
|
64716F
90950-01436-P8 Plug, Hole(For Deck Trim Rear Cover)[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
90950-01436-P8 |
US $3.06 |
||
| replacement | |||||
|
64716F
|
64716F
90950-01436-C1 Plug, Hole(For Rear Floor Finish Plate) BLACK[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
90950-01436-C1 |
from US $3.03 |
||
|
64746A
|
64746A
64746-01010-J9
Cover, Deck Trim Side Lamp Hole
[02.1987 - 08.1988] AE82..D DARK BLUE,DARK BLUE |
64746-01010-J9 |
— | ||
|
64746A
|
64746A
64746-01010-P8
Cover, Deck Trim Side Lamp Hole
[02.1987 - 08.1988] AE82..D CHARCOAL,CHARCOAL |
64746-01010-P8 |
— | ||
|
64750
|
64750
64731-02010-J9 Panel Assy, Deck Side Trim, RhDECK SIDE TRIM, RH [09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
64731-02010-J9 |
US $225.68 |
||
|
64750
|
64750
64731-02010-P8 Panel Assy, Deck Side Trim, RhDECK SIDE TRIM, RH [09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
64731-02010-P8 |
US $225.68 |
||
|
64750F
|
64750F
90467-06049-J9 Clip(For Front Floor Rear Carpet)[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
90467-06049-J9 |
US $1.89 |
||
| replacement | |||||
|
64750F
|
64750F
90467-06049-J1 Clip(For Front Floor Rear Carpet)[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
90467-06049-J1 |
US $1.89 |
||
|
64750F
|
64750F
90467-06049-P8 Clip(For Front Floor Rear Carpet)[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
90467-06049-P8 |
US $1.89 |
||
| replacement | |||||
|
64750F
|
64750F
90467-06049-B0 Clip(For Front Floor Rear Carpet)[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
90467-06049-B0 |
US $1.40 |
||
|
64760
|
64760
64732-02010-J9
Panel Assy, Deck Side Trim, Lh
[09.1986 - 08.1988] AE82 DARK BLUE,DARK BLUE |
64732-02010-J9 |
— | ||
|
64760
|
64760
64732-02010-P8
Panel Assy, Deck Side Trim, Lh
[09.1986 - 08.1988] AE82 CHARCOAL,CHARCOAL |
64732-02010-P8 |
— | ||
|
64770D
|
64770D
64770-12060 Cover Assy, Spare Wheel[09.1986 - 08.1988] AE82 |
64770-12060 |
US $51.25 |
||
|
9011906208
|
9011906208
90119-06208
New Genuine Part
|
90119-06208 |
— | ||
|
9011906209
|
9011906209
90119-06209 New Genuine Part |
90119-06209 |
US $2.18 |
||
|
9046805014
|
9046805014
90468-05014 Retainer, Front Door Lower Frame Bracket Garnish |
90468-05014 |
from US $3.68 |
||
|
9356054016
|
9356054016
93560-54016 SCREW |
93560-54016 |
from US $0.96 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
