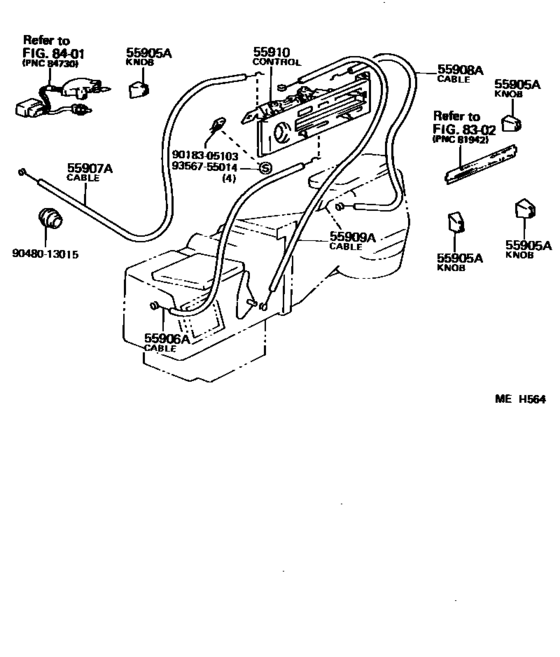

Heating & Air Conditioning - Control & Air Duct ([09.1986 - ] (8609- )) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55905A
|
55905A
55905-01010-D0
Knob, Heater Control
[09.1986 - 08.1988] AE82 BLACK,BLACK |
55905-01010-D0 |
— | ||
|
55906A
|
55906A
55906-12190 Cable Sub-Assy, Defroster Damper ControlDEFROSTER DAMPER CONTROL [09.1986 - 08.1988] AE82 |
55906-12190 |
US $7.86 |
||
|
55907A
|
55907A
55907-12250 Cable Sub-Assy, Water Valve ControlWATER VALVE CONTROL [09.1986 - 08.1988] AE82 |
55907-12250 |
US $8.88 |
||
|
55908A
|
55908A
55908-12170 Cable Sub-Assy, Air Inlet Damper ControlAIR INLET DAMPER CONTROL [09.1986 - 08.1988] AE82 |
55908-12170 |
US $13.10 |
||
|
55909A
|
55909A
55909-12150 Cable Sub-Assy, Airmix Damper ControlAIRMIX DAMPER CONTROL [09.1986 - 08.1988] AE82 |
55909-12150 |
US $8.88 |
||
|
55910
|
55910
55910-01010-D0
Control Assy, Heater Or Boost Ventilator
[09.1986 - 08.1988] AE82 BLACK,BLACK |
55910-01010-D0 |
— | ||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9048013015
|
9048013015
90480-13015 New Genuine Part |
90480-13015 |
US $4.22 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
