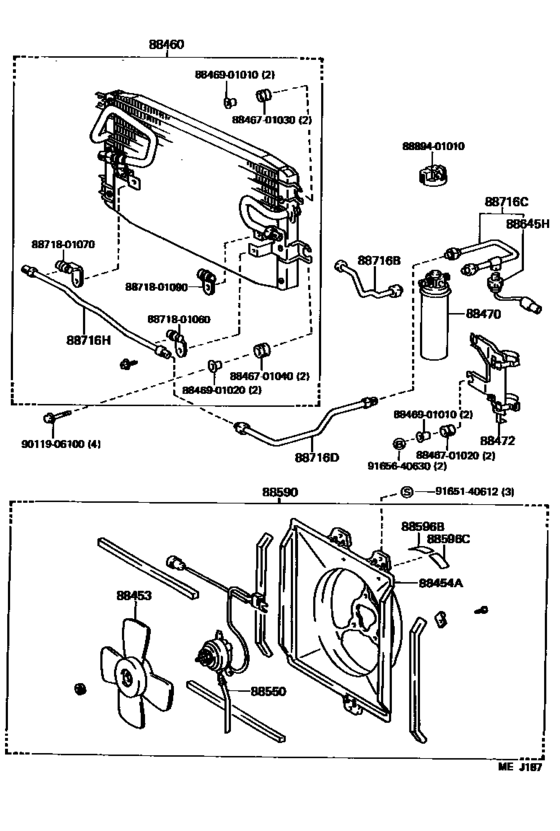

Heating & Air Conditioning - Cooler Piping ([02.1987 - ] (8702- )D) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88453
|
88453
88453-01011
Fan, Cooling (For Condenser)
[02.1987 - 08.1988] AE82..D |
88453-01011 |
— | ||
|
88454A
|
88454A
88454-01011
Shroud, Fan
[02.1987 - 08.1988] AE82..D |
88454-01011 |
— | ||
|
88460
|
88460
88460-01011
Condenser Assy, Cooler
[02.1987 - 08.1988] AE82..D |
88460-01011 |
— | ||
|
88470
|
88470
88470-01010
Receiver & Dryer Assy, Cooler
[09.1986 - 08.1988] AE82 |
88470-01010 |
— | ||
|
88472
|
88472
88473-01010
Bracket, Receiver Tank, No.1
[09.1986 - 08.1988] AE82 |
88473-01010 |
— | ||
|
88550
|
88550
88550-01011
Motor Assy, Blower (For Condenser)
[09.1986 - 08.1988] AE82 |
88550-01011 |
— | ||
|
88590
|
88590
88590-01011
Blower Assy, W/shroud
[02.1987 - 08.1988] AE82..D |
88590-01011 |
— | ||
|
88596B
|
88596B
88596-02010
Plate, Caution, No.1
[09.1986 - 08.1988] AE82 |
88596-02010 |
— | ||
|
88596C
|
88596C
88723-02010
Plate, Caution, No.2
[11.1986 - 08.1988] AE82 |
88723-02010 |
— | ||
|
88645H
|
88645H
88645-01021
Switch, Pressure No.1
[09.1986 - 08.1988] AE82 |
88645-01021 |
— | ||
|
88716B
|
88716B
88716-01060
Pipe, Cooler Refrigerant Liquid, A
[02.1987 - 08.1988] AE82..D |
88716-01060 |
— | ||
|
88716C
|
88716C
88716-01051
Pipe, Cooler Refrigerant Liquid, C
[02.1987 - 08.1988] AE82..D |
88716-01051 |
— | ||
|
88716D
|
88716D
88716-01010
Pipe, Cooler Refrigerant Liquid, D
[02.1987 - 08.1988] AE82..D |
88716-01010 |
— | ||
|
88716H
|
88716H
88716-01080
Pipe, Cooler Refrigerant Liquid, H
[02.1987 - 08.1988] AE82..D |
88716-01080 |
— | ||
|
8846701020
|
8846701020
88467-01020
Cushion, Cooler Condenser, No.1
|
88467-01020 |
— | ||
|
8846701030
|
8846701030
88467-01030
Cushion, Cooler Condenser, No.1
|
88467-01030 |
— | ||
|
8846701040
|
8846701040
88467-01040
Cushion, Cooler Condenser, No.1
|
88467-01040 |
— | ||
|
8846901010
|
8846901010
88469-01010
Switch, Pressure Control
|
88469-01010 |
— | ||
|
8846901020
|
8846901020
88469-01020
Switch, Pressure Control
|
88469-01020 |
— | ||
|
8871801060
|
8871801060
88718-01060
Pipe, Cooler Refrigerant Suction, No.2
|
88718-01060 |
— | ||
|
8871801070
|
8871801070
88718-01070
Pipe, Cooler Refrigerant Suction, No.2
|
88718-01070 |
— | ||
|
8871801090
|
8871801090
88718-01090
Pipe, Cooler Refrigerant Suction, No.2
|
88718-01090 |
— | ||
|
8889401010
|
8889401010
88894-01010
New Genuine Part
|
88894-01010 |
— | ||
|
9011906100
|
9011906100
90119-06100 BOLT |
90119-06100 |
US $1.60 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165640630
|
9165640630
91656-40630 New Genuine Part |
91656-40630 |
US $1.89 |
||
| replacement | |||||
|
9165640630
|
9165640630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
