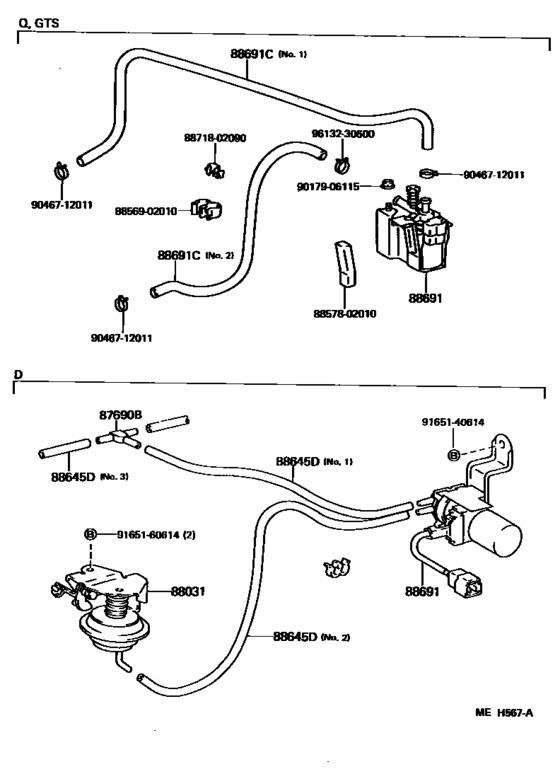

Heating & Air Conditioning - Vacuum Piping ([09.1986 - ] (8609- )) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87690B
|
87690B
90080-41001
Way, 3
[02.1987 - 08.1988] AE82..D |
90080-41001 |
— | ||
|
88031
|
88031
88031-12140 Actuator Set, Idle-UpIDLE-UP [02.1987 - 08.1988] AE82..D |
88031-12140 |
US $171.81 |
||
|
88645D
|
88645D
90999-92002
Air Hose (300 mm)
[03.1988 - 08.1988] AE82..D *H,L=40,NO.2,NO.3 |
90999-92002 |
— | ||
|
88645D
|
88645D
90999-92003
Hose, Breather (For Transfer Case)
[03.1988 - 08.1988] AE82..D *H,L=390,NO.1 |
90999-92003 |
— | ||
|
88645D
|
88645D
95411-10030
Hose (For Idle Up Device)
[02.1987 - 03.1988] AE82..D *H,L=40,MARK=#0,NO.3 |
95411-10030 |
— | ||
| replacement | |||||
|
88645D
|
88645D
90999-92002
Air Hose (300 mm)
[02.1987 - 03.1988] AE82..D *H,L=40,MARK=#0,NO.3 |
90999-92002 |
— | ||
|
88645D
|
88645D
95411-10060 Hose, Vacuum[02.1987 - 03.1988] AE82..D *H,L=390,MARK=#0,NO.1 |
95411-10060 |
US $12.23 |
||
| replacement | |||||
|
88645D
|
88645D
90999-92003
Hose, Breather (For Transfer Case)
[02.1987 - 03.1988] AE82..D *H,L=390,MARK=#0,NO.1 |
90999-92003 |
— | ||
|
88645D
|
88645D
95411-19930
Hose(For Carburetor To Manifold)
[02.1987 - 03.1988] AE82..D *H,L=280,MARK=#*,NO.2 |
95411-19930 |
— | ||
| replacement | |||||
|
88645D
|
88645D
90999-92002
Air Hose (300 mm)
[02.1987 - 03.1988] AE82..D *H,L=280,MARK=#*,NO.2 |
90999-92002 |
— | ||
|
88691
|
88691
88690-01011
Valve, Magnet (For Idle Up Device)
[02.1987 - 08.1988] AE82..D |
88690-01011 |
— | ||
|
8856902010
|
8856902010
88569-02010
Clamp (for Cooler Relay)
|
88569-02010 |
— | ||
|
8857802010
|
8857802010
88578-02010
Paking, Cooler Air Duct
|
88578-02010 |
— | ||
|
8871802090
|
8871802090
88718-02090
Pipe, Cooler Refrigerant Suction, No.2
|
88718-02090 |
— | ||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9046712011
|
9046712011
90467-12011
Clip(For Actuator Hose)
|
90467-12011 |
— | ||
| replacement | |||||
|
9046712011
|
9046712011
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.79 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.79 |
||
