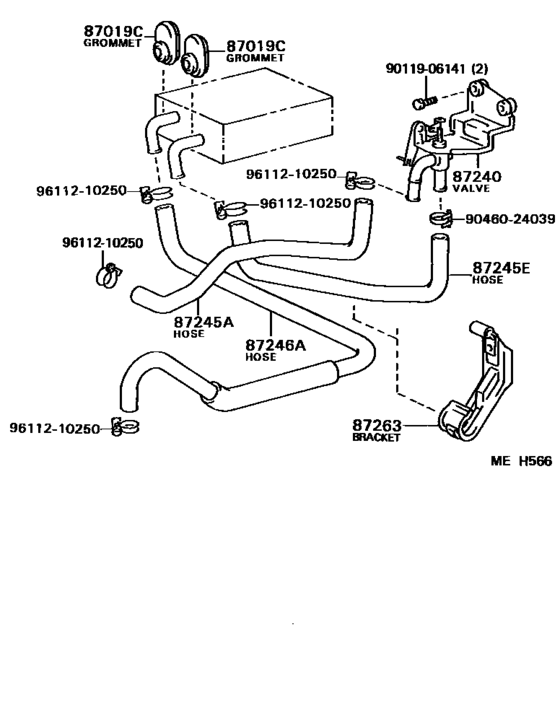

Heating & Air Conditioning - Water Piping ([09.1986 - ] (8609- )) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87019C
|
87019C
90480-01015
Grommet, Heater Hose
[09.1986 - 08.1988] AE82 |
90480-01015 |
— | ||
|
87240
|
87240
87240-12201
Valve Assy, Heater Water
[02.1987 - 08.1988] AE82..D |
87240-12201 |
— | ||
|
87245A
|
87245A
87245-12730 Hose, Heater Water, Inlet AHEATER WATER, INLET A [02.1987 - 08.1988] AE82..D |
87245-12730 |
US $21.99 |
||
|
87245E
|
87245E
87245-12680 Hose, Heater Water, Inlet EHEATER WATER, INLET E [02.1987 - 08.1988] AE82..D |
87245-12680 |
US $24.61 |
||
|
87246A
|
87246A
87245-12740 Hose, Heater Water, Outlet AHEATER WATER, OUTLET A [09.1986 - 08.1988] AE82 |
87245-12740 |
US $42.66 |
||
|
87263
|
87263
87263-12220
Bracket, Heater Water Pipe, No.1
[09.1986 - 08.1988] AE82 |
87263-12220 |
— | ||
|
9011906141
|
9011906141
90119-06141
New Genuine Part
|
90119-06141 |
— | ||
| replacement | |||||
|
9011906141
|
9011906141
91651-40628 New Genuine Part |
91651-40628 |
US $0.61 |
||
|
9046024039
|
9046024039
90460-24039 Clamp Or Clip, Hose(For Oil Cooler Hose) |
90460-24039 |
US $1.54 |
||
| replacement | |||||
|
9046024039
|
9046024039
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.89 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.75 |
||
