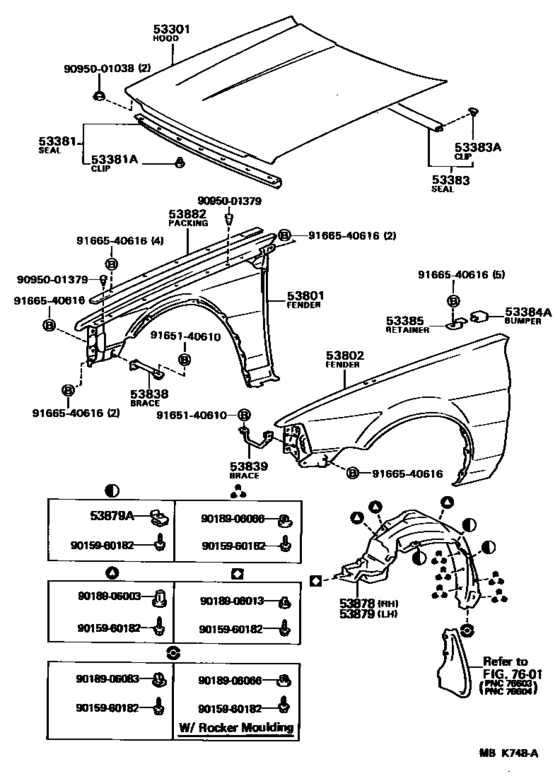

Hood & Front Fender ([09.1986 - ] (8609- )) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-02010
Hood Sub-Assy
[09.1986 - 08.1988] AE82 |
53301-02010 |
— | ||
|
53381
|
53381
53381-01010
Seal, Hood To Radiator Support
[09.1986 - 08.1988] AE82 |
53381-01010 |
— | ||
|
53381A
|
53381A
90080-46010
Clip(For Hood To Radiator Support Seal)
[09.1986 - 08.1988] AE82 |
90080-46010 |
— | ||
|
53383
|
53383
53383-12060 Seal, Hood To Cowl TopHOOD TO COWL TOP [09.1986 - 08.1988] AE82 |
53383-12060 |
US $19.95 |
||
|
53383A
|
53383A
90467-08030 Clip(For Hood To Cowl Top Seal)[09.1986 - 08.1988] AE82 |
90467-08030 |
US $2.72 |
||
|
53384A
|
53384A
53384-14030 Bumper, Fender To Hood[09.1986 - 08.1988] AE82 |
53384-14030 |
US $4.80 |
||
|
53385
|
53385
53385-14010 Retainer, Hood, Bumper[09.1986 - 08.1988] AE82 RH |
53385-14010 |
US $4.32 |
||
|
53385
|
53385
53386-14010 Retainer, Hood, Bumper[09.1986 - 08.1988] AE82 LH |
53386-14010 |
US $4.32 |
||
|
53801
|
53801
53801-02011
Fender Sub-Assy, Front Rh
[09.1986 - 08.1988] AE82 |
53801-02011 |
— | ||
|
53802
|
53802
53802-02011 Fender Sub-Assy, Front LhFRONT LH [09.1986 - 08.1988] AE82 |
53802-02011 |
US $500.86 |
||
|
53838
|
53838
53835-12040
Brace, Front Fender, Rh
[09.1986 - 08.1988] AE82 |
53835-12040 |
— | ||
|
53839
|
53839
53836-12021
Brace, Front Fender, Lh
[09.1986 - 08.1988] AE82 |
53836-12021 |
— | ||
|
53878
|
53878
53875-02010
Liner, Front Fender, Rh
[09.1986 - 08.1988] AE82 |
53875-02010 |
— | ||
|
53879
|
53879
53876-02010
Liner, Front Fender, Lh
[09.1986 - 08.1988] AE82 |
53876-02010 |
— | ||
|
53879A
|
53879A
53879-14010 Retainer, Front Fender Liner[09.1986 - 08.1988] AE82 |
53879-14010 |
from US $2.91 |
||
|
53882
|
53882
53882-12070
Packing, Front Fender Main
[09.1986 - 08.1988] AE82 |
53882-12070 |
— | ||
|
9015960182
|
9015960182
90159-60182 SCREW |
90159-60182 |
from US $1.19 |
||
|
9018906003
|
9018906003
90189-06003
New Genuine Part
|
90189-06003 |
— | ||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.76 |
||
|
9018906066
|
9018906066
90189-06066 CLIP |
90189-06066 |
from US $0.76 |
||
|
9018906083
|
9018906083
90189-06083 New Genuine Part |
90189-06083 |
US $1.60 |
||
|
9095001038
|
9095001038
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.32 |
||
|
9095001379
|
9095001379
90950-01379 New Genuine Part |
90950-01379 |
US $4 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9166540616
|
9166540616
91665-40616 Screw(For Steering Column Tube) |
91665-40616 |
US $1.12 |
||
| replacement | |||||
|
9166540616
|
9166540616
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
