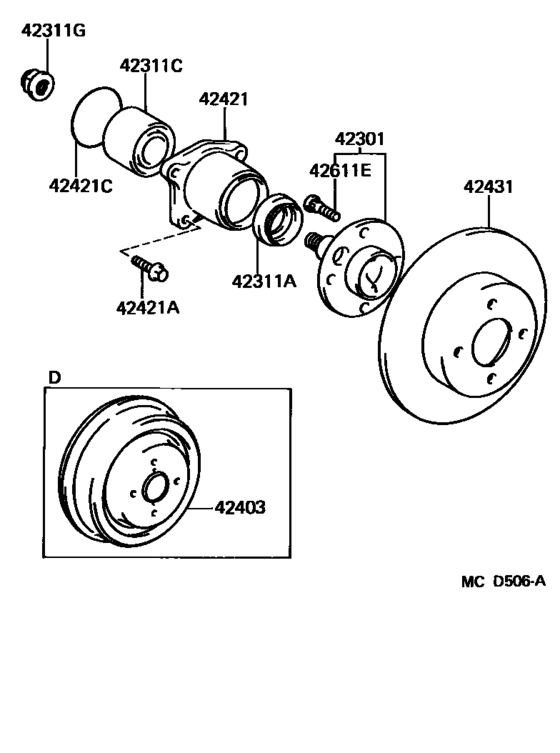

Rear Axle Shaft & Hub ([09.1986 - ] (8609- )) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42301
|
42301
42301-12120 Shaft, Rear AxleREAR AXLE [02.1987 - 08.1988] AE82..D |
42301-12120 |
US $186.37 |
||
|
42311A
|
42311A
90311-41003 Seal, Oil (For Rear Axle Shaft)[02.1987 - 08.1988] AE82..D |
90311-41003 |
US $4.37 |
||
|
42311C
|
42311C
90369-28006 Bearing (For Axle Shaft)[09.1986 - 08.1988] AE82 |
90369-28006 |
US $93.24 |
||
|
42311G
|
42311G
90179-20003 Nut (For Rear Axle Shaft)[09.1986 - 08.1988] AE82 |
90179-20003 |
US $8.16 |
||
|
42403
|
42403
42431-20070 Drum Sub-Assy, Rear Brake[02.1987 - 08.1988] AE82..D |
42431-20070 |
US $144.14 |
||
|
42421
|
42421
42421-12010
Case, Rear Axle Bearing
[02.1987 - 08.1988] AE82..D |
42421-12010 |
— | ||
|
42421A
|
42421A
90105-10124 Bolt (For Axle Bearing)[09.1986 - 08.1988] AE82 |
90105-10124 |
from US $2.50 |
||
|
42421C
|
42421C
90301-61002 Ring, O (For Axle Bearing)[09.1986 - 08.1988] AE82 |
90301-61002 |
from US $2.96 |
||
|
42611E
|
42611E
90942-02047 Bolt, Hub[09.1986 - 08.1988] AE82 |
90942-02047 |
from US $3.68 |
