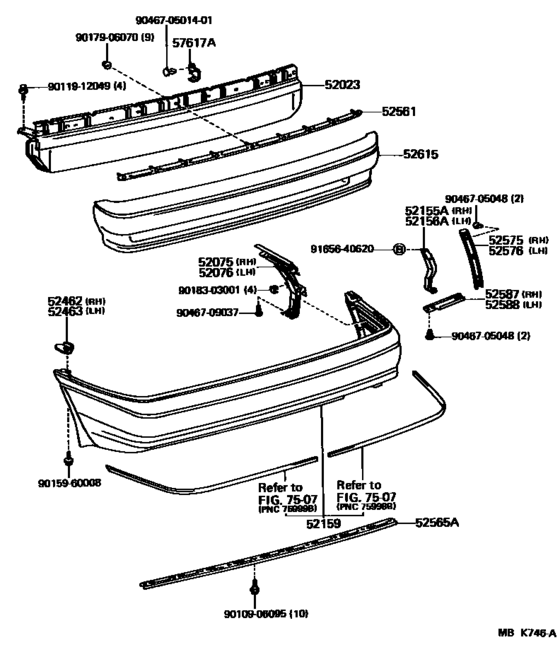

Rear Bumper & Bumper Stay ([09.1986 - ] (8609- )) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52023
|
52023
52023-02010
Reinforcement Sub-Assy, Rear Bumper
[09.1986 - 08.1988] AE82 |
52023-02010 |
— | ||
| replacement | |||||
|
52023
|
52023
52023-02011
Reinforcement Sub-Assy, Rear Bumper
[09.1986 - 08.1988] AE82 |
52023-02011 |
— | ||
|
52075
|
52075
52075-02010
Retainer Sub-Assy, Rear Bumper Side, Rh
[09.1986 - 08.1988] AE82 |
52075-02010 |
— | ||
|
52076
|
52076
52076-02010
Retainer Sub-Assy, Rear Bumper Side, Lh
[09.1986 - 08.1988] AE82 |
52076-02010 |
— | ||
|
52155A
|
52155A
52155-02010
Support, Rear Bumper Side, Rh
[09.1986 - 08.1988] AE82 |
52155-02010 |
— | ||
|
52156A
|
52156A
52156-02010
Support, Rear Bumper Side, Lh
[09.1986 - 08.1988] AE82 |
52156-02010 |
— | ||
|
52159
|
52159
52159-02010-D3
Cover, Rear Bumper
[09.1986 - 08.1988] AE82 BLACK,BLACK |
52159-02010-D3 |
— | ||
|
52159
|
52159
52159-02900
Cover, Rear Bumper
[08.1987 - 08.1988] AE82..D,GTS TREATED FOR PAINTIN |
52159-02900 |
— | ||
|
52462
|
52462
52462-02010
Pad, Rear Bumper, Rh
[09.1986 - 08.1988] AE82 |
52462-02010 |
— | ||
|
52463
|
52463
52463-02010
Pad, Rear Bumper, Lh
[09.1986 - 08.1988] AE82 |
52463-02010 |
— | ||
|
52561
|
52561
52561-02010
Retainer, Rear Bumper, Upper Center
[09.1986 - 08.1988] AE82 |
52561-02010 |
— | ||
|
52565A
|
52565A
52565-02010
Retainer, Rear Bumper, Lower
[09.1986 - 08.1988] AE82 |
52565-02010 |
— | ||
|
52575
|
52575
52575-02010
Retainer, Rear Bumper Side, Rh
[09.1986 - 08.1988] AE82 |
52575-02010 |
— | ||
|
52576
|
52576
52575-02010
Retainer, Rear Bumper Side, Rh
[09.1986 - 08.1988] AE82 |
52575-02010 |
— | ||
|
52587
|
52587
52587-02010
Retainer, Rear Bumper End, Rh
[09.1986 - 08.1988] AE82 |
52587-02010 |
— | ||
|
52588
|
52588
52588-02010
Retainer, Rear Bumper End, Lh
[09.1986 - 08.1988] AE82 |
52588-02010 |
— | ||
|
52615
|
52615
52615-02010
Absorber, Rear Bumper Energy
[09.1986 - 08.1988] AE82 |
52615-02010 |
— | ||
|
57617A
|
57617A
57617-02010
Retainer, Exhaust Pipe Bracket
[09.1986 - 08.1988] AE82 |
57617-02010 |
— | ||
|
9010906095
|
9010906095
90109-06095
New Genuine Part
|
90109-06095 |
— | ||
|
9011912049
|
9011912049
90119-12049 New Genuine Part |
90119-12049 |
US $3.64 |
||
|
9015960008
|
9015960008
90159-60008 SCREW |
90159-60008 |
US $1.12 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9018303001
|
9018303001
90183-03001
New Genuine Part
|
90183-03001 |
— | ||
| replacement | |||||
|
9018303001
|
9018303001
90468-04038 CLIP |
90468-04038 |
US $1.49 |
||
|
9046705048
|
9046705048
90467-05048 CLIP |
90467-05048 |
US $2.08 |
||
|
9046709037
|
9046709037
90467-09037 CLIP |
90467-09037 |
from US $1.92 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
|
904670501401
|
904670501401
90467-05014-01
Clip (For Center Pillar Rear Garnish)
|
90467-05014-01 |
— | ||
| replacement | |||||
|
904670501401
|
904670501401
90467-05014-22 Clip |
90467-05014-22 |
US $0.96 |
||
