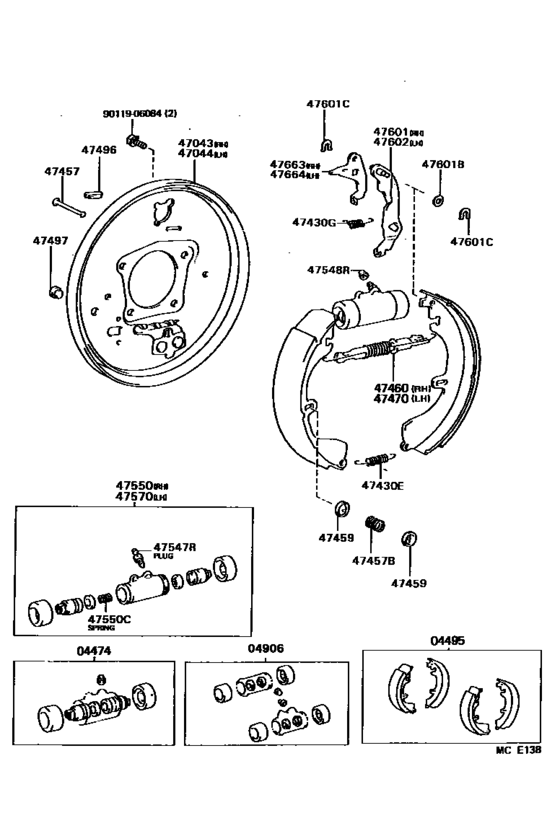

Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1987 - ] (8702- )D) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04474
|
04474
04474-16020 Cylinder Kit, Rear Wheel[02.1987 - 08.1988] AE82..D |
04474-16020 |
US $26.03 |
||
|
04495
|
04495
04495-01030
Shoe Kit, Rear Brake
[02.1987 - 08.1988] AE82..D |
04495-01030 |
— | ||
| replacement | |||||
|
04495
|
04495
04495-12210 Shoe Kit, Rear Brake[02.1987 - 08.1988] AE82..D |
04495-12210 |
from US $51.93 |
||
|
04906
|
04906
04906-16020 Cup Kit, Rear Wheel Cylinder[02.1987 - 08.1988] AE82..D |
04906-16020 |
from US $16.87 |
||
|
47043
|
47043
47043-12070 Plate Sub-Assy, Brake Backing, Rear Rh[02.1987 - 08.1988] AE82..D |
47043-12070 |
US $58.36 |
||
|
47044
|
47044
47044-12070 Plate Sub-Assy, Brake Backing, Rear Lh[02.1987 - 08.1988] AE82..D |
47044-12070 |
from US $58.36 |
||
|
47430E
|
47430E
90506-18034 Spring, Tension(For Rear Brake Shoe Return)[02.1987 - 08.1988] AE82..D |
90506-18034 |
from US $3.32 |
||
|
47430G
|
47430G
90506-12036 Spring, Tension(For Rear Brake Shoe Return)[02.1987 - 08.1988] AE82..D |
90506-12036 |
US $4.16 |
||
|
47457
|
47457
47447-30010 Pin, Shoe Hold Down Spring[02.1987 - 08.1988] AE82..D |
47447-30010 |
US $3.68 |
||
|
47457B
|
47457B
90501-18017 Spring(For Front Brake Shoe Hold Down)[02.1987 - 08.1988] AE82..D |
90501-18017 |
from US $2.03 |
||
|
47459
|
47459
47449-30030 Cup, Brake Shoe Hold Down[02.1987 - 08.1988] AE82..D |
47449-30030 |
from US $1.64 |
||
|
47460
|
47460
47061-32010
Strut Set, Parking Brake Shoe, Rh
[02.1987 - 08.1988] AE82..D |
47061-32010 |
— | ||
| replacement | |||||
|
47460
|
47460
47061-20020 Strut Set, Parking Brake Shoe, Rh[02.1987 - 08.1988] AE82..D |
47061-20020 |
from US $28.48 |
||
|
47470
|
47470
47062-32010
Strut Set, Parking Brake Shoe, Lh
[02.1987 - 08.1988] AE82..D |
47062-32010 |
— | ||
| replacement | |||||
|
47470
|
47470
47062-20020
Strut Set, Parking Brake Shoe, Lh
[02.1987 - 08.1988] AE82..D |
47062-20020 |
— | ||
|
47496
|
47496
47491-20011 Plug, Hole(For Rear Brake)[02.1987 - 08.1988] AE82..D |
47491-20011 |
from US $2.24 |
||
|
47497
|
47497
47492-32010 Plug, Shoe Inspection(For Rear Brake)[02.1987 - 08.1988] AE82..D |
47492-32010 |
from US $1.66 |
||
|
47547R
|
47547R
47547-20010 Plug, Bleeder(For Release Cylinder)[02.1987 - 08.1988] AE82..D |
47547-20010 |
from US $3.20 |
||
|
47548R
|
47548R
31478-30010 Bleeder Plug Cap[02.1987 - 08.1988] AE82..D |
31478-30010 |
from US $1.66 |
||
|
47550
|
47550
47550-16030
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
[02.1987 - 08.1988] AE82..D |
47550-16030 |
— | ||
| replacement | |||||
|
47550
|
47550
47550-20120 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[02.1987 - 08.1988] AE82..D |
47550-20120 |
US $64.82 |
||
|
47550C
|
47550C
90501-07006 Spring, Compression(For Rear Wheel Brake Cylinder)[02.1987 - 08.1988] AE82..D |
90501-07006 |
US $2.62 |
||
| replacement | |||||
|
47550C
|
47550C
90029-60014 Spring, Compression(For Rear Wheel Brake Cylinder)[02.1987 - 08.1988] AE82..D |
90029-60014 |
US $1.60 |
||
|
47570
|
47570
47570-16010
Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
[02.1987 - 08.1988] AE82..D |
47570-16010 |
— | ||
| replacement | |||||
|
47570
|
47570
47570-20030
Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
[02.1987 - 08.1988] AE82..D |
47570-20030 |
— | ||
|
47601
|
47601
47601-32010 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)[02.1987 - 08.1988] AE82..D |
47601-32010 |
from US $9.62 |
||
|
47601B
|
47601B
90564-08150 Shim, Rear Parking Brake Shoe Lever[02.1987 - 08.1988] AE82..D T=0.3,T=0.3 |
90564-08150 |
US $2.72 |
||
|
47601B
|
47601B
90564-08151 Shim, Rear Parking Brake Shoe Lever[02.1987 - 08.1988] AE82..D T=0.6,T=0.6 |
90564-08151 |
US $1.49 |
||
|
47601B
|
47601B
90564-08152 Shim, Rear Parking Brake Shoe Lever[02.1987 - 08.1988] AE82..D T=0.9,T=0.9 |
90564-08152 |
US $2.18 |
||
|
47601B
|
47601B
90564-08172 Shim, Rear Parking Brake Shoe Lever[02.1987 - 08.1988] AE82..D T=0.2,T=0.2 |
90564-08172 |
US $2.48 |
||
|
47601B
|
47601B
90564-08173 Shim, Rear Parking Brake Shoe Lever[02.1987 - 08.1988] AE82..D T=0.4,T=0.4 |
90564-08173 |
US $2.18 |
||
|
47601B
|
47601B
90564-08174 Shim, Rear Parking Brake Shoe Lever[02.1987 - 08.1988] AE82..D T=0.5,T=0.5 |
90564-08174 |
US $2.18 |
||
|
47601C
|
47601C
90213-06013 Washer, Type C(For Parking Brake Shoe)[02.1987 - 08.1988] AE82..D T=1.2 |
90213-06013 |
from US $0.76 |
||
|
47602
|
47602
47602-32010
Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)
[02.1987 - 08.1988] AE82..D |
47602-32010 |
— | ||
|
47663
|
47663
47643-32010 Lever, Rear Brake Automatic Adjust, Rh[02.1987 - 08.1988] AE82..D |
47643-32010 |
US $5.68 |
||
|
47664
|
47664
47644-32010 Lever, Rear Brake Automatic Adjust, Lh[02.1987 - 08.1988] AE82..D |
47644-32010 |
from US $4.86 |
||
|
9011906084
|
9011906084
90119-06084 Bolt(For Rear Wheel Cylinder) |
90119-06084 |
from US $1.05 |
||
