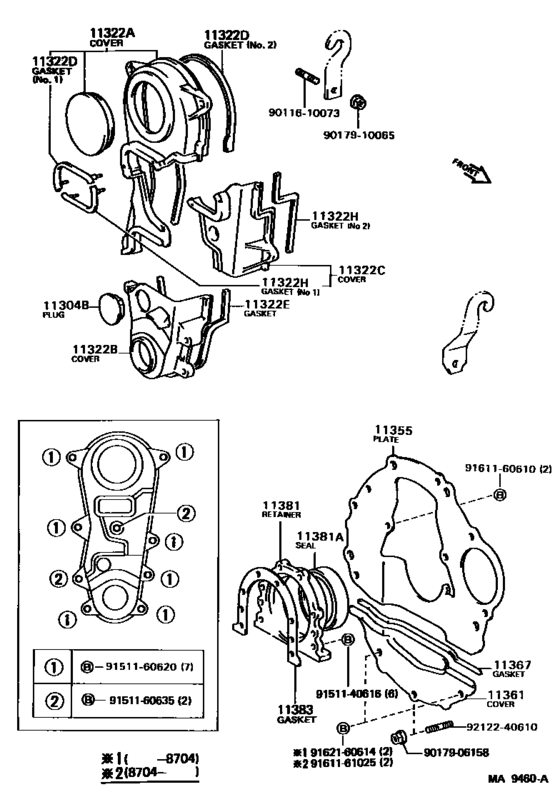

Timing Gear Cover & Rear End Plate ([02.1987 - ] (8702- )4ALC) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11304B
|
11304B
90950-01391 Plug, Hole[02.1987 - 08.1988] 4ALC..AE82 |
90950-01391 |
US $3.14 |
||
|
11322A
|
11322A
11302-15031
Cover, Timing Belt, No.1
[02.1987 - 08.1988] 4ALC..AE82 |
11302-15031 |
— | ||
|
11322B
|
11322B
11303-15031
Cover, Timing Belt, No.2
[02.1987 - 08.1988] 4ALC..AE82 |
11303-15031 |
— | ||
|
11322C
|
11322C
11304-15010
Cover, Timing Belt, No.3
[02.1987 - 08.1988] 4ALC..AE82 |
11304-15010 |
— | ||
|
11322D
|
11322D
11328-15030
Gasket, Timing Belt Cover, No.1
[02.1987 - 08.1988] 4ALC..AE82 NO.2 |
11328-15030 |
— | ||
|
11322D
|
11322D
11346-15010 Gasket, Timing Belt Cover, No.1[02.1987 - 08.1988] 4ALC..AE82 NO.1 |
11346-15010 |
US $11.36 |
||
|
11322E
|
11322E
11329-15030
Gasket, Timing Belt Cover, No.2
[02.1987 - 08.1988] 4ALC..AE82 |
11329-15030 |
— | ||
|
11322H
|
11322H
11319-15010
Gasket, Timing Belt Cover, No.3
[02.1987 - 08.1988] 4ALC..AE82 NO.2 |
11319-15010 |
— | ||
|
11322H
|
11322H
11346-15010 Gasket, Timing Belt Cover, No.1[02.1987 - 08.1988] 4ALC..AE82 NO.1 |
11346-15010 |
US $11.36 |
||
|
11355
|
11355
11355-15060 Plate, Rear End[09.1986 - 08.1988] 4A#..AE82 |
11355-15060 |
US $50.67 |
||
|
11361
|
11361
11361-01020
Cover, Flywheel Housing Under
[06.1987 - 08.1988] 4A#..AE82 |
11361-01020 |
— | ||
|
11361
|
11361
11361-15021
Cover, Flywheel Housing Under
[09.1986 - 03.1987] 4A#..AE82 |
11361-15021 |
— | ||
| replacement | |||||
|
11361
|
11361
11361-16040
Cover, Flywheel Housing Under
[09.1986 - 03.1987] 4A#..AE82 |
11361-16040 |
— | ||
|
11361
|
11361
11361-16020
Cover, Flywheel Housing Under
[03.1987 - 05.1987] 4ALC..AE82 |
11361-16020 |
— | ||
| replacement | |||||
|
11361
|
11361
11361-16040
Cover, Flywheel Housing Under
[03.1987 - 05.1987] 4ALC..AE82 |
11361-16040 |
— | ||
|
11361
|
11361
11361-16040
Cover, Flywheel Housing Under
[05.1987 - 06.1987] 4ALC..AE82 |
11361-16040 |
— | ||
|
11367
|
11367
11367-15030
Gasket, Flywheel Housing Under
[09.1986 - 08.1988] 4A#..AE82 |
11367-15030 |
— | ||
|
11381
|
11381
11381-15010 Retainer, Engine Rear Oil Seal[09.1986 - 08.1988] 4A#..AE82 |
11381-15010 |
US $55.56 |
||
|
11381A
|
11381A
90311-70004
Seal, Engine Rear Oil
[09.1986 - 08.1988] 4A#..AE82 |
90311-70004 |
— | ||
| replacement | |||||
|
11381A
|
11381A
90311-70007 Seal, Engine Rear Oil[09.1986 - 08.1988] 4A#..AE82 |
90311-70007 |
from US $16.42 |
||
|
11383
|
11383
11383-15010
Gasket, Engine Rear Oil Seal Retainer
[09.1986 - 08.1988] 4A#..AE82 |
11383-15010 |
— | ||
| replacement | |||||
|
11383
|
11383
11383-16010 Gasket, Engine Rear Oil Seal Retainer[09.1986 - 08.1988] 4A#..AE82 |
11383-16010 |
from US $3.94 |
||
|
9011610073
|
9011610073
90116-10073 New Genuine Part |
90116-10073 |
from US $1.29 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.44 |
||
|
9151140616
|
9151140616
91511-40616 New Genuine Part |
91511-40616 |
US $1.92 |
||
|
9151160620
|
9151160620
91511-60620
Bolt(For Clutch Release Bearing Hub Retainer)
|
91511-60620 |
— | ||
| replacement | |||||
|
9151160620
|
9151160620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.76 |
||
|
9151160635
|
9151160635
91511-60635 Bolt |
91511-60635 |
US $1.92 |
||
| replacement | |||||
|
9151160635
|
9151160635
90080-10195 Bolt |
90080-10195 |
US $3.72 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9212240610
|
9212240610
92122-40610 Bolt, Stud(For Manifold To Carburetor) |
92122-40610 |
US $2.08 |
||
