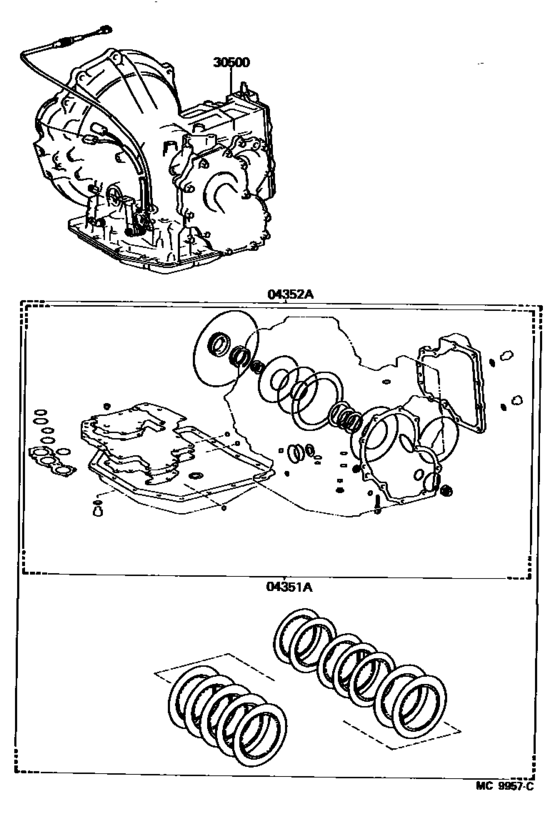

Transaxle Or Transmission Assy & Gasket Kit (Atm) ([02.1987 - ] (8702- )ATM..D) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04351A
|
04351A
04351-02020
Gasket Kit, Transaxle Overhaul(Atm)
[02.1987 - 08.1988] AE82..ATM..D |
04351-02020 |
— | ||
|
04352A
|
04352A
04352-02020
Kit, Transaxle Overhaul(Atm)
[02.1987 - 08.1988] AE82..ATM..D |
04352-02020 |
— | ||
|
30500
|
30500
30500-01020
Transaxle Assy, Automatic
[02.1987 - 04.1987] AE82..ATM..D |
30500-01020 |
— | ||
| replacements | |||||
|
30500
|
30500
91612-61025 Bolt (For Control Shaft Cover)[02.1987 - 04.1987] AE82..ATM..D |
91612-61025 |
from US $1.13 |
||
|
30500
|
30500
30500-01022 Transaxle Assy, Automatic[02.1987 - 04.1987] AE82..ATM..D |
30500-01022 |
US $6,537.44 |
||
|
30500
|
30500
11361-01020
Cover, Flywheel Housing Under
[02.1987 - 04.1987] AE82..ATM..D |
11361-01020 |
— | ||
|
30500
|
30500
30500-01021 Transaxle Assy, Automatic[04.1987 - 08.1988] AE82..ATM..D |
30500-01021 |
US $6,537.44 |
||
| replacement | |||||
|
30500
|
30500
30500-01022 Transaxle Assy, Automatic[04.1987 - 08.1988] AE82..ATM..D |
30500-01022 |
US $6,537.44 |
||
