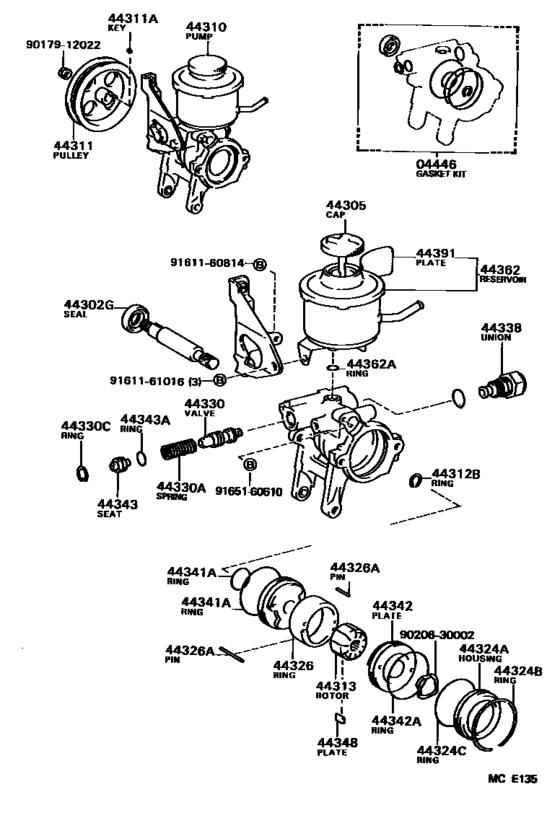

Vane Pump & Reservoir (Power Steering) ([02.1987 - ] (8702- )D) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-01010
Gasket Kit, Power Steering Pump
[02.1987 - 08.1988] AE82..D |
04446-01010 |
— | ||
| replacement | |||||
|
04446
|
04446
04446-27011 Gasket Kit, Power Steering Pump[02.1987 - 08.1988] AE82..D |
04446-27011 |
from US $35.57 |
||
|
44302G
|
44302G
90311-18007 Seal, Oil, No.2(For Vane Pump Housing)[09.1986 - 08.1988] AE82 |
90311-18007 |
from US $3.84 |
||
|
44305
|
44305
44305-30020
Cap Sub-Assy, Vane Pump Oil Reservoir
[02.1987 - 08.1988] AE82..D |
44305-30020 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-22061 Cap Sub-Assy, Vane Pump Oil Reservoir[02.1987 - 08.1988] AE82..D |
44305-22061 |
from US $18.85 |
||
|
44310
|
44310
44320-12061 Pump Assy, VaneVANE [02.1987 - 08.1988] AE82..D |
44320-12061 |
US $1,259.44 |
||
| replacement | |||||
|
44310
|
44310
44320-12062 Pump Assy, VaneVANE [02.1987 - 08.1988] AE82..D |
44320-12062 |
US $1,259.44 |
||
|
44311
|
44311
44311-12040
Pulley, Vane Pump
[02.1987 - 08.1988] AE82..D |
44311-12040 |
— | ||
|
44311A
|
44311A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[09.1986 - 08.1988] AE82 |
90280-05008 |
US $3.52 |
||
|
44312B
|
44312B
90520-10003 Ring, Snap, No.1(For Vane Pump Shaft)[09.1986 - 08.1988] AE82 |
90520-10003 |
US $1.22 |
||
|
44313
|
44313
44313-12010
Rotor, Vane Pump
[09.1986 - 08.1988] AE82 NO MARK,NO MARK |
44313-12010 |
— | ||
| replacement | |||||
|
44313
|
44313
44313-22040 Rotor, Vane Pump[09.1986 - 08.1988] AE82 NO MARK,NO MARK |
44313-22040 |
US $108.33 |
||
|
44313
|
44313
44313-12020
Rotor, Vane Pump
[09.1986 - 08.1988] AE82 MARK 1,MARK 1 |
44313-12020 |
— | ||
| replacement | |||||
|
44313
|
44313
44313-22050 Rotor, Vane Pump[09.1986 - 08.1988] AE82 MARK 1,MARK 1 |
44313-22050 |
US $101.34 |
||
|
44313
|
44313
44313-12030 Rotor, Vane Pump[09.1986 - 08.1988] AE82 MARK 2,MARK 2 |
44313-12030 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22060 Rotor, Vane Pump[09.1986 - 08.1988] AE82 MARK 2,MARK 2 |
44313-22060 |
US $103.38 |
||
|
44313
|
44313
44313-12040 Rotor, Vane Pump[09.1986 - 08.1988] AE82 MARK 3,MARK 3 |
44313-12040 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22070 Rotor, Vane Pump[09.1986 - 08.1988] AE82 MARK 3,MARK 3 |
44313-22070 |
US $103.38 |
||
|
44313
|
44313
44313-12050 Rotor, Vane Pump[09.1986 - 08.1988] AE82 MARK 4,MARK 4 |
44313-12050 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22080 Rotor, Vane Pump[09.1986 - 08.1988] AE82 MARK 4,MARK 4 |
44313-22080 |
US $103.38 |
||
|
44324A
|
44324A
44324-12031 Housing Sub-Assy, Vane Pump, Rear[09.1986 - 08.1988] AE82 |
44324-12031 |
US $81.54 |
||
|
44324B
|
44324B
90521-62002 Ring, Snap, No.1(For Vane Pump Housing)[09.1986 - 08.1988] AE82 |
90521-62002 |
US $3.14 |
||
|
44324C
|
44324C
90301-52001 Ring, O(For Pump Housing Rear)[09.1986 - 08.1988] AE82 |
90301-52001 |
from US $3.26 |
||
|
44326
|
44326
44325-12110 Ring, Fixed(For Vane Pump)[09.1986 - 08.1988] AE82 NO MARK,NO MARK |
44325-12110 |
US $117.94 |
||
|
44326
|
44326
44325-12120 Ring, Fixed(For Vane Pump)[09.1986 - 08.1988] AE82 MARK 1,MARK 1 |
44325-12120 |
US $117.94 |
||
|
44326
|
44326
44325-12130 Ring, Fixed(For Vane Pump)[09.1986 - 08.1988] AE82 MARK 2,MARK 2 |
44325-12130 |
US $117.94 |
||
|
44326
|
44326
44325-12140 Ring, Fixed(For Vane Pump)[09.1986 - 08.1988] AE82 MARK 3,MARK 3 |
44325-12140 |
US $117.94 |
||
|
44326
|
44326
44325-12150 Ring, Fixed(For Vane Pump)[09.1986 - 08.1988] AE82 MARK 4,MARK 4 |
44325-12150 |
US $117.94 |
||
|
44326A
|
44326A
90250-04047 Pin, Straight(For Vane Pump Cam Ring)[09.1986 - 08.1988] AE82 L=28,OD=4.0,L=28 |
90250-04047 |
US $1.05 |
||
|
44326A
|
44326A
90250-04049 Pin, Straight(For Vane Pump Cam Ring)[09.1986 - 08.1988] AE82 L=43,OD=4.0,L=43 |
90250-04049 |
US $2.62 |
||
|
44330
|
44330
44330-14010
Valve Assy, Flow Control
[09.1986 - 08.1988] AE82 MARK A,MARK A |
44330-14010 |
— | ||
| replacement | |||||
|
44330
|
44330
44330-35191 Valve Assy, Flow Control[09.1986 - 08.1988] AE82 MARK A,MARK A |
44330-35191 |
US $116.48 |
||
|
44330
|
44330
44330-14020 Valve Assy, Flow Control[09.1986 - 08.1988] AE82 MARK B,MARK B |
44330-14020 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-35201 Valve Assy, Flow Control[09.1986 - 08.1988] AE82 MARK B,MARK B |
44330-35201 |
US $116.48 |
||
|
44330
|
44330
44330-14030 Valve Assy, Flow Control[09.1986 - 08.1988] AE82 MARK C,MARK C |
44330-14030 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-35211 Valve Assy, Flow Control[09.1986 - 08.1988] AE82 MARK C,MARK C |
44330-35211 |
US $116.48 |
||
|
44330
|
44330
44330-14040 Valve Assy, Flow Control[09.1986 - 08.1988] AE82 MARK D,MARK D |
44330-14040 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-35221 Valve Assy, Flow Control[09.1986 - 08.1988] AE82 MARK D,MARK D |
44330-35221 |
US $116.48 |
||
|
44330
|
44330
44330-14050 Valve Assy, Flow Control[09.1986 - 08.1988] AE82 MARK E,MARK E |
44330-14050 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-35231 Valve Assy, Flow Control[09.1986 - 08.1988] AE82 MARK E,MARK E |
44330-35231 |
US $116.48 |
||
|
44330
|
44330
44330-14060 Valve Assy, Flow Control[09.1986 - 08.1988] AE82 MARK F,MARK F |
44330-14060 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-35241 Valve Assy, Flow Control[09.1986 - 08.1988] AE82 MARK F,MARK F |
44330-35241 |
US $116.48 |
||
|
44330A
|
44330A
90501-12103 Spring, Compression(For Flow Control Valve)[09.1986 - 08.1988] AE82 |
90501-12103 |
US $2.56 |
||
|
44330C
|
44330C
96151-01700 Ring, Snap(For Flow Control Valve)[09.1986 - 08.1988] AE82 |
96151-01700 |
US $3.67 |
||
|
44338
|
44338
44308-12042 Union Sub-Assy, Pressure Port[09.1986 - 08.1988] AE82 |
44308-12042 |
US $94.64 |
||
|
44341A
|
44341A
90301-25001
Ring, O(For Vane Pump Front Side Plate)
[09.1986 - 08.1988] AE82 INNER |
90301-25001 |
— | ||
| replacement | |||||
|
44341A
|
44341A
90301-25008 Ring, O(For Vane Pump Front Side Plate)[09.1986 - 08.1988] AE82 INNER |
90301-25008 |
US $4.19 |
||
|
44341A
|
44341A
90301-52001 Ring, O(For Pump Housing Rear)[09.1986 - 08.1988] AE82 OUTER |
90301-52001 |
from US $3.26 |
||
|
44342
|
44342
44342-12021 Plate, Vane Pump Side, Rear[09.1986 - 08.1988] AE82 |
44342-12021 |
US $45.14 |
||
| replacement | |||||
|
44342
|
44342
44342-32010 Plate, Vane Pump Side, Rear[09.1986 - 08.1988] AE82 |
44342-32010 |
US $55.91 |
||
|
44342A
|
44342A
90301-52001 Ring, O(For Pump Housing Rear)[09.1986 - 08.1988] AE82 |
90301-52001 |
from US $3.26 |
||
|
44343
|
44343
44343-12010
Seat, Flow Control Spring
[09.1986 - 08.1988] AE82 |
44343-12010 |
— | ||
|
44343A
|
44343A
96711-19014 O-Ring[09.1986 - 08.1988] AE82 |
96711-19014 |
from US $2.34 |
||
|
44348
|
44348
44345-12010 Plate, Vane Pump[09.1986 - 08.1988] AE82 L=14.997,L=14.996-14.998,ROTOR NO MARK |
44345-12010 |
US $10.56 |
||
|
44348
|
44348
44345-12020 Plate, Vane Pump[09.1986 - 08.1988] AE82 L=14.995,L=14.994-14.996,ROTOR MARK 1 |
44345-12020 |
US $6.12 |
||
|
44348
|
44348
44345-12030 Plate, Vane Pump[09.1986 - 08.1988] AE82 L=14.993,L=14.992-14.994,ROTOR MARK 2 |
44345-12030 |
US $6.12 |
||
|
44348
|
44348
44345-12040 Plate, Vane Pump[09.1986 - 08.1988] AE82 L=14.991,L=14.990-14.992,ROTOR MARK 3 |
44345-12040 |
US $6.12 |
||
|
44348
|
44348
44345-12050 Plate, Vane Pump[09.1986 - 08.1988] AE82 L=14.989,L=14.988-14.990,ROTOR MARK 4 |
44345-12050 |
US $6.12 |
||
|
44362
|
44362
44306-12030 Reservoir, Oil(For Vane Pump)OIL(FOR VANE PUMP) [02.1987 - 08.1988] AE82..D |
44306-12030 |
US $135.41 |
||
|
44362A
|
44362A
90301-12003
Ring, O(For Power Steering Suction Port)
[02.1987 - 08.1988] AE82..D |
90301-12003 |
— | ||
| replacement | |||||
|
44362A
|
44362A
90301-11016 Ring, O(For Power Steering Suction Port)[02.1987 - 08.1988] AE82..D |
90301-11016 |
from US $2.24 |
||
|
44391
|
44391
44391-12020
Plate, Power Steering Oil Reservoir Caution
[02.1987 - 08.1988] AE82..D |
44391-12020 |
— | ||
|
9017912022
|
9017912022
90179-12022 Nut(For Vane Pump Pulley) |
90179-12022 |
from US $2.44 |
||
|
9020630002
|
9020630002
90206-30002 New Genuine Part |
90206-30002 |
US $4.80 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9161161016
|
9161161016
91611-61016
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-61016 |
— | ||
| replacement | |||||
|
9161161016
|
9161161016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.24 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
from US $1.92 |
||
