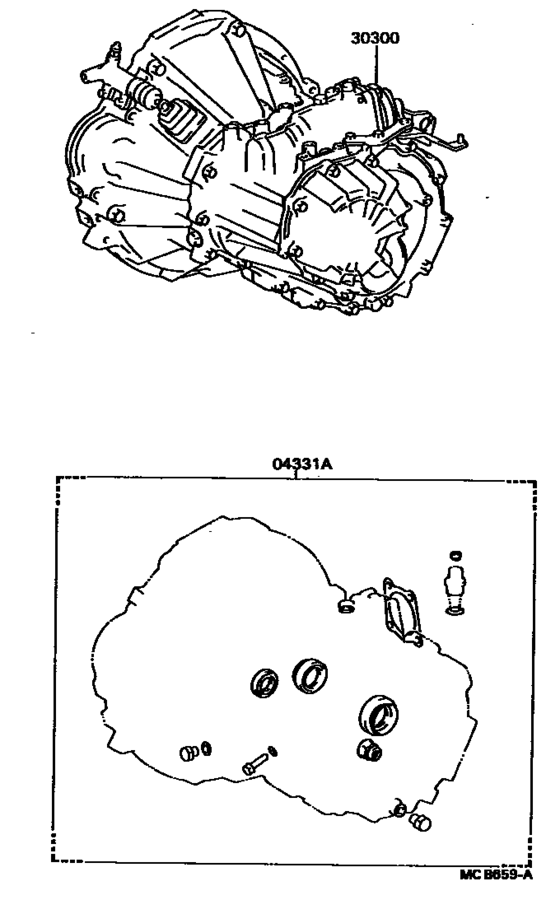

Transaxle Or Transmission Assy & Gasket Kit (Mtm) ([09.1986 - ] (8609- )MTM) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- D
- ENGINE
- 4ALC
- TRANSMISSION
- MTM
- Model
- COROLLA FX
- From
- 02.1987
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04331A
|
04331A
04331-01010
Gasket Kit, Transaxle Overhaul(Mtm)
[09.1986 - 08.1988] AE82..MTM |
04331-01010 |
— | ||
| replacement | |||||
|
04331A
|
04331A
04331-12080 Gasket Kit, Transaxle Overhaul(Mtm)[09.1986 - 08.1988] AE82..MTM |
04331-12080 |
from US $28.04 |
||
|
30300
|
30300
30300-12080 Transaxle Assy, Manual[02.1987 - 04.1987] AE82..MTM..D |
30300-12080 |
US $3,712.80 |
||
| replacements | |||||
|
30300
|
30300
11361-16040
Cover, Flywheel Housing Under
[02.1987 - 04.1987] AE82..MTM..D |
11361-16040 |
— | ||
|
30300
|
30300
11355-15060 Plate, Rear End[02.1987 - 04.1987] AE82..MTM..D |
11355-15060 |
US $50.67 |
||
|
30300
|
30300
91612-61025 Bolt (For Control Shaft Cover)[02.1987 - 04.1987] AE82..MTM..D |
91612-61025 |
from US $1.13 |
||
|
30300
|
30300
16268-15060
Pipe, Water By-Pass, No.1
[02.1987 - 04.1987] AE82..MTM..D |
16268-15060 |
— | ||
|
30300
|
30300
16322-15030
Pipe, Water Inlet
[02.1987 - 04.1987] AE82..MTM..D |
16322-15030 |
— | ||
|
30300
|
30300
30300-12082
Transaxle Assy, Manual
[02.1987 - 04.1987] AE82..MTM..D |
30300-12082 |
— | ||
|
30300
|
30300
30300-12082
Transaxle Assy, Manual
[04.1987 - 08.1988] AE82..MTM..D |
30300-12082 |
— | ||
