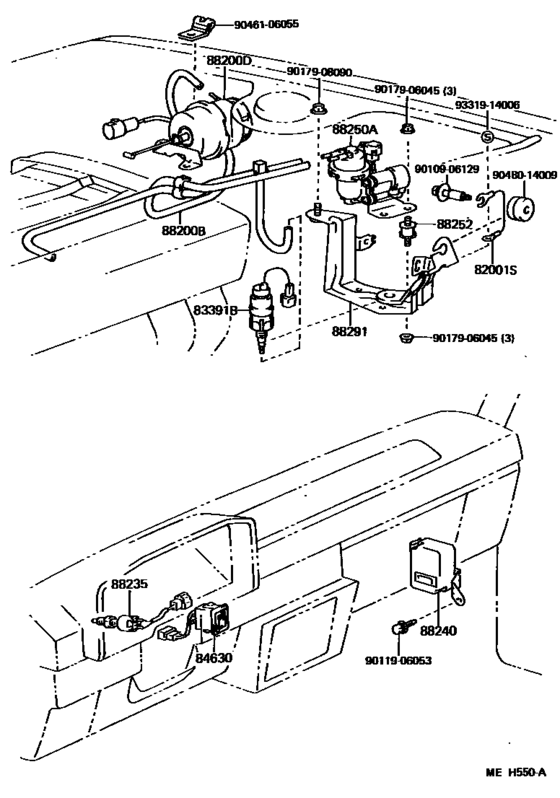

Cruise Control (Auto Drive) ([09.1986 - ] (8609- )GTS,Q) Diagram Toyota COROLLA
- Year
- 1986 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- GTS
- ENGINE
- 4AGELC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 09.1986
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001S
|
82001S
90980-07283 Cable, BondBOND [09.1986 - 08.1988] AE82..GTS,Q |
90980-07283 |
US $7.13 |
||
|
83391B
|
83391B
83391-14090 Switch, Auto Drive Vacuum[09.1986 - 08.1988] AE82..GTS,Q |
83391-14090 |
US $63.77 |
||
|
84630
|
84630
84630-32040 Switch Assy, Cruise Control MainCRUISE CONTROL MAIN [09.1986 - 08.1988] AE82..GTS,Q |
84630-32040 |
US $96.10 |
||
|
88200B
|
88200B
88283-02010
Hose, Cruise Control Vacuum
[09.1986 - 08.1988] AE82..GTS,Q |
88283-02010 |
— | ||
|
88200D
|
88200D
88200-02010
Actuator Assy, Cruise Control
[09.1986 - 01.1988] AE82..GTS,Q |
88200-02010 |
— | ||
| replacement | |||||
|
88200D
|
88200D
88200-02011
Actuator Assy, Cruise Control
[09.1986 - 01.1988] AE82..GTS,Q |
88200-02011 |
— | ||
|
88200D
|
88200D
88200-02011
Actuator Assy, Cruise Control
[01.1988 - 08.1988] AE82..GTS,Q |
88200-02011 |
— | ||
|
88240
|
88240
88240-02010
Computer Assy, Cruise Control
[09.1986 - 08.1988] AE82..GTS,Q |
88240-02010 |
— | ||
|
88250A
|
88250A
88251-02010
Pump Assy, Cruise Control
[09.1986 - 01.1988] AE82..GTS,Q |
88251-02010 |
— | ||
| replacement | |||||
|
88250A
|
88250A
88251-02011
Pump Assy, Cruise Control
[09.1986 - 01.1988] AE82..GTS,Q |
88251-02011 |
— | ||
|
88250A
|
88250A
88251-02011
Pump Assy, Cruise Control
[01.1988 - 08.1988] AE82..GTS,Q |
88251-02011 |
— | ||
|
88252
|
88252
88252-14110 Cushion, Vacuum Pump[09.1986 - 08.1988] AE82..GTS,Q |
88252-14110 |
US $3.20 |
||
| replacement | |||||
|
88252
|
88252
88252-26010 Cushion, Vacuum Pump[09.1986 - 08.1988] AE82..GTS,Q |
88252-26010 |
US $3.06 |
||
|
88291
|
88291
88291-02010
Bracket, Cruise Control(Auto Drive), No.1
[09.1986 - 08.1988] AE82..GTS,Q |
88291-02010 |
— | ||
|
9010906129
|
9010906129
90109-06129 New Genuine Part |
90109-06129 |
US $2.18 |
||
|
9011906053
|
9011906053
90119-06053 New Genuine Part |
90119-06053 |
US $0.96 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $1.92 |
||
|
9017908090
|
9017908090
90179-08090 Nut(For Front Suspension Support) |
90179-08090 |
US $3.20 |
||
|
9046106055
|
9046106055
90461-06055 Clamp, Brake Tube, No.1 |
90461-06055 |
US $3.14 |
||
|
9048014009
|
9048014009
90480-14009 New Genuine Part |
90480-14009 |
US $3.64 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
