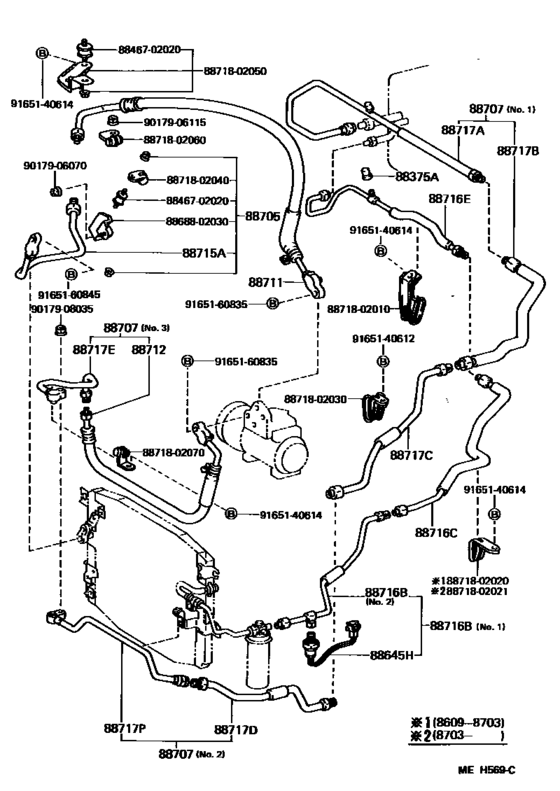

Heating & Air Conditioning - Cooler Piping ([09.1986 - ] (8609- )GTS,Q) Diagram Toyota COROLLA
- Year
- 1986 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- GTS
- ENGINE
- 4AGELC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 09.1986
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88375A
|
88375A
88375-01010
Cap, Cooler Compressor Service Valve
[09.1986 - 04.1987] AE82 |
88375-01010 |
— | ||
|
88375A
|
88375A
88375-01020
Cap, Service Valve (For Cooler Pipe)
[04.1987 - 08.1988] AE82 |
88375-01020 |
— | ||
|
88645H
|
88645H
88645-01021
Switch, Pressure No.1
[09.1986 - 08.1988] AE82 |
88645-01021 |
— | ||
|
88705
|
88705
88705-02010
Pipe Sub-Assy, Discharge
[09.1986 - 08.1988] AE82..GTS,Q |
88705-02010 |
— | ||
|
88707
|
88707
88704-02010
Pipe Sub-Assy, Suction
[09.1986 - 08.1988] AE82..GTS,Q NO.3 |
88704-02010 |
— | ||
|
88707
|
88707
88707-02010
Pipe Sub-Assy, Suction
[09.1986 - 08.1988] AE82..GTS,Q NO.1 |
88707-02010 |
— | ||
|
88707
|
88707
88707-02020
Pipe Sub-Assy, Suction
[09.1986 - 08.1988] AE82..GTS,Q NO.2 |
88707-02020 |
— | ||
|
88711
|
88711
88711-02010
Hose, Cooler Refrigerant Discharge, No.1
[09.1986 - 08.1988] AE82..GTS,Q |
88711-02010 |
— | ||
|
88712
|
88712
88712-02010
Hose, Cooler Refrigerant Suction, No.1
[09.1986 - 08.1988] AE82..GTS,Q |
88712-02010 |
— | ||
|
88715A
|
88715A
88715-02010
Pipe, Cooler Refrigerant Discharge, A
[09.1986 - 08.1988] AE82..GTS,Q |
88715-02010 |
— | ||
|
88716B
|
88716B
88716-02020
Pipe, Cooler Refrigerant Liquid, B
[09.1986 - 08.1988] AE82..GTS,Q NO.1 |
88716-02020 |
— | ||
|
88716B
|
88716B
88716-02030
Pipe, Cooler Refrigerant Liquid, B
[09.1986 - 08.1988] AE82..GTS,Q NO.2 |
88716-02030 |
— | ||
|
88716C
|
88716C
88716-02040
Pipe, Cooler Refrigerant Liquid, C
[09.1986 - 08.1988] AE82..GTS,Q |
88716-02040 |
— | ||
|
88716E
|
88716E
88716-02010
Pipe, Cooler Refrigerant Liquid, E
[09.1986 - 04.1987] AE82..GTS,Q |
88716-02010 |
— | ||
|
88716E
|
88716E
88716-02011
Pipe, Cooler Refrigerant Liquid, E
[04.1987 - 08.1988] AE82..GTS,Q |
88716-02011 |
— | ||
|
88717A
|
88717A
88717-02010
Pipe, Cooler Refrigerant Suction, A
[09.1986 - 08.1988] AE82..GTS,Q |
88717-02010 |
— | ||
|
88717B
|
88717B
88717-02020
Pipe, Cooler Refrigerant Suction, B
[09.1986 - 08.1988] AE82..GTS,Q |
88717-02020 |
— | ||
|
88717C
|
88717C
88717-02060
Pipe, Cooler Refrigerant Suction, C
[09.1986 - 08.1988] AE82..GTS,Q |
88717-02060 |
— | ||
|
88717D
|
88717D
88717-02040
Pipe, Cooler Refrigerant Suction, D
[09.1986 - 08.1988] AE82..GTS,Q |
88717-02040 |
— | ||
|
88717E
|
88717E
88717-02050
Pipe, Cooler Refrigerant Suction, E
[09.1986 - 08.1988] AE82..GTS,Q |
88717-02050 |
— | ||
|
88717P
|
88717P
88717-02030
Pipe, Cooler Refrigerant Suction, P
[09.1986 - 08.1988] AE82..GTS,Q |
88717-02030 |
— | ||
|
8846702020
|
8846702020
88467-02020
Cushion, Cooler Condenser, No.1
|
88467-02020 |
— | ||
|
8868802030
|
8868802030
88688-02030
Bracket, Cooler Diaphragm
|
88688-02030 |
— | ||
|
8871802010
|
8871802010
88718-02010
Pipe, Cooler Refrigerant Suction, No.2
|
88718-02010 |
— | ||
|
8871802020
|
8871802020
88718-02020
Pipe, Cooler Refrigerant Suction, No.2
|
88718-02020 |
— | ||
| replacement | |||||
|
8871802020
|
8871802020
88718-02021
Pipe, Cooler Refrigerant Suction, No.2
|
88718-02021 |
— | ||
|
8871802021
|
8871802021
88718-02021
Pipe, Cooler Refrigerant Suction, No.2
|
88718-02021 |
— | ||
|
8871802030
|
8871802030
88718-02030
Pipe, Cooler Refrigerant Suction, No.2
|
88718-02030 |
— | ||
|
8871802040
|
8871802040
88718-02040
Pipe, Cooler Refrigerant Suction, No.2
|
88718-02040 |
— | ||
|
8871802050
|
8871802050
88718-02050
Pipe, Cooler Refrigerant Suction, No.2
|
88718-02050 |
— | ||
|
8871802060
|
8871802060
88718-02060
Pipe, Cooler Refrigerant Suction, No.2
|
88718-02060 |
— | ||
|
8871802070
|
8871802070
88718-02070
Pipe, Cooler Refrigerant Suction, No.2
|
88718-02070 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9017908035
|
9017908035
90179-08035 New Genuine Part |
90179-08035 |
US $2.04 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.44 |
||
|
9165160845
|
9165160845
91651-60845
Bolt(For Rocker Support Set)
|
91651-60845 |
— | ||
| replacement | |||||
|
9165160845
|
9165160845
91651-B0845 Bolt, Flange (For Idler) |
91651-B0845 |
US $1.60 |
||
