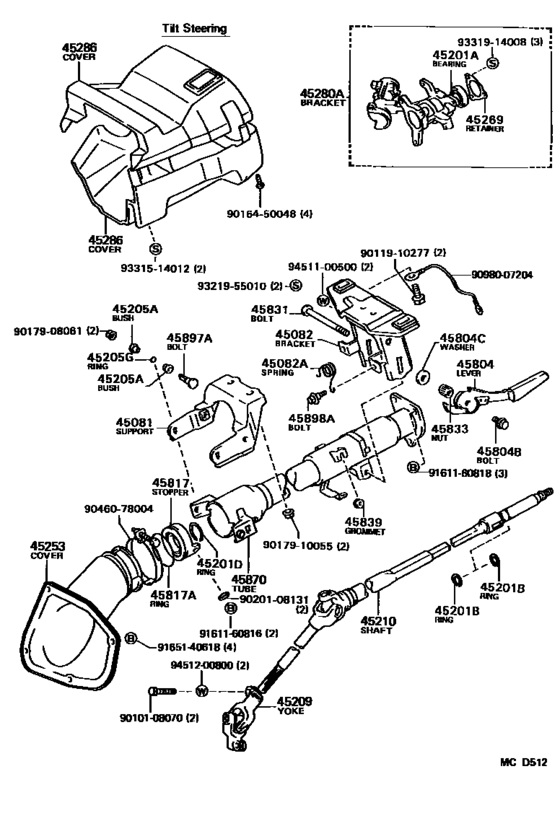

Steering Column & Shaft ([09.1986 - ] (8609- )GTS) Diagram Toyota COROLLA
- Year
- 1986 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- GTS
- ENGINE
- 4AGELC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 09.1986
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45081
|
45081
45081-12020 Support Sub-Assy, Tilt SteeringTILT STEERING [09.1986 - 08.1988] AE82..GTS |
45081-12020 |
US $37.71 |
||
|
45082
|
45082
45082-01011
Bracket Sub-Assy, Break Away W/capsule
[09.1986 - 08.1988] AE82..GTS |
45082-01011 |
— | ||
|
45082A
|
45082A
90508-29015 Spring, Torsion(For Tilt Steering Return)[09.1986 - 08.1988] AE82..GTS |
90508-29015 |
US $3.64 |
||
|
45201A
|
45201A
90363-18038 Bearing(For Steering Main Shaft)[09.1986 - 08.1988] AE82 |
90363-18038 |
US $10.56 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[09.1986 - 08.1988] AE82 T=1.20,T=1.2 |
90520-17042 |
from US $0.86 |
||
|
45201B
|
45201B
90520-17196 Ring, Shaft Snap(For Steering Main Shaft)[09.1986 - 08.1988] AE82 T=1.35-1.45,T=1.4 |
90520-17196 |
US $2.97 |
||
|
45201D
|
45201D
96152-00300 Ring, Hole Snap (For Differential Side Gear Shaft)[09.1986 - 08.1988] AE82 |
96152-00300 |
US $0.70 |
||
|
45205A
|
45205A
90389-11005
Bush(For Steering Column Tube)
[09.1986 - 08.1988] AE82..GTS |
90389-11005 |
— | ||
|
45205G
|
45205G
90301-11005
Ring, O(For Steering Column Tube)
[09.1986 - 08.1988] AE82..GTS |
90301-11005 |
— | ||
|
45209
|
45209
45209-32020
Yoke Sub-Assy, Steering Sliding
[09.1986 - 08.1988] AE82 W/POWER STEERING |
45209-32020 |
— | ||
| replacement | |||||
|
45209
|
45209
45209-16010 Yoke Sub-Assy, Steering Sliding[09.1986 - 08.1988] AE82 W/POWER STEERING |
45209-16010 |
US $137.64 |
||
|
45210
|
45210
45210-12230 Shaft Sub-Assy, Steering MainSTEERING MAIN [09.1986 - 08.1988] AE82 W/POWER STEERING |
45210-12230 |
US $225.68 |
||
|
45253
|
45253
45025-12160
Cover, Steering Column Hole
[09.1986 - 08.1988] AE82 |
45025-12160 |
— | ||
|
45269
|
45269
45269-10010 Retainer, Main Shaft Bearing[09.1986 - 08.1988] AE82 |
45269-10010 |
US $6.41 |
||
|
45280A
|
45280A
45280-12050
Bracket, Steering Column, Upper
[09.1986 - 09.1987] AE82 |
45280-12050 |
— | ||
|
45280A
|
45280A
45280-12052 Bracket, Steering Column, UpperSTEERING COLUMN, UPPER [09.1987 - 08.1988] AE82 |
45280-12052 |
US $224.22 |
||
|
45286
|
45286
45286-01020-J9
Cover, Steering Column
[09.1986 - 08.1988] AE82 UPR,BLUE,DARK BLUE |
45286-01020-J9 |
— | ||
|
45286
|
45286
45286-01020-P8
Cover, Steering Column
[09.1986 - 08.1988] AE82 UPR,CHARCOAL,CHARCOAL |
45286-01020-P8 |
— | ||
|
45286
|
45286
45287-01020-J9
Cover, Steering Column
[09.1986 - 08.1988] AE82..GTS LWR,BLUE,W/TILT STEERING,DARK BLUE |
45287-01020-J9 |
— | ||
|
45286
|
45286
45287-01020-P8
Cover, Steering Column
[09.1986 - 08.1988] AE82..GTS LWR,CHARCOAL,W/TILT STEERING,CHARCOAL |
45287-01020-P8 |
— | ||
|
45804
|
45804
45804-12020
Lever Sub-Assy, Steering Tilt
[09.1986 - 08.1988] AE82..GTS |
45804-12020 |
— | ||
|
45804B
|
45804B
90105-08060
Bolt(For Steering Tilt Lever)
[09.1986 - 08.1988] AE82..GTS |
90105-08060 |
— | ||
|
45804C
|
45804C
90201-08029 Washer, Plate(For Steering Tilt Lever)[09.1986 - 08.1988] AE82..GTS |
90201-08029 |
US $3.35 |
||
|
45817
|
45817
45808-20020
Stopper, Steering Shaft Thrust
[09.1986 - 08.1988] AE82 |
45808-20020 |
— | ||
| replacement | |||||
|
45817
|
45817
45808-20030
Stopper Sub-Assy, Steering Shaft Thrust
[09.1986 - 08.1988] AE82 |
45808-20030 |
— | ||
|
45817A
|
45817A
90301-54002
Ring, O(For Input Front)
[09.1986 - 08.1988] AE82 |
90301-54002 |
— | ||
|
45831
|
45831
45831-20010 Bolt, Tilt Lever Lock, No.1[09.1986 - 08.1988] AE82..GTS |
45831-20010 |
US $5.53 |
||
|
45833
|
45833
45833-20010 Nut, Tilt Steering Adjusting, No.1[09.1986 - 08.1988] AE82..GTS |
45833-20010 |
US $8.59 |
||
|
45839
|
45839
45839-20010 Grommet, Return Spring[09.1986 - 08.1988] AE82..GTS |
45839-20010 |
US $3.64 |
||
|
45870
|
45870
45870-12210 Tube Sub-Assy, Steering ColumnSTEERING COLUMN [09.1986 - 08.1988] AE82..GTS W/TILT STEERING |
45870-12210 |
US $106.29 |
||
|
45897A
|
45897A
45897-26010
Bolt, Tilt Steering Pawl Set
[09.1986 - 08.1988] AE82..GTS |
45897-26010 |
— | ||
|
45898A
|
45898A
45898-20020 Bolt, Return Spring Set[09.1986 - 08.1988] AE82..GTS |
45898-20020 |
US $3.35 |
||
|
9010108070
|
9010108070
90101-08070
Bolt, Hexagon
|
90101-08070 |
— | ||
| replacement | |||||
|
9010108070
|
9010108070
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
|
9011910277
|
9011910277
90119-10277 New Genuine Part |
90119-10277 |
US $3.64 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.88 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.82 |
||
|
9017910055
|
9017910055
90179-10055 NUT |
90179-10055 |
US $2.62 |
||
|
9020108131
|
9020108131
90201-08131 WASHER |
90201-08131 |
US $1.89 |
||
|
9046078004
|
9046078004
90460-78004 New Genuine Part |
90460-78004 |
US $6.99 |
||
|
9098007204
|
9098007204
90980-07204 Cable, Bond(For Horn Earth) |
90980-07204 |
US $7.28 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161160818
|
9161160818
91611-60818
Bolt(For Oil Receiver Pipe)
|
91611-60818 |
— | ||
| replacement | |||||
|
9161160818
|
9161160818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.60 |
||
|
9165140618
|
9165140618
91651-40618 New Genuine Part |
91651-40618 |
US $2.80 |
||
|
9321955010
|
9321955010
93219-55010 New Genuine Part |
93219-55010 |
US $1.46 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $0.80 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
