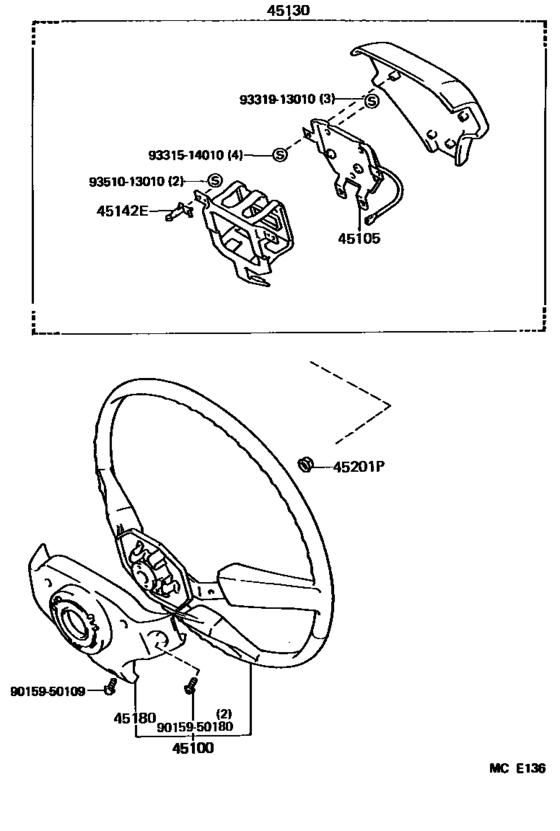

Steering Wheel ([09.1986 - ] (8609- )GTS,Q) Diagram Toyota COROLLA
- Year
- 1986 - 1988
- Sales region
- U.S.A.
- Frame
- AE82
- grade
- GTS
- ENGINE
- 4AGELC
- TRANSMISSION
- ATM
- Model
- COROLLA FX
- From
- 09.1986
- To
- 08.1988
- Vehicle Model
- Corolla FX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-02040-J9
Wheel Assy, Steering
[09.1986 - 08.1988] AE82..GTS LEATHER,BLUE,DARK BLUE |
45100-02040-J9 |
— | ||
| replacement | |||||
|
45100
|
45100
45100-02040-P8
Wheel Assy, Steering
[09.1986 - 08.1988] AE82..GTS LEATHER,BLUE,DARK BLUE |
45100-02040-P8 |
— | ||
|
45100
|
45100
45100-02040-P8
Wheel Assy, Steering
[09.1986 - 08.1988] AE82..GTS LEATHER,CHARCOAL,CHARCOAL |
45100-02040-P8 |
— | ||
|
45105
|
45105
45105-17030 Plate Sub-Assy, Horn Button Contact, No.1HORN BUTTON CONTACT, NO.1 [09.1986 - 08.1988] AE82..GTS,Q |
45105-17030 |
US $36.69 |
||
|
45130
|
45130
45130-02021-J9
Button Assy, Horn
[09.1986 - 08.1988] AE82..GTS,Q BLUE,DARK BLUE |
45130-02021-J9 |
— | ||
| replacement | |||||
|
45130
|
45130
45130-02021-P8
Button Assy, Horn
[09.1986 - 08.1988] AE82..GTS,Q BLUE,DARK BLUE |
45130-02021-P8 |
— | ||
|
45130
|
45130
45130-02021-P8
Button Assy, Horn
[09.1986 - 08.1988] AE82..GTS,Q CHARCOAL,CHARCOAL |
45130-02021-P8 |
— | ||
|
45142E
|
45142E
45142-20060 Seat, Horn Button Contact, No.1[09.1986 - 08.1988] AE82..GTS,Q |
45142-20060 |
US $5.39 |
||
|
45180
|
45180
45180-02010-J9
Cover Sub-Assy, Steering Wheel
[09.1986 - 08.1988] AE82..GTS,Q BLUE,DARK BLUE |
45180-02010-J9 |
— | ||
| replacement | |||||
|
45180
|
45180
45180-02010-P8
Cover Sub-Assy, Steering Wheel
[09.1986 - 08.1988] AE82..GTS,Q BLUE,DARK BLUE |
45180-02010-P8 |
— | ||
|
45180
|
45180
45180-02010-P8
Cover Sub-Assy, Steering Wheel
[09.1986 - 08.1988] AE82..GTS,Q CHARCOAL,CHARCOAL |
45180-02010-P8 |
— | ||
|
45201P
|
45201P
90179-12086 Nut, Steering Wheel Set[09.1986 - 08.1988] AE82 |
90179-12086 |
US $4.80 |
||
|
9015950109
|
9015950109
90159-50109 New Genuine Part |
90159-50109 |
US $2.33 |
||
|
9015950180
|
9015950180
90159-50180
New Genuine Part
|
90159-50180 |
— | ||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.80 |
||
|
9331913010
|
9331913010
93319-13010 New Genuine Part |
93319-13010 |
US $1.92 |
||
|
9351013010
|
9351013010
93510-13010 Bolt Or Pin (For Shift Lever Knob Setting) |
93510-13010 |
US $1.76 |
||
