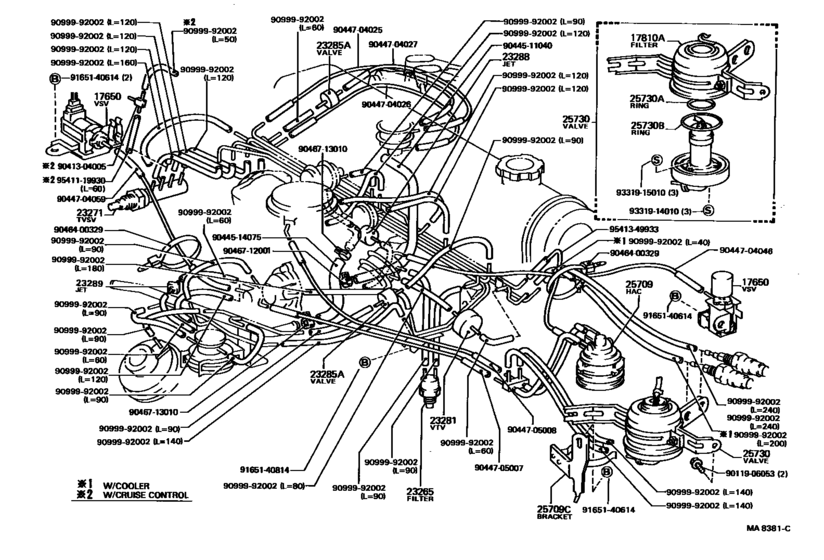

Vacuum Piping ([04.1985 - 05.1985] (8504-8505)FRG SPEC (8504-8505)4ALC ; (8508- )4ALC..FRG) Diagram Toyota COROLLA
- Year
- 1984 - 1987
- Sales region
- Europe
- Frame
- AE82
- grade
- GL
- body
- SED
- ENGINE
- 4ALC
- TRANSMISSION
- ATM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1984
- To
- 04.1987
- Gear Shift Type
- 3FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23265
|
23265
90917-11023 Filter, Gas, No.1[01.1984 - 07.1988] 4AL..AE82;2AL#,4ALC..AE8#..ARL,EUR,SAA |
90917-11023 |
from US $23.41 |
||
|
23271
|
23271
90925-02076
Valve, Thermostatic Vacuum Switching, No.1
[01.1984 - 07.1988] 4AL..AE82;2AL#,4ALC..AE8#..ARL,EUR,SAA |
90925-02076 |
— | ||
|
23281
|
23281
90925-01014
Valve, Vacuum Transmitting, No.1
[05.1983 - 07.1988] 2ALC,4ALC..AE8#;4AL..AE82..4DS..5F..GL..EUG |
90925-01014 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[05.1983 - 07.1988] 2ALC,4ALC..AE8#;4AL..AE82..4DS..5F..GL..EUG |
90917-10049 |
from US $10.24 |
||
|
23288
|
23288
90925-04003
Jet, No.1
[01.1984 - 07.1988] 4AL..AE82;4ALC..AE82..ARL;4ALC..AE82..SDZ; 2AL#..AE80..ARL,EUR,SAA |
90925-04003 |
— | ||
|
9011906053
|
9011906053
90119-06053 New Genuine Part |
90119-06053 |
US $0.96 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
US $3.04 |
||
|
9044511040
|
9044511040
90445-11040
Hose, No.1(For Idle-Up)
|
90445-11040 |
— | ||
|
9044514075
|
9044514075
90445-14075 Hose, No.1(For Air Pipe) |
90445-14075 |
US $5.39 |
||
|
9044704025
|
9044704025
90447-04025 New Genuine Part |
90447-04025 |
US $3.64 |
||
|
9044704026
|
9044704026
90447-04026 New Genuine Part |
90447-04026 |
US $3.64 |
||
|
9044704027
|
9044704027
90447-04027 New Genuine Part |
90447-04027 |
US $3.49 |
||
|
9044704046
|
9044704046
90447-04046 Hose, Fuel, No.1(For Charcoal Canister)FUEL, NO.1(FOR CHARCOAL CANISTER) |
90447-04046 |
US $4.95 |
||
| replacement | |||||
|
9044704046
|
9044704046
90447-04108 Hose, Fuel, No.1(For Charcoal Canister)FUEL, NO.1(FOR CHARCOAL CANISTER) |
90447-04108 |
US $4.66 |
||
|
9044704059
|
9044704059
90447-04059 New Genuine Part |
90447-04059 |
US $3.64 |
||
|
9044705007
|
9044705007
90447-05007 New Genuine Part |
90447-05007 |
US $3.49 |
||
|
9044705008
|
9044705008
90447-05008 New Genuine Part |
90447-05008 |
US $3.49 |
||
|
9046400329
|
9046400329
90464-00329 Clamp (For Fuel Lid Lock Control Cable) |
90464-00329 |
US $2.62 |
||
| replacement | |||||
|
9046400329
|
9046400329
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
9046712001
|
9046712001
90467-12001 Clip(For Carburetor Fuel Hose) |
90467-12001 |
US $2.18 |
||
| replacement | |||||
|
9046712001
|
9046712001
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.79 |
||
|
9046713010
|
9046713010
90467-13010 Clip(For Ventilation Hose No.2) |
90467-13010 |
US $2.48 |
||
| replacement | |||||
|
9046713010
|
9046713010
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.92 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541349933
|
9541349933
95413-49933 Hose, Fuel, No.1(For Charcoal Canister)FUEL, NO.1(FOR CHARCOAL CANISTER) |
95413-49933 |
US $5.24 |
||
