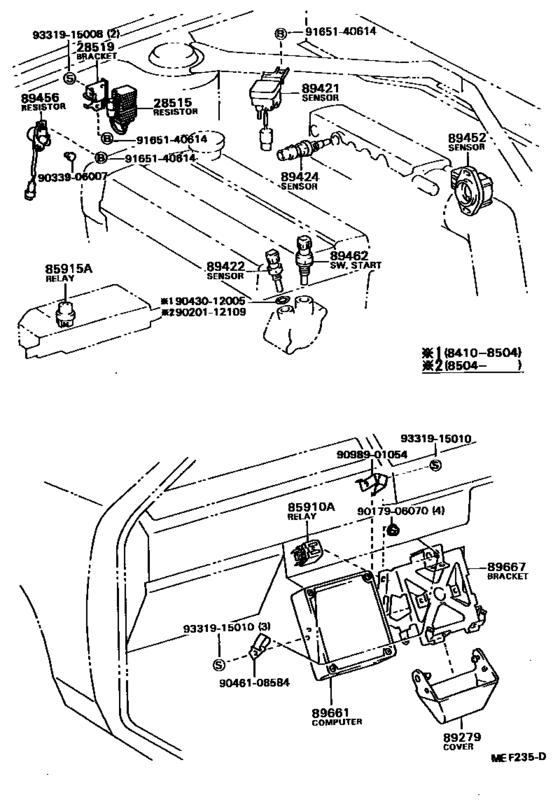

Electronic Fuel Injection System ([10.1984 - ] (8410- )GT) Diagram Toyota COROLLA
- Year
- 1985 - 1988
- Sales region
- General
- Frame
- AE82
- grade
- GT
- body
- SED
- ENGINE
- 4AGELC
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.1985
- To
- 07.1988
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla
- Driver's Position
- RHD
- Destination
- ARL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28515
|
28515
28515-16020 Resistor, Solenoid[08.1987 - 07.1988] 4AG#..AE82 |
28515-16020 |
US $149.97 |
||
|
28519
|
28519
28519-16050 Bracket, Solenoid ResistorSOLENOID RESISTOR [08.1987 - 07.1988] 4AG#..AE82 |
28519-16050 |
US $7.13 |
||
|
85910A
|
85910A
85910-30050 Relay Assy, Circuit Opening (For Efi)[10.1984 - 07.1988] AE82..GT |
85910-30050 |
US $84.36 |
||
|
85915A
|
85915A
90987-02004 Relay Assy, Starter[10.1984 - 07.1988] AE82..GT |
90987-02004 |
from US $28.20 |
||
| replacement | |||||
|
85915A
|
85915A
909870200483 [10.1984 - 07.1988] AE82..GT |
909870200483 |
US $53.75 |
||
|
89279
|
89279
89279-12010 Cover, Engine Control ComputerENGINE CONTROL COMPUTER [10.1984 - 07.1988] AE82..GT |
89279-12010 |
US $8.30 |
||
|
89421
|
89421
89421-12030
Sensor Assy, Vacuum (For E.f.i.)
[10.1984 - 07.1988] AE82..GT |
89421-12030 |
— | ||
|
89422
|
89422
89422-12010 Sensor, Water Temperature (For E.f.i.)[08.1987 - 07.1988] AE82..GT |
89422-12010 |
from US $61.10 |
||
|
89422
|
89422
89422-30020
Sensor, Water Temperature (For E.f.i.)
[10.1984 - 08.1987] AE82..GT |
89422-30020 |
— | ||
| replacement | |||||
|
89422
|
89422
89422-12010 Sensor, Water Temperature (For E.f.i.)[10.1984 - 08.1987] AE82..GT |
89422-12010 |
from US $61.10 |
||
|
89424
|
89424
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[08.1987 - 07.1988] AE82..GT |
89424-12010 |
from US $57 |
||
|
89424
|
89424
89424-28010
Sensor, Inlet Air Temperature (For E.f.i.)
[10.1984 - 08.1987] AE82..GT |
89424-28010 |
— | ||
|
89452
|
89452
89452-12040 Sensor, Throttle Position (For E.f.i.)[08.1987 - 07.1988] AE82..GT DENSO |
89452-12040 |
from US $135.14 |
||
|
89452
|
89452
89452-14050 Sensor, Throttle Position (For E.f.i.)[07.1986 - 08.1987] AE82..GT..ARL |
89452-14050 |
US $192.96 |
||
|
89452
|
89452
89452-20050 Sensor, Throttle Position (For E.f.i.)[11.1985 - 07.1986] AE82..GT..ARL |
89452-20050 |
US $178.21 |
||
|
89462
|
89462
89462-12010
Switch, Start Injector Time
[08.1987 - 07.1988] AE82..GT |
89462-12010 |
— | ||
|
89462
|
89462
89462-30011 Switch, Start Injector Time[10.1984 - 08.1987] AE82..GT |
89462-30011 |
US $139.12 |
||
|
89661
|
89661
89661-12080 Computer, Engine ControlENGINE CONTROL [11.1985 - 08.1987] AE82..GT..ARL |
89661-12080 |
US $1,291.47 |
||
|
89661
|
89661
89661-12250 Computer, Engine ControlENGINE CONTROL [08.1987 - 07.1988] AE82..GT..ARL |
89661-12250 |
US $1,394.85 |
||
|
89667
|
89667
89667-12010 Bracket, Engine Control ComputerENGINE CONTROL COMPUTER [10.1984 - 07.1988] AE82..GT |
89667-12010 |
US $21.84 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9020112109
|
9020112109
90201-12109 Washer, Air Bleeder Nipple |
90201-12109 |
from US $1.38 |
||
|
9033906007
|
9033906007
90339-06007
New Genuine Part
|
90339-06007 |
— | ||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.70 |
||
|
9046108584
|
9046108584
90461-08584
New Genuine Part
|
90461-08584 |
— | ||
|
9098901054
|
9098901054
90989-01054
New Genuine Part
|
90989-01054 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
