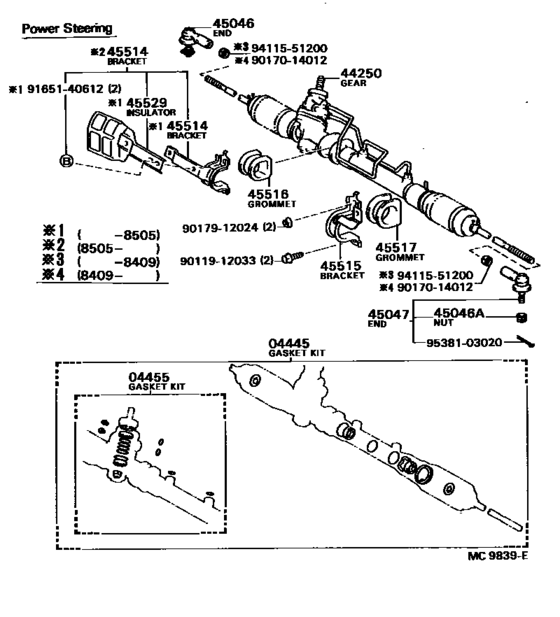

Front Steering Gear & Link ([05.1983 - ] (8305- )AE82..5D..RHD..GL) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Europe
- Frame
- AE82
- grade
- GL
- body
- LB
- ENGINE
- 4AL
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1983
- To
- 04.1987
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla
- Driver's Position
- RHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445
|
04445
04445-12030 Gasket Kit, Power Steering Gear(For Recirculating Ball)POWER STEERING GEAR(FOR RECIRCULATING BALL) [05.1983 - 04.1988] AE82..5D..RHD..GL |
04445-12030 |
US $88.82 |
||
|
04455
|
04455
04455-16010 Gasket Kit, Power Steering Control Valve Overhole[05.1983 - 04.1988] AE82..5D..RHD..GL |
04455-16010 |
US $42.08 |
||
|
44250
|
44250
44250-12110 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [05.1983 - 09.1984] AE82..5D..RHD |
44250-12110 |
US $1,434.16 |
||
| replacements | |||||
|
44250
|
44250
44250-12102 Gear Assy, Power Steering(For Rack & Pinion)[05.1983 - 09.1984] AE82..5D..RHD |
44250-12102 |
US $1,587.04 |
||
|
44250
|
44250
45046-19175 End Sub-Assy, Tie Rod[05.1983 - 09.1984] AE82..5D..RHD |
45046-19175 |
from US $46.06 |
||
|
44250
|
44250
90170-14012 Nut, Rack End Lock[05.1983 - 09.1984] AE82..5D..RHD |
90170-14012 |
from US $1.13 |
||
|
44250
|
44250
44250-12111 Gear Assy, Power Steering(For Rack & Pinion)POWER STEERING(FOR RACK & PINION) [09.1984 - 04.1988] AE82..5D..RHD..GL |
44250-12111 |
US $1,439.98 |
||
| replacement | |||||
|
44250
|
44250
44250-12102 Gear Assy, Power Steering(For Rack & Pinion)[09.1984 - 04.1988] AE82..5D..RHD..GL |
44250-12102 |
US $1,587.04 |
||
|
45046
|
45046
45046-19175 End Sub-Assy, Tie Rod[09.1984 - 07.1988] AE8#,CE80,EE80 |
45046-19175 |
from US $46.06 |
||
|
45046
|
45046
45046-29135 End Sub-Assy, Tie Rod[05.1983 - 09.1984] AE8#,CE80 |
45046-29135 |
US $58.06 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[05.1983 - 07.1988] AE8#,CE80,EE80 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45046-19175 End Sub-Assy, Tie Rod[09.1984 - 07.1988] AE8#,CE80,EE80 |
45046-19175 |
from US $46.06 |
||
|
45047
|
45047
45046-29135 End Sub-Assy, Tie Rod[05.1983 - 09.1984] AE8#,CE80 |
45046-29135 |
US $58.06 |
||
|
45514
|
45514
45505-12010 Bracket, Steering Rack Housing, No.1[05.1985 - 07.1988] AE8#..RHD..(CS,CSX,DX,GL,S,SE,XL) |
45505-12010 |
US $21.84 |
||
|
45514
|
45514
45505-12020 Bracket, Steering Rack Housing, No.1[05.1985 - 05.1985] AE82..5D..RHD..GEN W/POWER STEERING; AE82..(CSX,DX,GL)..(ARL,SA) W/POWER STEERING |
45505-12020 |
US $21.84 |
||
|
45514
|
45514
45514-12050
Bracket, Steering Rack Housing, No.1
[05.1983 - 05.1985] AE8#..RHD..(CS,CSX,DX,GL,S,STD,XL) |
45514-12050 |
— | ||
|
45514
|
45514
45514-12060
Bracket, Steering Rack Housing, No.1
[05.1983 - 05.1985] AE82..5D..RHD..GEN W/POWER STEERING |
45514-12060 |
— | ||
|
45515
|
45515
45515-12060 Bracket, Steering Rack Housing, No.2[05.1983 - 04.1988] AE8#..RHD;CE80,EE80 |
45515-12060 |
US $10.63 |
||
| replacement | |||||
|
45515
|
45515
45515-12070 Bracket, Steering Rack Housing, No.2[05.1983 - 04.1988] AE8#..RHD;CE80,EE80 |
45515-12070 |
US $10.77 |
||
|
45515
|
45515
45515-12070 Bracket, Steering Rack Housing, No.2[05.1983 - 05.1985] AE82..RHD..GL..GEN W/POWER STEERING |
45515-12070 |
US $10.77 |
||
|
45516
|
45516
45516-20010 Grommet, Steering Rack Housing, No.1[05.1983 - 07.1988] AE8#,CE80,EE80 |
45516-20010 |
US $12.16 |
||
|
45517
|
45517
45517-12050
Grommet, Steering Rack Housing, No.2
[05.1983 - 07.1988] AE8#,CE80,EE80 |
45517-12050 |
— | ||
|
45529
|
45529
45529-12010
Insulator, Steering Rack Boot Heat
[05.1983 - 05.1985] AE8#..CS,CSX,DX,GL,S,STD,XL |
45529-12010 |
— | ||
|
9011912033
|
9011912033
90119-12033 New Genuine Part |
90119-12033 |
US $4.66 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9017912024
|
9017912024
90179-12024 NUT |
90179-12024 |
from US $1.17 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $2.72 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
