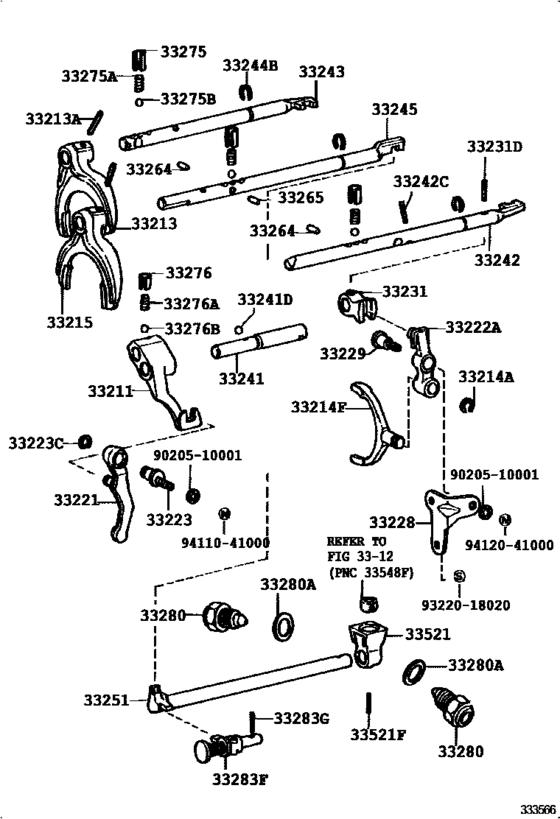

Gear Shift Fork & Lever Shaft (Mtm) ([05.1983 - ] (8305- )AE85..5F) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- AE85
- grade
- GL
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1983
- To
- 04.1987
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33211
|
33211
33211-10020 Fork, Reverse ShiftREVERSE SHIFT [05.1983 - 04.1987] AE85..5F |
33211-10020 |
US $41.35 |
||
|
33213
|
33213
33213-12010
Fork, 1St & 2Nd Shift
[05.1983 - 04.1987] AE85..5F |
33213-12010 |
— | ||
|
33213A
|
33213A
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[05.1983 - 04.1987] AE8#..5F |
90254-05001 |
from US $1.03 |
||
|
33214A
|
33214A
90520-12001
Ring, Shaft Snap(For 5Th Shift Fork)
[05.1983 - 04.1987] AE85..5F |
90520-12001 |
— | ||
|
33214F
|
33214F
33214-10011
Fork, 5Th Shift
[05.1983 - 04.1987] AE85..5F |
33214-10011 |
— | ||
|
33215
|
33215
33215-12011
Fork, 3Rd & 4Th Shift
[05.1983 - 04.1987] AE85..5F |
33215-12011 |
— | ||
|
33221
|
33221
33221-12010 Arm, Reverse ShiftREVERSE SHIFT [05.1983 - 04.1987] AE85..5F |
33221-12010 |
US $18.35 |
||
|
33222A
|
33222A
33222-10011 Arm, 5Th Shift5TH SHIFT [05.1983 - 04.1987] AE85..5F |
33222-10011 |
US $32.18 |
||
|
33223
|
33223
33223-12060 Pivot, Shift ArmSHIFT ARM [05.1983 - 04.1987] AE85..5F |
33223-12060 |
US $13.40 |
||
|
33223C
|
33223C
96150-01300 Ring, Shaft Snap(For Shift Arm Pivot)SHAFT SNAP(FOR SHIFT ARM PIVOT) [05.1983 - 04.1987] AE85..5F |
96150-01300 |
US $2.18 |
||
|
33228
|
33228
33228-12010 Bracket, Reverse Shift ArmREVERSE SHIFT ARM [05.1983 - 04.1987] AE85..5F |
33228-12010 |
US $25.33 |
||
|
33229
|
33229
33229-10011 Pivot, 5Th Shift Arm5TH SHIFT ARM [05.1983 - 04.1987] AE85..5F |
33229-10011 |
US $6.26 |
||
|
33231
|
33231
33232-10011 Head, Reverse ShiftREVERSE SHIFT [05.1983 - 04.1987] AE85..5F |
33232-10011 |
US $22.57 |
||
|
33231D
|
33231D
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[05.1983 - 04.1987] AE85..5F |
90254-05001 |
from US $1.03 |
||
|
33241
|
33241
33241-10020 Shaft, Reverse Shift ForkREVERSE SHIFT FORK [05.1983 - 04.1987] AE85..5F |
33241-10020 |
US $20.82 |
||
|
33241D
|
33241D
90360-10003 Ball(For Transmission Oil Pump Cover)[05.1983 - 04.1987] AE85..5F |
90360-10003 |
from US $1.29 |
||
|
33242
|
33242
33244-12020 Shaft, Gear Shift Fork, No.1GEAR SHIFT FORK, NO.1 [05.1983 - 04.1987] AE85..5F |
33244-12020 |
US $51.25 |
||
| replacement | |||||
|
33242
|
33242
33244-12040 Shaft, Gear Shift Fork, No.1GEAR SHIFT FORK, NO.1 [05.1983 - 04.1987] AE85..5F |
33244-12040 |
US $57.37 |
||
|
33242C
|
33242C
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[05.1983 - 04.1987] AE85..5F |
90254-05001 |
from US $1.03 |
||
|
33243
|
33243
33242-12021 Shaft, 1St & 2Nd Shift Fork1ST & 2ND SHIFT FORK [05.1983 - 04.1987] AE85..5F |
33242-12021 |
US $47.61 |
||
|
33244B
|
33244B
90520-12001
Ring, Shaft Snap(For 5Th Shift Fork)
[05.1983 - 04.1987] AE85..5F |
90520-12001 |
— | ||
|
33245
|
33245
33243-12050 Shaft, 3Rd & 4Th Shift Fork3RD & 4TH SHIFT FORK [05.1983 - 04.1987] AE85..5F |
33243-12050 |
US $51.25 |
||
| replacement | |||||
|
33245
|
33245
33243-12070 Shaft, 3Rd & 4Th Shift Fork3RD & 4TH SHIFT FORK [05.1983 - 04.1987] AE85..5F |
33243-12070 |
US $57.37 |
||
|
33251
|
33251
33251-12050 Lever, Shift & SelectSHIFT & SELECT [05.1983 - 04.1987] AE85..5F |
33251-12050 |
US $40.91 |
||
|
33264
|
33264
90250-05197
Pin, Or Ball, Shift Inter Lock, No.1
[05.1983 - 04.1987] AE85..5F 長さ＝９．９，外径＝５ |
90250-05197 |
— | ||
|
33265
|
33265
90250-05197
Pin, Or Ball, Shift Inter Lock, No.1
[05.1983 - 04.1987] AE85..5F 長さ＝９．９，外径＝５ |
90250-05197 |
— | ||
|
33275
|
33275
33275-12010
Seat, Shift Detent Ball Spring, No.1
[05.1983 - 04.1987] AE8#..5F |
33275-12010 |
— | ||
|
33275A
|
33275A
90501-14237 Spring, Compression (For Shift Detent Ball Low Side)[05.1983 - 04.1987] AE8#..5F 長さ＝１６．１ |
90501-14237 |
US $3.04 |
||
|
33275B
|
33275B
90360-10003 Ball(For Transmission Oil Pump Cover)[05.1983 - 04.1987] AE8#..5F |
90360-10003 |
from US $1.29 |
||
|
33276
|
33276
33275-10021 Seat, Shift Detent Ball Spring, No.2SHIFT DETENT BALL SPRING, NO.2 [05.1983 - 04.1987] AE85..5F |
33275-10021 |
US $3.06 |
||
|
33276A
|
33276A
90501-14237 Spring, Compression (For Shift Detent Ball Low Side)[05.1983 - 04.1987] AE85..5F |
90501-14237 |
US $3.04 |
||
|
33276B
|
33276B
90360-10003 Ball(For Transmission Oil Pump Cover)[05.1983 - 04.1987] AE85..5F |
90360-10003 |
from US $1.29 |
||
|
33280
|
33280
33280-12040
Pin Assy, Reverse Restrict
[05.1983 - 04.1987] AE8#..5F RH |
33280-12040 |
— | ||
|
33280
|
33280
33280-12050
Pin Assy, Reverse Restrict
[05.1983 - 04.1987] AE8#..5F LH |
33280-12050 |
— | ||
|
33280A
|
33280A
90430-22002 Gasket(For Manifold Plug)[05.1983 - 04.1987] AE8#..5F |
90430-22002 |
US $4.48 |
||
|
33283F
|
33283F
33280-12011 Pin, Reverse RestrictREVERSE RESTRICT [05.1983 - 04.1987] AE85..5F |
33280-12011 |
US $33.78 |
||
|
33283G
|
33283G
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[05.1983 - 04.1987] AE8#..5F |
90254-05001 |
from US $1.03 |
||
|
33521
|
33521
33521-12100 Housing, Shift LeverSHIFT LEVER [05.1983 - 04.1987] AE85..5F |
33521-12100 |
US $21.11 |
||
|
33521F
|
33521F
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[05.1983 - 04.1987] AE8#..5F |
90254-05001 |
from US $1.03 |
||
|
9020510001
|
9020510001
90205-10001 New Genuine Part |
90205-10001 |
US $2.18 |
||
|
9322018020
|
9322018020
93220-18020
New Genuine Part
|
93220-18020 |
— | ||
| replacement | |||||
|
9322018020
|
9322018020
93230-18020 New Genuine Part |
93230-18020 |
US $1.76 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
