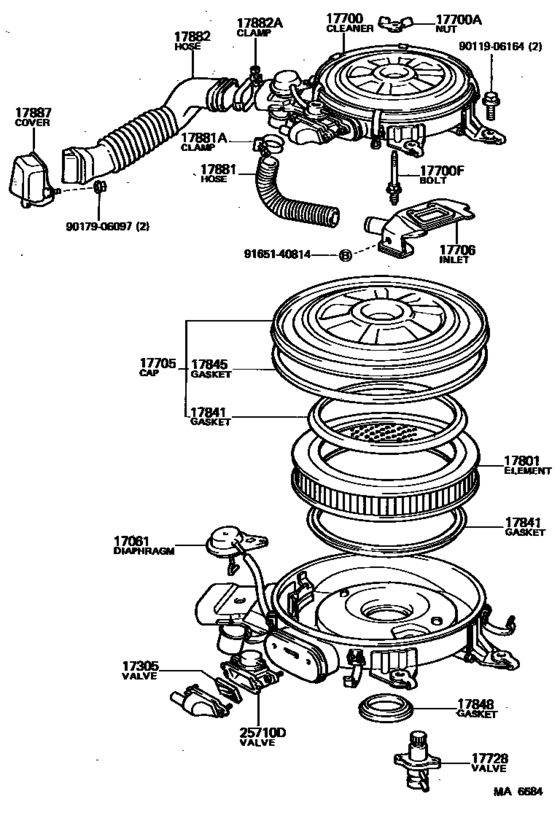

Air Cleaner ([05.1983 - 05.1985] (8305-8505)3AU) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- AE85
- grade
- GL
- ENGINE
- 3AU
- TRANSMISSION
- ATM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1983
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-15040 Diaphragm Sub-Assy[05.1983 - 04.1987] 3AU..AE85 |
17061-15040 |
US $51.11 |
||
|
17305
|
17305
17305-15030 Valve Sub-Assy, Reed[05.1983 - 05.1985] 3AU..AE85 |
17305-15030 |
US $56.06 |
||
|
17305
|
17305
17305-16010 Valve Sub-Assy, ReedREED [05.1985 - 04.1987] 3AU..AE85 |
17305-16010 |
US $69.74 |
||
|
17700
|
17700
17700-15150 Cleaner Assy, Air[05.1983 - 05.1985] 3AU..AE85 |
17700-15150 |
US $547.46 |
||
|
17700
|
17700
17700-15220 Cleaner Assy, AirAIR [05.1985 - 04.1987] 3AU..AE85 |
17700-15220 |
US $492.13 |
||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[05.1983 - 05.1985] 3AU..AE85 |
90175-06003 |
from US $1.27 |
||
|
17700A
|
17700A
90175-06011
Nut, Wing(For Air Cleaner)
[05.1985 - 04.1987] 3AU..AE85 |
90175-06011 |
— | ||
|
17700F
|
17700F
90116-06230
Bolt, Stud(For Air Cleaner Setting)
[05.1983 - 05.1985] 3AU..AE85 |
90116-06230 |
— | ||
|
17705
|
17705
17705-15060
Cap Sub-Assy, Air Cleaner
[05.1983 - 05.1985] 3AU..AE85 |
17705-15060 |
— | ||
|
17705
|
17705
17705-15130
Cap Sub-Assy, Air Cleaner
[05.1985 - 04.1987] 3AU..AE85 |
17705-15130 |
— | ||
|
17706
|
17706
17902-16030 Inlet Sub-Assy, Air Cleaner, No.2AIR CLEANER, NO.2 [05.1983 - 04.1987] 3AU..AE85 |
17902-16030 |
US $154.34 |
||
| replacement | |||||
|
17706
|
17706
17902-16031 Inlet Sub-Assy, Air Cleaner, No.2[05.1983 - 04.1987] 3AU..AE85 |
17902-16031 |
US $154.34 |
||
|
17728
|
17728
17728-13030 Valve, Thermostatic[05.1985 - 04.1987] 3AU..AE85 |
17728-13030 |
US $90.27 |
||
|
17728
|
17728
17728-15040 Valve, Thermostatic[05.1983 - 05.1985] 3AU..AE85 |
17728-15040 |
US $90.27 |
||
|
17801
|
17801
17801-10030
Element Sub-Assy, Air Cleaner Filter
[05.1985 - 04.1987] 3AU..AE85 |
17801-10030 |
— | ||
| replacement | |||||
|
17801
|
17801
17801-11100 Element Sub-Assy, Air Cleaner Filter[05.1985 - 04.1987] 3AU..AE85 |
17801-11100 |
from US $17.30 |
||
|
17801
|
17801
17801-15010 Element Sub-Assy, Air Cleaner Filter[05.1983 - 05.1985] 3AU..AE85 |
17801-15010 |
US $22.34 |
||
|
17841
|
17841
17841-15010
Gasket, Filter Element
[05.1983 - 05.1985] 3AU..AE85 |
17841-15010 |
— | ||
|
17841
|
17841
17845-10020
Gasket, Filter Element
[05.1985 - 04.1987] 3AU..AE85 |
17845-10020 |
— | ||
|
17845
|
17845
17845-61011
Gasket(For Bottom Air Cleaner Filter Case)
[05.1983 - 05.1985] 3AU..AE85 *G,L=1060 |
17845-61011 |
— | ||
|
17848
|
17848
17848-15010
Gasket, Air Cleaner To Carburetor
[05.1985 - 04.1987] 3AU..AE85 |
17848-15010 |
— | ||
|
17848
|
17848
90430-63001
Gasket, Air Cleaner To Carburetor
[05.1983 - 05.1985] 3AU..AE85 |
90430-63001 |
— | ||
| replacement | |||||
|
17848
|
17848
17848-10020
Gasket, Air Cleaner To Carburetor
[05.1983 - 05.1985] 3AU..AE85 |
17848-10020 |
— | ||
|
17881
|
17881
17881-63010
Hose, Air Cleaner, No.1
[05.1983 - 02.1985] 3AU..AE85 |
17881-63010 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-74040
Hose, Air Cleaner, No.1
[05.1983 - 02.1985] 3AU..AE85 |
17881-74040 |
— | ||
|
17881
|
17881
17881-74040
Hose, Air Cleaner, No.1
[02.1985 - 04.1987] 3AU..AE85 |
17881-74040 |
— | ||
|
17881A
|
17881A
96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)[05.1983 - 04.1987] 3AU..AE85 |
96111-10460 |
from US $2.98 |
||
|
17882
|
17882
17881-15060
Hose, Air Cleaner, No.2
[05.1983 - 04.1987] 3AU..AE85 |
17881-15060 |
— | ||
|
17882A
|
17882A
90460-01005 Clamp(For Air Cleaner Hose, No.2)[05.1983 - 04.1987] 3AU..AE85 |
90460-01005 |
US $4.40 |
||
|
17887
|
17887
58405-12020 Cover, Air Cleaner HoseAIR CLEANER HOSE [05.1983 - 05.1985] 3AU..AE85 |
58405-12020 |
US $18.64 |
||
|
25710D
|
25710D
25710-15050
Valve Assy, Air Switching
[05.1985 - 04.1987] 3AU..AE85 |
25710-15050 |
— | ||
|
25710D
|
25710D
25710-15070 Valve Assy, Air Switching[05.1983 - 05.1985] 3AU..AE85 |
25710-15070 |
US $88.82 |
||
|
9011906164
|
9011906164
90119-06164
New Genuine Part
|
90119-06164 |
— | ||
| replacement | |||||
|
9011906164
|
9011906164
91631-40620 New Genuine Part |
91631-40620 |
US $2.56 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
