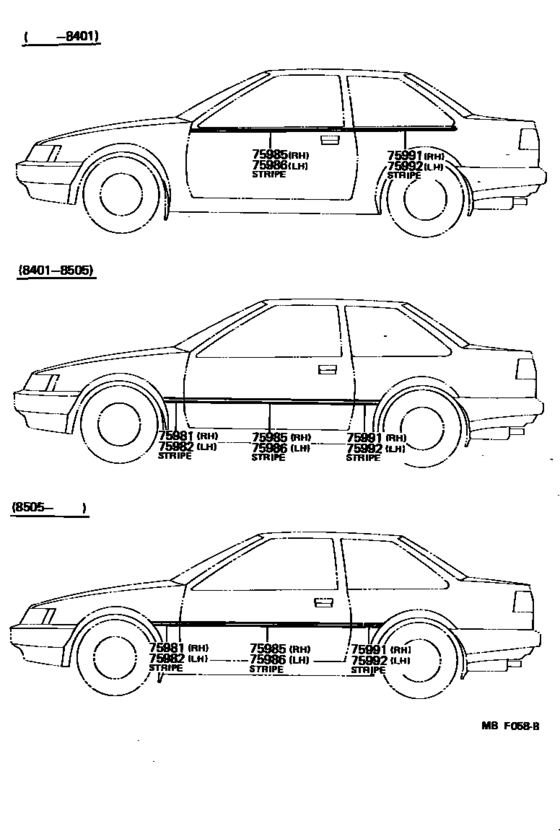

Body Stripe ([05.1983 - ] (8305- )GL) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- AE85
- grade
- GL
- ENGINE
- 3AU
- TRANSMISSION
- ATM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1983
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75981
|
75981
75981-12470-02 Stripe, Front Fender, Rh No.1FRONT FENDER, RH NO.1 [01.1984 - 05.1985] AE85..GL RED & BLUE,BLUE/RED |
75981-12470-02 |
US $22.71 |
||
|
75981
|
75981
75981-12470-03 Stripe, Front Fender, Rh No.1FRONT FENDER, RH NO.1 [01.1984 - 05.1985] AE85..GL LIGHT GRAY & BLUE,BLUE/LIGHT GRAY |
75981-12470-03 |
US $22.71 |
||
|
75981
|
75981
75981-12471-06 Stripe, Front Fender, Rh No.1FRONT FENDER, RH NO.1 [05.1985 - 04.1987] AE85..GL ORANGE & GOLD,ORANGE/GOLD |
75981-12471-06 |
US $23 |
||
|
75982
|
75982
75982-12470-02 Stripe, Front Fender, Lh No.1FRONT FENDER, LH NO.1 [01.1984 - 05.1985] AE85..GL RED & BLUE,BLUE/RED |
75982-12470-02 |
US $22.71 |
||
|
75982
|
75982
75982-12470-03 Stripe, Front Fender, Lh No.1FRONT FENDER, LH NO.1 [01.1984 - 05.1985] AE85..GL LIGHT GRAY & BLUE,BLUE/LIGHT GRAY |
75982-12470-03 |
US $22.71 |
||
|
75982
|
75982
75982-12471-06 Stripe, Front Fender, Lh No.1FRONT FENDER, LH NO.1 [05.1985 - 04.1987] AE85..GL ORANGE & GOLD,ORANGE/GOLD |
75982-12471-06 |
US $23 |
||
|
75985
|
75985
75985-12320
Stripe, Front Door, Rh
[05.1983 - 01.1984] AE85..GL |
75985-12320 |
— | ||
|
75985
|
75985
75985-12330-02 Stripe, Front Door, RhFRONT DOOR, RH [01.1984 - 05.1985] AE85..GL RED & BLUE,BLUE/RED |
75985-12330-02 |
US $122.30 |
||
|
75985
|
75985
75985-12330-03 Stripe, Front Door, RhFRONT DOOR, RH [01.1984 - 05.1985] AE85..GL LIGHT GRAY & BLUE,BLUE/LIGHT GRAY |
75985-12330-03 |
US $122.30 |
||
|
75985
|
75985
75985-12331-06 Stripe, Front Door, RhFRONT DOOR, RH [05.1985 - 04.1987] AE85..GL ORANGE & GOLD,ORANGE/GOLD |
75985-12331-06 |
US $123.76 |
||
|
75986
|
75986
75986-12310
Stripe, Front Door, Lh
[05.1983 - 01.1984] AE85..GL |
75986-12310 |
— | ||
|
75986
|
75986
75986-12320-02 Stripe, Front Door, LhFRONT DOOR, LH [01.1984 - 05.1985] AE85..GL RED & BLUE,BLUE/RED |
75986-12320-02 |
US $122.30 |
||
|
75986
|
75986
75986-12320-03 Stripe, Front Door, LhFRONT DOOR, LH [01.1984 - 05.1985] AE85..GL LIGHT GRAY & BLUE,BLUE/LIGHT GRAY |
75986-12320-03 |
US $122.30 |
||
|
75986
|
75986
75986-12321-06 Stripe, Front Door, LhFRONT DOOR, LH [05.1985 - 04.1987] AE85..GL ORANGE & GOLD,ORANGE/GOLD |
75986-12321-06 |
US $123.76 |
||
|
75991
|
75991
75991-12410
Stripe, Quarter, Rh No.1
[05.1983 - 01.1984] AE85..GL |
75991-12410 |
— | ||
|
75991
|
75991
75991-12420-02
Stripe, Quarter, Rh No.1
[01.1984 - 05.1985] AE85..GL RED & BLUE,BLUE/RED |
75991-12420-02 |
— | ||
|
75991
|
75991
75991-12420-03 Stripe, Quarter, Rh No.1QUARTER, RH NO.1 [01.1984 - 05.1985] AE85..GL LIGHT GRAY & BLUE,BLUE/LIGHT GRAY |
75991-12420-03 |
US $28.10 |
||
|
75991
|
75991
75991-12421-06 Stripe, Quarter, Rh No.1QUARTER, RH NO.1 [05.1985 - 04.1987] AE85..GL ORANGE & GOLD,ORANGE/GOLD |
75991-12421-06 |
US $31.01 |
||
|
75992
|
75992
75992-12390
Stripe, Quarter, Lh No.1
[05.1983 - 01.1984] AE85..GL |
75992-12390 |
— | ||
|
75992
|
75992
75992-12400-02
Stripe, Quarter, Lh No.1
[01.1984 - 05.1985] AE85..GL RED & BLUE,BLUE/RED |
75992-12400-02 |
— | ||
|
75992
|
75992
75992-12400-03 Stripe, Quarter, Lh No.1QUARTER, LH NO.1 [01.1984 - 05.1985] AE85..GL LIGHT GRAY & BLUE,BLUE/LIGHT GRAY |
75992-12400-03 |
US $28.10 |
||
|
75992
|
75992
75992-12401-06 Stripe, Quarter, Lh No.1QUARTER, LH NO.1 [05.1985 - 04.1987] AE85..GL ORANGE & GOLD,ORANGE/GOLD |
75992-12401-06 |
US $31.01 |
