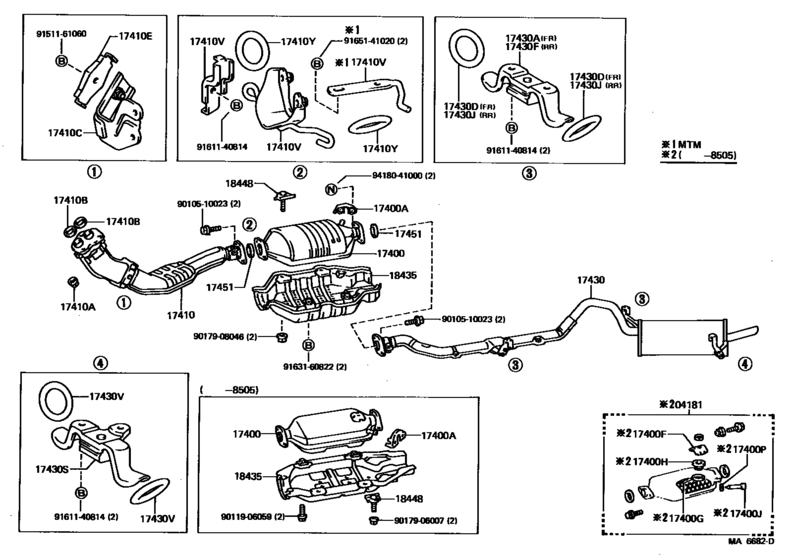

Exhaust Pipe ([05.1983 - ] (8305- )3AU) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- AE85
- grade
- GL
- ENGINE
- 3AU
- TRANSMISSION
- ATM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1983
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04181
|
04181
04181-41030 Pellet Kit[05.1983 - 05.1985] 3AU..AE85 |
04181-41030 |
US $658.11 |
||
|
17400
|
17400
17400-15040 Converter Assy, W/catalyst[05.1983 - 05.1985] 3AU..AE85 |
17400-15040 |
US $790.61 |
||
|
17400
|
17400
18450-15080 Converter Assy, W/catalyst[05.1985 - 04.1987] 3AU..AE85 |
18450-15080 |
US $1,035.22 |
||
| replacement | |||||
|
17400
|
17400
18450-74320 Converter Assy, W/catalyst[05.1985 - 04.1987] 3AU..AE85 |
18450-74320 |
US $1,195.38 |
||
|
17400A
|
17400A
18491-63010 Flange, Thermosenser Inlet[05.1985 - 04.1987] 3AU..AE85 |
18491-63010 |
US $11.68 |
||
|
17400A
|
17400A
18491-64010 Flange, Thermosenser Inlet[05.1983 - 05.1985] 3AU..AE85 |
18491-64010 |
US $10.48 |
||
|
17400F
|
17400F
18493-38011 Plate, Catalyzer Inlet Plug Lock[05.1983 - 05.1985] 3AU..AE85 |
18493-38011 |
US $3.93 |
||
|
17400G
|
17400G
18494-38010 Gasket, Catalyzer Inlet[05.1983 - 05.1985] 3AU..AE85 |
18494-38010 |
US $8.30 |
||
|
17400H
|
17400H
90341-24093 Plug, W/head Straight Screw(For Catalyzer Inlet)[05.1983 - 05.1985] 3AU..AE85 |
90341-24093 |
US $6.41 |
||
|
17400J
|
17400J
18492-45010 Guide, Catalytic Converter Sensor[05.1983 - 05.1985] 3AU..AE85 |
18492-45010 |
US $5.82 |
||
|
17400P
|
17400P
90430-08252 Gasket(For Catalytic Converter Sensor Guide)[05.1983 - 05.1985] 3AU..AE85 |
90430-08252 |
US $3.84 |
||
|
17410
|
17410
17410-15170 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [05.1983 - 05.1985] 3AU..AE85 |
17410-15170 |
US $492.13 |
||
|
17410
|
17410
17410-15220 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [05.1985 - 04.1987] 3AU..AE85 |
17410-15220 |
US $492.13 |
||
|
17410A
|
17410A
90179-10010 Nut, Exhaust Pipe Set Stud Bolt[05.1983 - 04.1984] 3AU,4AGEU..AE8# |
90179-10010 |
from US $1.38 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[04.1984 - 04.1987] 3AU,4AGEU..AE8# |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[04.1984 - 04.1987] 3AU,4AGEU..AE8# |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06001
Gasket(For Manifold Extension)
[05.1983 - 04.1987] 3AU..AE85 |
90917-06001 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06038 Gasket, Exhaust Pipe[05.1983 - 04.1987] 3AU..AE85 |
90917-06038 |
from US $2.34 |
||
|
17410C
|
17410C
17571-15110 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [05.1983 - 04.1987] 3AU..AE85 |
17571-15110 |
US $55.18 |
||
|
17410E
|
17410E
90917-04046 Clamp No.1, Exhaust Pipe Front (For Front)[05.1983 - 04.1987] 3AU..AE85 |
90917-04046 |
US $12.38 |
||
|
17410V
|
17410V
17503-15070 Bracket, Exhaust Pipe Front (For Rear)EXHAUST PIPE FRONT (FOR REAR) [05.1983 - 04.1987] 3AU..AE85 CTR |
17503-15070 |
US $33.20 |
||
|
17410V
|
17410V
17587-15010 Bracket, Exhaust Pipe Front (For Rear)EXHAUST PIPE FRONT (FOR REAR) [05.1983 - 04.1987] 3AU..AE85 RH |
17587-15010 |
US $17.33 |
||
|
17410Y
|
17410Y
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[05.1983 - 04.1987] 3AU,4AGEU..AE8# |
90301-36001 |
from US $5.05 |
||
|
17430
|
17430
17430-15240 Pipe Assy, Exhaust, Tail[05.1983 - 05.1985] 3AU..AE85..4FC |
17430-15240 |
US $521.25 |
||
|
17430
|
17430
17430-15340 Pipe Assy, Exhaust, TailEXHAUST, TAIL [05.1985 - 04.1987] 3AU..AE85 |
17430-15340 |
US $521.25 |
||
|
17430A
|
17430A
17506-13020
Bracket, Exhaust Tail Pipe(For Front)
[05.1983 - 04.1987] 3AU,4AGEU..AE8# |
17506-13020 |
— | ||
|
17430D
|
17430D
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[05.1983 - 04.1987] 3AU,4AGEU..AE8# |
90301-36001 |
from US $5.05 |
||
|
17430F
|
17430F
17506-13020
Bracket, Exhaust Tail Pipe(For Front)
[05.1983 - 04.1987] 3AU,4AGEU..AE8# |
17506-13020 |
— | ||
|
17430J
|
17430J
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[05.1983 - 04.1987] 3AU..AE85 |
90301-34207 |
US $9.92 |
||
|
17430S
|
17430S
17508-13010
Bracket, Exhaust Tail Pipe(For Center)
[05.1983 - 04.1987] 3AU,4AGEU..AE8# |
17508-13010 |
— | ||
|
17430V
|
17430V
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[05.1983 - 04.1987] 3AU..AE85 |
90301-34207 |
US $9.92 |
||
|
17451
|
17451
90917-06004
Gasket(For Manifold Extension)
[05.1983 - 05.1985] 3AU..AE85 RR |
90917-06004 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06039 Gasket, Exhaust Pipe[05.1983 - 05.1985] 3AU..AE85 RR |
90917-06039 |
from US $2.36 |
||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[05.1985 - 04.1987] 3AU..AE85 RR |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[05.1985 - 04.1987] 3AU..AE85 RR |
90917-06045 |
from US $1.70 |
||
|
17451
|
17451
90917-06018 Gasket, Exhaust Pipe[05.1983 - 04.1987] 3AU..AE85 FR |
90917-06018 |
US $6.26 |
||
| replacement | |||||
|
17451
|
17451
90917-06046 Gasket, Exhaust Pipe[05.1983 - 04.1987] 3AU..AE85 FR |
90917-06046 |
from US $9.28 |
||
|
18435
|
18435
18407-15020 Protector, Catalytic Converter[05.1985 - 04.1987] 3AU,4AGEU..AE8# |
18407-15020 |
US $67.56 |
||
| replacement | |||||
|
18435
|
18435
18407-15021 Protector, Catalytic Converter[05.1985 - 04.1987] 3AU,4AGEU..AE8# |
18407-15021 |
US $68 |
||
|
18435
|
18435
18407-25011 Protector, Catalytic Converter[05.1983 - 05.1985] 3AU..AE85 |
18407-25011 |
US $71.78 |
||
|
18448
|
18448
18439-15030 Bracket, Converter Protector, Rh[05.1985 - 04.1987] 3AU,4AGEU..AE8# |
18439-15030 |
US $6.41 |
||
|
18448
|
18448
18448-26020 Bracket, Converter Protector, Center[05.1983 - 05.1985] 3AU..AE85 |
18448-26020 |
US $9.92 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9011906059
|
9011906059
90119-06059 New Genuine Part |
90119-06059 |
US $1.60 |
||
| replacement | |||||
|
9011906059
|
9011906059
91621-B0625 New Genuine Part |
91621-B0625 |
US $0.96 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017908046
|
9017908046
90179-08046 New Genuine Part |
90179-08046 |
US $3.20 |
||
|
9151161060
|
9151161060
91511-61060 Bolt(For Transaxle Case & Engine Setting) |
91511-61060 |
US $3.20 |
||
| replacement | |||||
|
9151161060
|
9151161060
91512-61060 Bolt(For Transaxle Case & Engine Setting) |
91512-61060 |
US $3.52 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9163160822
|
9163160822
91631-60822 BOLT |
91631-60822 |
US $1.12 |
||
|
9165141020
|
9165141020
91651-41020 BOLT W-WASHER |
91651-41020 |
from US $1.44 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.60 |
||
