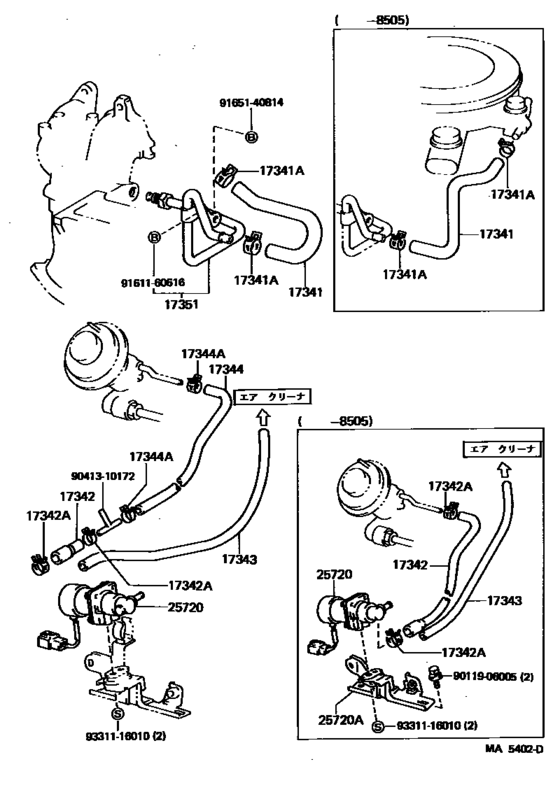

Manifold Air Injection System ([05.1983 - ] (8305- )3AU) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- AE85
- grade
- GL
- ENGINE
- 3AU
- TRANSMISSION
- ATM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1983
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341
|
17341
17341-15050 Hose, No.1(For Air Injection System)[05.1983 - 05.1985] 3AU..AE85 |
17341-15050 |
US $26.06 |
||
|
17341
|
17341
17341-15120
Hose, No.1(For Air Injection System)
[05.1985 - 04.1987] 3AU..AE85 |
17341-15120 |
— | ||
|
17341A
|
17341A
90467-23003
Clip(For Ventilation Hose)
[05.1983 - 04.1987] 3AU..AE85 |
90467-23003 |
— | ||
| replacement | |||||
|
17341A
|
17341A
96134-42300 Clip Or Clamp(For Ventilation Hose)[05.1983 - 04.1987] 3AU..AE85 |
96134-42300 |
US $1.44 |
||
|
17342
|
17342
17342-15010
Hose, No.2(For Air Injection System)
[05.1983 - 05.1985] 3AU..AE85 |
17342-15010 |
— | ||
|
17342
|
17342
90910-05183 Hose, No.2(For Air Injection System)NO.2(FOR AIR INJECTION SYSTEM) [05.1985 - 04.1987] 3AU..AE85 |
90910-05183 |
US $7.13 |
||
|
17342A
|
17342A
90467-15004 Clip(For Ventilation Hose No.2)[05.1985 - 04.1987] 3AU..AE85 |
90467-15004 |
US $3.84 |
||
|
17342A
|
17342A
96132-31000
Clip(For Ventilation Tube)
[05.1983 - 05.1985] 3AU..AE85 |
96132-31000 |
— | ||
| replacement | |||||
|
17342A
|
17342A
96132-41500 Clip(For Ventilation Tube)[05.1983 - 05.1985] 3AU..AE85 |
96132-41500 |
from US $1.44 |
||
|
17343
|
17343
90445-14085 Hose, No.3(For Air Injection System)NO.3(FOR AIR INJECTION SYSTEM) [05.1983 - 05.1985] 3AU..AE85 |
90445-14085 |
US $7.28 |
||
|
17343
|
17343
90445-14142 Hose, No.3(For Air Injection System)NO.3(FOR AIR INJECTION SYSTEM) [05.1985 - 04.1987] 3AU..AE85 |
90445-14142 |
US $13.69 |
||
|
17344
|
17344
90910-05184 Hose, No.4(For Air Injection System)NO.4(FOR AIR INJECTION SYSTEM) [05.1985 - 04.1987] 3AU..AE85 |
90910-05184 |
US $7.13 |
||
|
17344A
|
17344A
90467-13027 Clamp Or Clip(For Water By-Pass Hose No.2)[05.1985 - 04.1987] 3AU..AE85 VALVE SIDE |
90467-13027 |
US $3.20 |
||
| replacement | |||||
|
17344A
|
17344A
96132-51300 Clip(For Ventilation Hose No.2)[05.1985 - 04.1987] 3AU..AE85 VALVE SIDE |
96132-51300 |
from US $1.92 |
||
|
17344A
|
17344A
90467-15012 Clip Or Clamp(For Ventilation Hose)[05.1985 - 04.1987] 3AU..AE85 3WAY SIDE |
90467-15012 |
US $3.20 |
||
|
17351
|
17351
17306-15030 Manifold, Air Injection[05.1983 - 04.1987] 3AU..AE85 |
17306-15030 |
US $104.83 |
||
|
25720
|
25720
25704-15010 Valve Assy, Electric Air Control[05.1983 - 04.1987] 3AU..AE85 |
25704-15010 |
US $449.90 |
||
|
25720A
|
25720A
25724-15020
Bracket, Electric Air Control Valve
[05.1983 - 05.1985] 3AU..AE85 |
25724-15020 |
— | ||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9041310172
|
9041310172
90413-10172 New Genuine Part |
90413-10172 |
US $8.30 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $1.19 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9331116010
|
9331116010
93311-16010 Screw |
93311-16010 |
US $2.56 |
||
