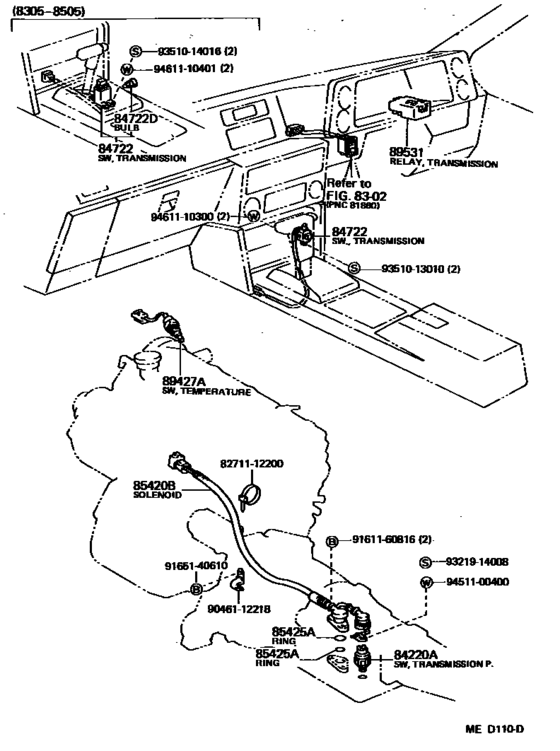

Overdrive & Electronic Controlled Transmission ([05.1983 - ] (8305- )AE85..4FC) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- AE85
- grade
- GL
- ENGINE
- 3AU
- TRANSMISSION
- ATM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1983
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84220A
|
84220A
84220-30050
Switch Assy, Transmission Position Indicator
[05.1983 - 05.1985] AE85..4FC |
84220-30050 |
— | ||
|
84722
|
84722
84722-14060
Switch, Transmission Control
[05.1983 - 05.1985] AE85..4FC |
84722-14060 |
— | ||
|
84722
|
84722
84722-14070-01 Switch, Transmission ControlTRANSMISSION CONTROL [05.1985 - 04.1987] AE85..4FC BLACK,BLACK,TRIM2# |
84722-14070-01 |
US $75.71 |
||
| replacement | |||||
|
84722
|
84722
84722-14070-11
Switch, Transmission Control
[05.1985 - 04.1987] AE85..4FC BLACK,BLACK,TRIM2# |
84722-14070-11 |
— | ||
|
84722D
|
84722D
90981-11024 Bulb (For Column Shift Position Indicator Lamp)[05.1983 - 05.1985] AE85..4FC １２Ｖ １．４Ｗ |
90981-11024 |
US $4.80 |
||
|
85420B
|
85420B
85420-12040 Solenoid Assy, Transmission[05.1983 - 05.1985] AE85..4FC |
85420-12040 |
US $158.70 |
||
|
85420B
|
85420B
85420-12050
Solenoid Assy, Transmission
[05.1985 - 04.1987] AE85..4FC |
85420-12050 |
— | ||
|
85425A
|
85425A
90301-11001 Ring, O (For Transmission Oil Filler Plug)[05.1983 - 04.1987] AE85..4FC ID=11 |
90301-11001 |
US $2.56 |
||
|
85425A
|
85425A
90301-23001 Ring, O (For Transmission Solenoid)[05.1983 - 04.1987] AE85..4FC ID=23 |
90301-23001 |
US $5.24 |
||
|
89427A
|
89427A
89427-14060 Switch, Temperature[05.1983 - 04.1987] AE85..4FC |
89427-14060 |
US $82.99 |
||
|
89531
|
89531
89531-14050 Relay, Transmission Control[05.1983 - 04.1987] AE85..4FC |
89531-14050 |
US $62.32 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
9046112218
|
9046112218
90461-12218 New Genuine Part |
90461-12218 |
US $4.51 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9321914008
|
9321914008
93219-14008 Screw, W/washer(For Bearing Cover Setting) |
93219-14008 |
from US $2.08 |
||
|
9351013010
|
9351013010
93510-13010 Bolt Or Pin (For Shift Lever Knob Setting) |
93510-13010 |
US $1.76 |
||
|
9351014016
|
9351014016
93510-14016 New Genuine Part |
93510-14016 |
US $2.18 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
|
9461110401
|
9461110401
94611-10401 New Genuine Part |
94611-10401 |
US $1.31 |
||
