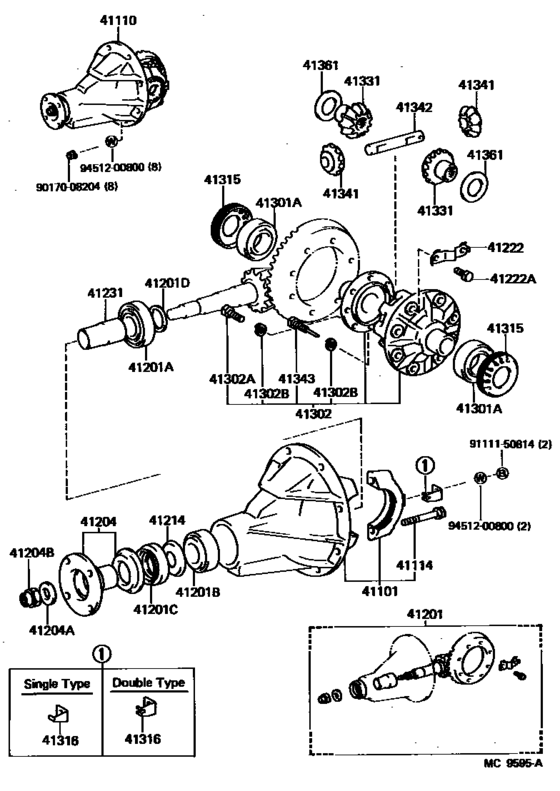

Rear Axle Housing & Differential ([05.1983 - ] (8305- )AE85) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- AE85
- grade
- GL
- ENGINE
- 3AU
- TRANSMISSION
- ATM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1983
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41101
|
41101
41101-20011
Carrier Sub-Assy, Differential, Rear
[05.1983 - 04.1987] AE85 |
41101-20011 |
— | ||
|
41110
|
41110
41110-12031
Carrier Assy, Differential, Rear
[05.1983 - 04.1987] AE85..4FC *AXC=S312 |
41110-12031 |
— | ||
|
41114
|
41114
90105-10008
Bolt, Hexagon(For Differential Bearing Cap Setting)
[05.1983 - 04.1987] AE85 |
90105-10008 |
— | ||
|
41201
|
41201
41201-19188
Final Gear Kit, Differential, Rear
[05.1983 - 04.1987] AE85..4FC |
41201-19188 |
— | ||
|
41201A
|
41201A
90368-33021
Bearing (For Rear Drive Pinion Rear)
[05.1983 - 04.1987] AE85 |
90368-33021 |
— | ||
|
41201B
|
41201B
90368-30002 Bearing (For Rear Drive Pinion Front)[05.1983 - 04.1987] AE8# |
90368-30002 |
from US $33.14 |
||
|
41201C
|
41201C
90311-38015 Seal, Oil (For Rear Differential Carrier)[05.1983 - 04.1987] AE8# |
90311-38015 |
from US $5.12 |
||
|
41201D
|
41201D
90209-33038 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [05.1983 - 04.1987] AE85 厚さ＝２．５２,T=2.52 |
90209-33038 |
US $4.95 |
||
|
41201D
|
41201D
90209-33039 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [05.1983 - 04.1987] AE85 厚さ＝２．５５,T=2.55 |
90209-33039 |
US $4.95 |
||
|
41201D
|
41201D
90209-33040 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [05.1983 - 04.1987] AE85 厚さ＝２．５８,T=2.58 |
90209-33040 |
US $4.95 |
||
|
41201D
|
41201D
90209-33041 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [05.1983 - 04.1987] AE85 厚さ＝２．６１,T=2.61 |
90209-33041 |
US $4.95 |
||
|
41201D
|
41201D
90209-33042 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [05.1983 - 04.1987] AE85 厚さ＝２．６４,T=2.64 |
90209-33042 |
US $4.95 |
||
|
41201D
|
41201D
90209-33043 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [05.1983 - 04.1987] AE85 厚さ＝２．６７,T=2.67 |
90209-33043 |
US $4.95 |
||
|
41201D
|
41201D
90209-33044 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [05.1983 - 04.1987] AE85 厚さ＝２．７０,T=2.70 |
90209-33044 |
US $4.95 |
||
|
41201D
|
41201D
90209-33045 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [05.1983 - 04.1987] AE85 厚さ＝２．７３,T=2.73 |
90209-33045 |
US $4.95 |
||
|
41201D
|
41201D
90209-33046 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [05.1983 - 04.1987] AE85 厚さ＝２．７６,T=2.76 |
90209-33046 |
US $4.95 |
||
|
41204
|
41204
41204-20012
Flange Sub-Assy, Rear Drive Pinion Companion, Rear
[05.1983 - 04.1987] AE85 |
41204-20012 |
— | ||
|
41204A
|
41204A
90201-18485 Washer, Plate (For Transfer Gear)[05.1983 - 04.1987] AE8# |
90201-18485 |
US $5.28 |
||
|
41204B
|
41204B
90179-18001 Nut (For Transfer Gear)[05.1983 - 04.1987] AE8# ＃ |
90179-18001 |
from US $4 |
||
|
41214
|
41214
41214-20020 Slinger, Rear Differential Drive Pinion Oil[05.1983 - 04.1987] AE8# |
41214-20020 |
US $9.92 |
||
|
41222
|
41222
41222-20021 Plate, Rear Differential Ring Gear Set Bolt LockREAR DIFFERENTIAL RING GEAR SET BOLT LOCK [05.1983 - 04.1987] AE85 |
41222-20021 |
US $3.49 |
||
|
41222A
|
41222A
90109-10015 Bolt (For Rear Differential Ring Gear Set)[05.1983 - 04.1987] AE85 |
90109-10015 |
US $3.20 |
||
|
41231
|
41231
41231-20020
Spacer, Rear Differential Drive Pinion Bearing
[05.1983 - 04.1987] AE85 |
41231-20020 |
— | ||
|
41301A
|
41301A
90368-34001 Bearing[12.1985 - 04.1987] AE85 NSK |
90368-34001 |
from US $29.79 |
||
|
41301A
|
41301A
90368-34020
Bearing(For Rear Differential Case)
[05.1983 - 04.1987] AE85 KOYO |
90368-34020 |
— | ||
|
41301A
|
41301A
90368-34039
Bearing(For Rear Differential Case)
[05.1983 - 12.1985] AE85 NSK |
90368-34039 |
— | ||
| replacement | |||||
|
41301A
|
41301A
90368-34001 Bearing[05.1983 - 12.1985] AE85 NSK |
90368-34001 |
from US $29.79 |
||
|
41302
|
41302
41301-22013 Case Sub-Assy, Rear DifferentialREAR DIFFERENTIAL [05.1983 - 04.1987] AE85 |
41301-22013 |
US $235.87 |
||
|
41302A
|
41302A
90101-08241 Bolt(For Rear Differential Case)[05.1983 - 04.1987] AE85 |
90101-08241 |
US $3.64 |
||
|
41302B
|
41302B
90204-08024 Washer, Spring(For Rear Differential Case)SPRING(FOR REAR DIFFERENTIAL CASE) [05.1983 - 04.1987] AE85 |
90204-08024 |
US $1.89 |
||
|
41315
|
41315
41315-20011 Nut, Rear Differential Bearing AdjustingREAR DIFFERENTIAL BEARING ADJUSTING [05.1983 - 04.1987] AE85 |
41315-20011 |
US $8.59 |
||
|
41316
|
41316
41316-20010
Lock, Rear Differential Bearing Adjusting Nut
[05.1983 - 04.1987] AE85 SINGLE TYPE |
41316-20010 |
— | ||
|
41316
|
41316
41316-20020
Lock, Rear Differential Bearing Adjusting Nut
[05.1983 - 04.1987] AE85 DOUBLE TYPE |
41316-20020 |
— | ||
|
41331
|
41331
41331-22011 Gear, Rear Differential SideREAR DIFFERENTIAL SIDE [05.1983 - 04.1987] AE85 |
41331-22011 |
US $48.78 |
||
|
41341
|
41341
41341-22011 Pinion, Rear DifferentialREAR DIFFERENTIAL [05.1983 - 04.1987] AE85 |
41341-22011 |
US $33.20 |
||
|
41342
|
41342
41342-20010 Shaft, Rear Differential PinionREAR DIFFERENTIAL PINION [05.1983 - 04.1987] AE85 |
41342-20010 |
US $16.02 |
||
|
41343
|
41343
41343-22010 Pin, Rear Differential Pinion ShaftREAR DIFFERENTIAL PINION SHAFT [05.1983 - 04.1987] AE85 |
41343-22010 |
US $3.35 |
||
|
41361
|
41361
41361-12070 Washer, Rear Differential Side Gear Thrust, No.1REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 [05.1983 - 04.1987] AE85 T=1.50 |
41361-12070 |
US $3.64 |
||
|
41361
|
41361
41361-12080 Washer, Rear Differential Side Gear Thrust, No.1REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 [05.1983 - 04.1987] AE85 T=1.55 |
41361-12080 |
US $3.64 |
||
|
41361
|
41361
41361-12090 Washer, Rear Differential Side Gear Thrust, No.1REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 [05.1983 - 04.1987] AE85 T=1.60 |
41361-12090 |
US $3.64 |
||
|
41361
|
41361
41361-12100 Washer, Rear Differential Side Gear Thrust, No.1REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 [05.1983 - 04.1987] AE85 T=1.65 |
41361-12100 |
US $3.64 |
||
|
41361
|
41361
41361-12110 Washer, Rear Differential Side Gear Thrust, No.1REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 [05.1983 - 04.1987] AE85 T=1.70 |
41361-12110 |
US $3.64 |
||
|
41361
|
41361
41361-12120 Washer, Rear Differential Side Gear Thrust, No.1REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 [05.1983 - 04.1987] AE85 T=1.75 |
41361-12120 |
US $3.64 |
||
|
9017008204
|
9017008204
90170-08204 Nut (For Propeller Shaft) |
90170-08204 |
from US $0.84 |
||
|
9111150814
|
9111150814
91111-50814
Bolt (for Transmission Control Cable Bracket)
|
91111-50814 |
— | ||
| replacement | |||||
|
9111150814
|
9111150814
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
