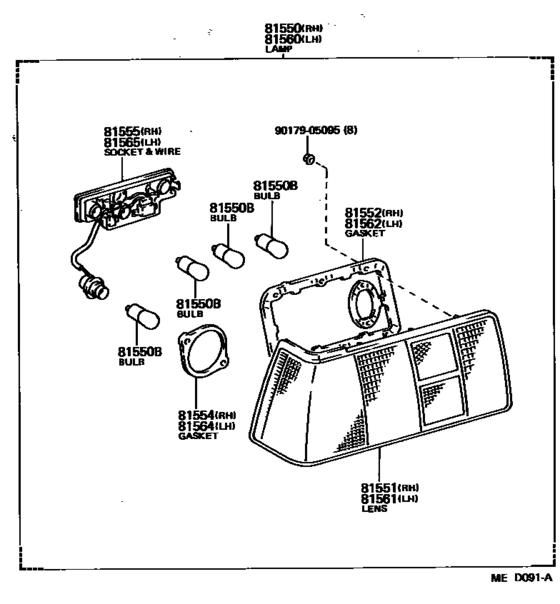

Rear Combination Lamp ([05.1983 - 05.1985] (8305-8505)2D) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- AE85
- grade
- GL
- ENGINE
- 3AU
- TRANSMISSION
- ATM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1983
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-1A262 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [05.1985 - 04.1987] AE8#..2D |
81550-1A262 |
US $339.25 |
||
|
81550
|
81550
81550-80164
Lamp Assy, Rear Combination, Rh
[05.1983 - 07.1983] AE8#..2D |
81550-80164 |
— | ||
|
81550
|
81550
81550-80204
Lamp Assy, Rear Combination, Rh
[07.1983 - 05.1985] AE8#..2D |
81550-80204 |
— | ||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[05.1983 - 04.1987] AE8# １２Ｖ ２３Ｗ,12V 23W(TURN OR BACK) |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[05.1983 - 04.1987] AE8# １２Ｖ ２３Ｗ,12V 23W(TURN OR BACK) |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[05.1983 - 04.1987] AE8# １２Ｖ ２１／５Ｗ,12V 21/5W(STOP,TAIL & PARKING) |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-1A260
Lens, Rear Combination Lamp, Rh
[05.1983 - 07.1983] AE8#..2D |
81551-1A260 |
— | ||
|
81551
|
81551
81551-1A261
Lens, Rear Combination Lamp, Rh
[07.1983 - 05.1985] AE8#..2D |
81551-1A261 |
— | ||
|
81551
|
81551
81551-1A262
Lens, Rear Combination Lamp, Rh
[05.1985 - 04.1987] AE8#..2D |
81551-1A262 |
— | ||
|
81552
|
81552
81552-1A260
Gasket, Rear Combination Lamp Lens, Rh
[05.1983 - 05.1985] AE8#..2D |
81552-1A260 |
— | ||
|
81552
|
81552
81552-1A261 Gasket, Rear Combination Lamp Lens, RhREAR COMBINATION LAMP LENS, RH [05.1985 - 04.1987] AE8#..2D |
81552-1A261 |
US $10.24 |
||
|
81554
|
81554
81554-1A260 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [05.1983 - 05.1985] AE8#..2D |
81554-1A260 |
US $15.58 |
||
|
81554
|
81554
81554-1A261 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [05.1985 - 04.1987] AE8#..2D |
81554-1A261 |
US $17.94 |
||
|
81555
|
81555
81555-1A260 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [05.1983 - 05.1985] AE8#..2D |
81555-1A260 |
US $101.92 |
||
|
81555
|
81555
81555-1A261 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [05.1985 - 04.1987] AE8#..2D |
81555-1A261 |
US $51.40 |
||
|
81560
|
81560
81560-1A262 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [05.1985 - 04.1987] AE8#..2D |
81560-1A262 |
US $339.25 |
||
|
81560
|
81560
81560-80169
Lamp Assy, Rear Combination, Lh
[05.1983 - 07.1983] AE8#..2D |
81560-80169 |
— | ||
|
81560
|
81560
81560-80209
Lamp Assy, Rear Combination, Lh
[07.1983 - 05.1985] AE8#..2D |
81560-80209 |
— | ||
|
81561
|
81561
81561-1A260 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [05.1983 - 07.1983] AE8#..2D |
81561-1A260 |
US $279.55 |
||
|
81561
|
81561
81561-1A261
Lens, Rear Combination Lamp, Lh
[07.1983 - 05.1985] AE8#..2D |
81561-1A261 |
— | ||
|
81561
|
81561
81561-1A262 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [05.1985 - 04.1987] AE8#..2D |
81561-1A262 |
US $281.01 |
||
|
81562
|
81562
81552-1A260
Gasket, Rear Combination Lamp Lens, Rh
[05.1983 - 05.1985] AE8#..2D |
81552-1A260 |
— | ||
|
81562
|
81562
81552-1A261 Gasket, Rear Combination Lamp Lens, RhREAR COMBINATION LAMP LENS, RH [05.1985 - 04.1987] AE8#..2D |
81552-1A261 |
US $10.24 |
||
|
81564
|
81564
81554-1A260 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [05.1983 - 05.1985] AE8#..2D |
81554-1A260 |
US $15.58 |
||
|
81564
|
81564
81554-1A261 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [05.1985 - 04.1987] AE8#..2D |
81554-1A261 |
US $17.94 |
||
|
81565
|
81565
81565-1A260 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [05.1983 - 05.1985] AE8#..2D |
81565-1A260 |
US $43.97 |
||
|
81565
|
81565
81565-1A261 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [05.1985 - 04.1987] AE8#..2D |
81565-1A261 |
US $51.40 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
