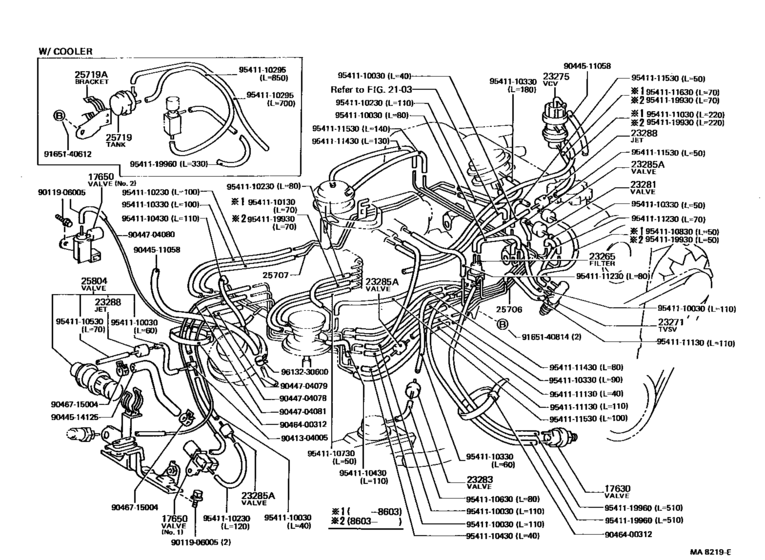

Vacuum Piping ([05.1985 - ] (8505- )3AU) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- AE85
- grade
- GL
- ENGINE
- 3AU
- TRANSMISSION
- ATM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1983
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17630
|
17630
17630-15020 Valve Assy, Air Control[05.1983 - 09.1983] 3AU..AE85 W/PS |
17630-15020 |
US $193.65 |
||
| replacement | |||||
|
17630
|
17630
17630-15021
Valve Assy, Air Control
[05.1983 - 09.1983] 3AU..AE85 W/PS |
17630-15021 |
— | ||
|
17630
|
17630
17630-15021
Valve Assy, Air Control
[09.1983 - 04.1987] 3AU..AE85 W/PS |
17630-15021 |
— | ||
|
17650
|
17650
89570-12220 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [05.1983 - 05.1985] 3AU..AE85 |
89570-12220 |
US $131.04 |
||
|
17650
|
17650
89570-12340
Valve Assy, Vacuum Switching
[05.1985 - 04.1987] 3AU..AE85 NO.1 |
89570-12340 |
— | ||
|
23265
|
23265
90917-11023 Filter, Gas, No.1[05.1983 - 04.1987] 3AU..AE85 |
90917-11023 |
from US $23.41 |
||
|
23271
|
23271
90925-02076
Valve, Thermostatic Vacuum Switching, No.1
[05.1983 - 05.1985] 3AU..AE85 |
90925-02076 |
— | ||
|
23271
|
23271
90925-02078
Valve, Thermostatic Vacuum Switching, No.1
[05.1985 - 04.1987] 3AU..AE85 |
90925-02078 |
— | ||
|
23275
|
23275
90925-03159 Valve, Vacuum Control, No.1[05.1985 - 04.1987] 3AU..AE85 |
90925-03159 |
US $87.36 |
||
|
23281
|
23281
90925-01091 Valve, Vacuum Transmitting, No.1[05.1983 - 04.1987] 3AU..AE85 |
90925-01091 |
US $29.35 |
||
|
23283
|
23283
90925-01095
Valve, Vacuum Transmitting, No.1
[05.1985 - 04.1987] 3AU..AE85 |
90925-01095 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[05.1983 - 04.1987] 3AU..AE85 |
90917-10049 |
from US $6.59 |
||
|
23288
|
23288
90925-01095
Valve, Vacuum Transmitting, No.1
[03.1986 - 04.1987] 3AU..AE85 |
90925-01095 |
— | ||
|
23288
|
23288
90925-04012 Jet, No.1[05.1985 - 03.1986] 3AU..AE85 |
90925-04012 |
US $13.25 |
||
|
23288
|
23288
90925-04013 Jet, No.1[05.1983 - 05.1985] 3AU..AE85 |
90925-04013 |
US $14.12 |
||
|
25706
|
25706
25706-15160
Pipe Sub-Assy, Vacuum Transmitting, No.1
[05.1983 - 11.1983] 3AU..AE85 |
25706-15160 |
— | ||
|
25706
|
25706
25706-15161 Pipe Sub-Assy, Vacuum Transmitting, No.1[11.1983 - 05.1985] 3AU..AE85 |
25706-15161 |
US $75.71 |
||
|
25706
|
25706
25706-15190 Pipe Sub-Assy, Vacuum Transmitting, No.1VACUUM TRANSMITTING, NO.1 [05.1985 - 04.1987] 3AU..AE85 |
25706-15190 |
US $100.46 |
||
|
25707
|
25707
25707-15120 Pipe Sub-Assy, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [05.1983 - 05.1985] 3AU..AE85 |
25707-15120 |
US $74.26 |
||
|
25707
|
25707
25707-15160 Pipe Sub-Assy, Vacuum Transmitting, No.2[05.1985 - 04.1987] 3AU..AE85 |
25707-15160 |
US $32.18 |
||
|
25719
|
25719
25719-15010 Tank, Vacuum Surge[05.1985 - 04.1987] 3AU..AE85 W/COOLER |
25719-15010 |
US $21.84 |
||
|
25719A
|
25719A
44756-12010
Bracket, Vacuum Tank Clamp
[05.1985 - 04.1987] 3AU..AE85 W/COOLER |
44756-12010 |
— | ||
|
25804
|
25804
25804-12010 Valve Set, Vacuum Control[05.1985 - 04.1987] 3AU..AE85 |
25804-12010 |
US $126.67 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9044511058
|
9044511058
90445-11058 New Genuine Part |
90445-11058 |
US $5.53 |
||
|
9044514125
|
9044514125
90445-14125 New Genuine Part |
90445-14125 |
US $5.10 |
||
|
9044704078
|
9044704078
90447-04078 New Genuine Part |
90447-04078 |
US $10.77 |
||
|
9044704079
|
9044704079
90447-04079 New Genuine Part |
90447-04079 |
US $14.56 |
||
|
9044704080
|
9044704080
90447-04080 New Genuine Part |
90447-04080 |
US $4.37 |
||
|
9044704081
|
9044704081
90447-04081 New Genuine Part |
90447-04081 |
US $3.64 |
||
|
9046400312
|
9046400312
90464-00312 New Genuine Part |
90464-00312 |
US $1.31 |
||
|
9046715004
|
9046715004
90467-15004 Clip(For Ventilation Hose No.2) |
90467-15004 |
US $3.84 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.42 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9541110030
|
9541110030
95411-10030
Hose (For Idle Up Device)
|
95411-10030 |
— | ||
| replacement | |||||
|
9541110030
|
9541110030
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110130
|
9541110130
95411-10130
Pipe Or Hose
|
95411-10130 |
— | ||
| replacement | |||||
|
9541110130
|
9541110130
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110230
|
9541110230
95411-10230 Hose, Vacuum, No.2 (For Front Drive Shift) |
95411-10230 |
US $6.70 |
||
| replacement | |||||
|
9541110230
|
9541110230
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110295
|
9541110295
95411-10295 Hose (For Idle Up Device) |
95411-10295 |
US $20.53 |
||
| replacement | |||||
|
9541110295
|
9541110295
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift) |
90999-92004 |
from US $9.46 |
||
|
9541110330
|
9541110330
95411-10330 Hose, Vacuum, No.1 (For Front Drive Shift) |
95411-10330 |
US $6.70 |
||
| replacement | |||||
|
9541110330
|
9541110330
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110430
|
9541110430
95411-10430 Hose (For Idle Up Device) |
95411-10430 |
US $6.84 |
||
| replacement | |||||
|
9541110430
|
9541110430
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110530
|
9541110530
95411-10530 Hose, No.1(For Opener) |
95411-10530 |
US $6.41 |
||
| replacement | |||||
|
9541110530
|
9541110530
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110630
|
9541110630
95411-10630 Hose, Fuel, No.1(For Charcoal Canister) |
95411-10630 |
US $6.70 |
||
| replacement | |||||
|
9541110630
|
9541110630
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110730
|
9541110730
95411-10730 Hose, Vacuum, No.7 (For Heater Or Air Conditioner) |
95411-10730 |
US $6.70 |
||
| replacement | |||||
|
9541110730
|
9541110730
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110830
|
9541110830
95411-10830 Hose, Cruise Control Vacuum |
95411-10830 |
US $6.70 |
||
| replacement | |||||
|
9541110830
|
9541110830
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541111030
|
9541111030
95411-11030 Hose (For Idle Up Device) |
95411-11030 |
US $6.26 |
||
| replacement | |||||
|
9541111030
|
9541111030
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541111130
|
9541111130
95411-11130 Hose, Air |
95411-11130 |
US $8.01 |
||
| replacement | |||||
|
9541111130
|
9541111130
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541111230
|
9541111230
95411-11230 Hose, Vacuum (For Idle Up Device), No.1 |
95411-11230 |
US $6.84 |
||
| replacement | |||||
|
9541111230
|
9541111230
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541111430
|
9541111430
95411-11430 Hose, Vacuum (For Idle Up Device), No.1 |
95411-11430 |
US $6.26 |
||
| replacement | |||||
|
9541111430
|
9541111430
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541111530
|
9541111530
95411-11530 Hose, Air |
95411-11530 |
US $8.01 |
||
| replacement | |||||
|
9541111530
|
9541111530
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541111630
|
9541111630
95411-11630 Hose, Vacuum (For Idle Up Device), No.1 |
95411-11630 |
US $6.84 |
||
| replacement | |||||
|
9541111630
|
9541111630
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.74 |
||
