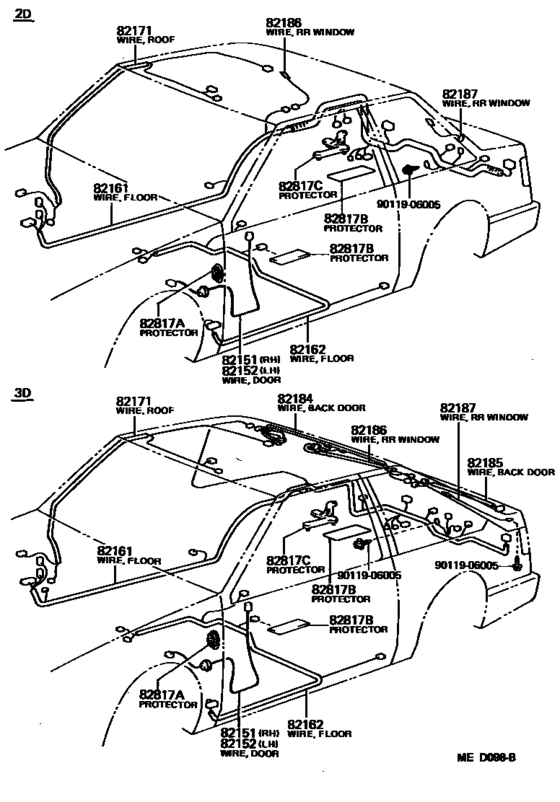

Wiring & Clamp ([05.1983 - ] (8305- )) Diagram Toyota COROLLA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- AE86
- grade
- APX
- ENGINE
- 4AGEU
- TRANSMISSION
- ATM
- Model
- COROLLA LEVIN/COUPE
- From
- 05.1985
- To
- 04.1987
- Gear Shift Type
- 4FC
- No.of Doors
- 3D
- Vehicle Model
- Corolla Levin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82151
|
82151
82151-12041
Wire, Front Door, Rh
[02.1985 - 05.1985] AE8#..APX,GL,SE |
82151-12041 |
— | ||
|
82151
|
82151
82151-12210 Wire, Front Door, RhFRONT DOOR, RH [05.1985 - 04.1987] AE8#..APX,GL,SE |
82151-12210 |
US $31.01 |
||
|
82151
|
82151
82151-12230 Wire, Front Door, RhFRONT DOOR, RH [05.1985 - 04.1987] AE86..APX W/*PW |
82151-12230 |
US $91.73 |
||
|
82152
|
82152
82151-12041
Wire, Front Door, Rh
[02.1985 - 05.1985] AE8#..APX,GL,SE |
82151-12041 |
— | ||
|
82152
|
82152
82151-12210 Wire, Front Door, RhFRONT DOOR, RH [05.1985 - 04.1987] AE8#..APX,GL,SE |
82151-12210 |
US $31.01 |
||
|
82152
|
82152
82152-12180 Wire, Front Door, LhFRONT DOOR, LH [05.1985 - 04.1987] AE86..APX W/*PW |
82152-12180 |
US $61.44 |
||
|
82161
|
82161
82161-12200
Wire, Floor
[05.1983 - 05.1985] AE86..3D |
82161-12200 |
— | ||
|
82161
|
82161
82161-12750
Wire, Floor
[05.1985 - 04.1987] AE86..3D |
82161-12750 |
— | ||
|
82162
|
82162
82162-12210
Wire, Floor, No.2
[05.1983 - 05.1985] AE86 |
82162-12210 |
— | ||
|
82162
|
82162
82162-12570
Wire, Floor, No.2
[05.1985 - 04.1987] AE86..4FC |
82162-12570 |
— | ||
|
82171
|
82171
82171-12100
Wire, Roof, No.1
[05.1983 - 04.1987] AE8# |
82171-12100 |
— | ||
|
82171
|
82171
82171-12110
Wire, Roof, No.1
[05.1983 - 11.1985] AE8#..APX,GT,GTV,SE,SR W/SUN ROOF |
82171-12110 |
— | ||
|
82184
|
82184
82184-12060
Wire, Back Door, No.1
[05.1983 - 05.1985] AE8#..3D W/RR WIPER |
82184-12060 |
— | ||
|
82184
|
82184
82184-12170 Wire, Back Door, No.1BACK DOOR, NO.1 [05.1985 - 04.1987] AE8#..3D |
82184-12170 |
US $49.50 |
||
|
82185
|
82185
82185-12060
Wire, Back Door, No.2
[05.1983 - 05.1985] AE86..3D..APX W/WINDOW ANTENNA |
82185-12060 |
— | ||
|
82185
|
82185
82185-12220 Wire, Back Door, No.2BACK DOOR, NO.2 [05.1985 - 04.1987] AE86..3D..APX W/WINDOW ANTENNA |
82185-12220 |
US $37.56 |
||
|
82186
|
82186
82186-12050
Wire, Rear Window, No.1
[05.1983 - 05.1985] AE86..3D..APX |
82186-12050 |
— | ||
|
82186
|
82186
82186-12120 Wire, Rear Window, No.1REAR WINDOW, NO.1 [05.1985 - 04.1987] AE86..3D..APX |
82186-12120 |
US $13.25 |
||
|
82817B
|
82817B
82817-16100 Protector, Wiring Harness, No.1[05.1983 - 04.1987] AE8# |
82817-16100 |
US $5.53 |
||
|
82817C
|
82817C
82817-12600 Protector, Wiring Harness, No.4WIRING HARNESS, NO.4 [05.1983 - 04.1987] AE8# |
82817-12600 |
US $10.05 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
