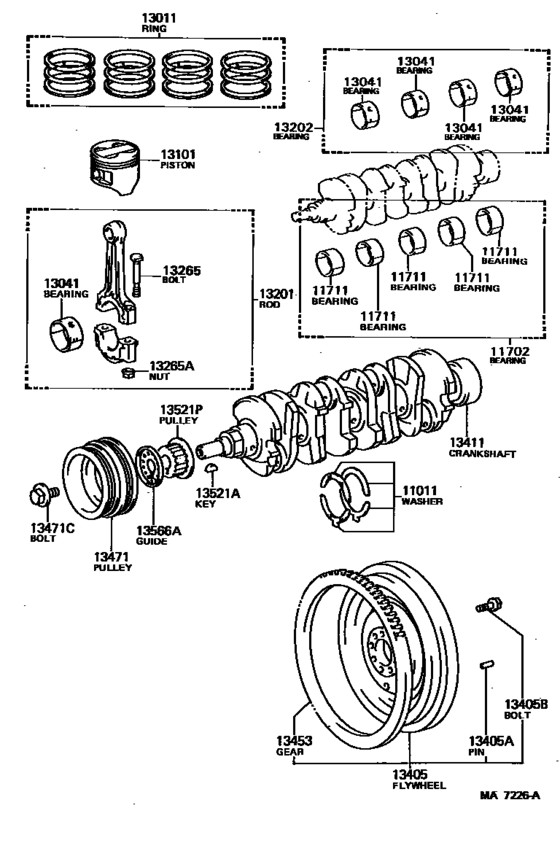

Crankshaft & Piston ([08.1983 - ] (8308- )4AG#) Diagram Toyota COROLLA
- Year
- 1985 - 1986
- Sales region
- General
- Frame
- AE86
- grade
- GT
- ENGINE
- 4AGEC
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 02.1985
- To
- 08.1986
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-15010
Washer Set, Crankshaft Thrust
[05.1983 - 07.1987] 4A,4AC,4AG#..AE86 STD |
11011-15010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-15021 Washer Set, Crankshaft Thrust[05.1983 - 07.1987] 4A,4AC,4AG#..AE86 STD |
11011-15021 |
US $31.46 |
||
|
11702
|
11702
11704-15050 Bearing Set, Crankshaft[05.1983 - 07.1987] 4A,4AC,4AG#..AE86 U/S 0.25,U/S 0.25 |
11704-15050 |
US $301.39 |
||
| replacement | |||||
|
11702
|
11702
11704-16010 Bearing Set, Crankshaft[05.1983 - 07.1987] 4A,4AC,4AG#..AE86 U/S 0.25,U/S 0.25 |
11704-16010 |
US $291.78 |
||
|
11711
|
11711
11701-15050-01 Bearing, Crankshaft[07.1984 - 07.1987] 4A,4AC,4AG#..AE86 MARK"1",MARK 1 |
11701-15050-01 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[07.1984 - 07.1987] 4A,4AC,4AG#..AE86 MARK"1",MARK 1 |
11701-16010-01 |
US $52.14 |
||
|
11711
|
11711
11701-15050-02
Bearing, Crankshaft
[07.1984 - 07.1987] 4A,4AC,4AG#..AE86 MARK"2",MARK 2 |
11701-15050-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[07.1984 - 07.1987] 4A,4AC,4AG#..AE86 MARK"2",MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-15050-03 Bearing, Crankshaft[07.1984 - 07.1987] 4A,4AC,4AG#..AE86 MARK"3",MARK 3 |
11701-15050-03 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[07.1984 - 07.1987] 4A,4AC,4AG#..AE86 MARK"3",MARK 3 |
11701-16010-03 |
from US $20.75 |
||
|
11711
|
11711
11701-15050-04 Bearing, Crankshaft[08.1986 - 07.1987] 4A,4AG#..AE86 MARK"4",MARK 4 |
11701-15050-04 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-04 Bearing, Crankshaft[08.1986 - 07.1987] 4A,4AG#..AE86 MARK"4",MARK 4 |
11701-16010-04 |
US $52.14 |
||
|
11711
|
11711
11701-15050-05 Bearing, Crankshaft[08.1986 - 07.1987] 4A,4AG#..AE86 MARK"5",MARK 5 |
11701-15050-05 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-05 Bearing, Crankshaft[08.1986 - 07.1987] 4A,4AG#..AE86 MARK"5",MARK 5 |
11701-16010-05 |
US $49.62 |
||
|
13011
|
13011
13011-16050 Ring Set, PistonPISTON [08.1983 - 05.1987] 4AGE..AE86;4AGEC..AE86..SDZ STD,STD |
13011-16050 |
US $208.21 |
||
| replacement | |||||
|
13011
|
13011
13011-16180
Ring Set, Piston
[08.1983 - 05.1987] 4AGE..AE86;4AGEC..AE86..SDZ STD,STD |
13011-16180 |
— | ||
|
13011
|
13011
13011-16070
Ring Set, Piston
[04.1985 - 05.1985] 4AGEC..AE86 STD,FRG SPEC,STD |
13011-16070 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-16170 Ring Set, Piston[04.1985 - 05.1985] 4AGEC..AE86 STD,FRG SPEC,STD |
13011-16170 |
US $234.72 |
||
|
13011
|
13011
13013-16050
Ring Set, Piston
[08.1983 - 05.1987] 4AGE..AE86;4AGEC..AE86..SDZ O/S 0.50,O/S 0.50 |
13013-16050 |
— | ||
|
13011
|
13011
13013-16070
Ring Set, Piston
[04.1985 - 05.1985] 4AGEC..AE86 O/S 0.50,FRG SPEC,O/S 0.50 |
13013-16070 |
— | ||
|
13041
|
13041
13041-16040-01 Bearing, Connecting Rod[08.1983 - 07.1987] 4AG#..AE86 MARK"1",MARK 1 |
13041-16040-01 |
US $33.29 |
||
|
13041
|
13041
13041-16040-02 Bearing, Connecting Rod[08.1983 - 07.1987] 4AG#..AE86 MARK"2",MARK 2 |
13041-16040-02 |
US $33.29 |
||
|
13041
|
13041
13041-16040-03 Bearing, Connecting Rod[08.1983 - 07.1987] 4AG#..AE86 MARK"3",MARK 3 |
13041-16040-03 |
US $33.29 |
||
|
13101
|
13101
13101-16020
Piston Sub-Assy, W/pin
[08.1983 - 07.1987] 4AGEC..AE86;4AGE..AE86..GEN,ME STD,STD |
13101-16020 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-16020-02
Piston Sub-Assy, W/pin
[08.1983 - 07.1987] 4AGEC..AE86;4AGE..AE86..GEN,ME STD,STD |
13101-16020-02 |
— | ||
|
13101
|
13101
13103-16020
Piston Sub-Assy, W/pin
[04.1985 - 05.1985] 4AGEC..AE86 FRG SPEC,O/S 0.50 |
13103-16020 |
— | ||
|
13201
|
13201
13201-19065 Rod Sub-Assy, Connecting[08.1983 - 07.1987] 4AG#..AE86 |
13201-19065 |
US $158.70 |
||
| replacement | |||||
|
13201
|
13201
13201-19066 Rod Sub-Assy, Connecting[08.1983 - 07.1987] 4AG#..AE86 |
13201-19066 |
US $147.06 |
||
|
13202
|
13202
13204-16040 Bearing Set, Connecting Rod[08.1983 - 07.1987] 4AG#..AE86 U/S 0.25,U/S 0.25 |
13204-16040 |
US $101.92 |
||
|
13265
|
13265
13265-15020 Bolt, Connecting Rod[07.1983 - 07.1987] 4A,4AC,4AG#..AE86 |
13265-15020 |
US $6.41 |
||
| replacements | |||||
|
13265
|
13265
13265-16010 Bolt, Connecting Rod[07.1983 - 07.1987] 4A,4AC,4AG#..AE86 |
13265-16010 |
US $8 |
||
|
13265
|
13265
90170-09003 Nut, Hexagon(For Connecting Rod Bolt)[07.1983 - 07.1987] 4A,4AC,4AG#..AE86 |
90170-09003 |
US $2.88 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[07.1983 - 07.1987] 4A,4AC,4AG#..AE86 |
90170-09001 |
US $2.72 |
||
|
13405
|
13405
13405-19145
Flywheel Sub-Assy
[08.1983 - 07.1987] 4AG#..AE86 |
13405-19145 |
— | ||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[05.1983 - 07.1987] 4A,4AC,4AG#..AE86..5F L=18,OD=8 |
90250-08120 |
from US $1.07 |
||
|
13405B
|
13405B
90105-10076 Bolt, Flywheel Setting[08.1983 - 07.1987] 4AG#..AE86 |
90105-10076 |
US $5.60 |
||
|
13411
|
13411
13401-16010
Crankshaft
[08.1983 - 07.1987] 4AG#..AE86 |
13401-16010 |
— | ||
|
13453
|
13453
13453-10010 Gear, Flywheel Ring[05.1983 - 07.1987] 4A,4AC,4AG#..AE86..5F |
13453-10010 |
US $57.26 |
||
|
13471
|
13471
13470-16010
Pulley, Crankshaft
[08.1983 - 07.1987] 4AG#..AE86 |
13470-16010 |
— | ||
|
13471C
|
13471C
90105-12012 Bolt(For Crankshaft Pulley Set)[05.1983 - 01.1986] 4A,4AC,4AG#..AE86 |
90105-12012 |
US $4.89 |
||
|
13471C
|
13471C
90119-12101 Bolt(For Crankshaft Pulley Set)[01.1986 - 08.1986] 4A,4AG#..AE86 |
90119-12101 |
US $5.53 |
||
|
13471C
|
13471C
90119-12127 Bolt(For Crankshaft Pulley Set)[08.1986 - 07.1987] 4A,4AG#..AE86 |
90119-12127 |
US $3.84 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[05.1983 - 09.1986] 4A,4AC,4AG#..AE86 |
90280-05010 |
from US $1.89 |
||
|
13521P
|
13521P
13521-16010 Pulley, Crankshaft Timing[08.1983 - 07.1987] 4AG#..AE86 |
13521-16010 |
from US $19.85 |
||
|
13566A
|
13566A
13566-15010 Guide, Timing Belt[05.1983 - 07.1987] 4A,4AC,4AG#..AE86 |
13566-15010 |
from US $5.44 |
||
