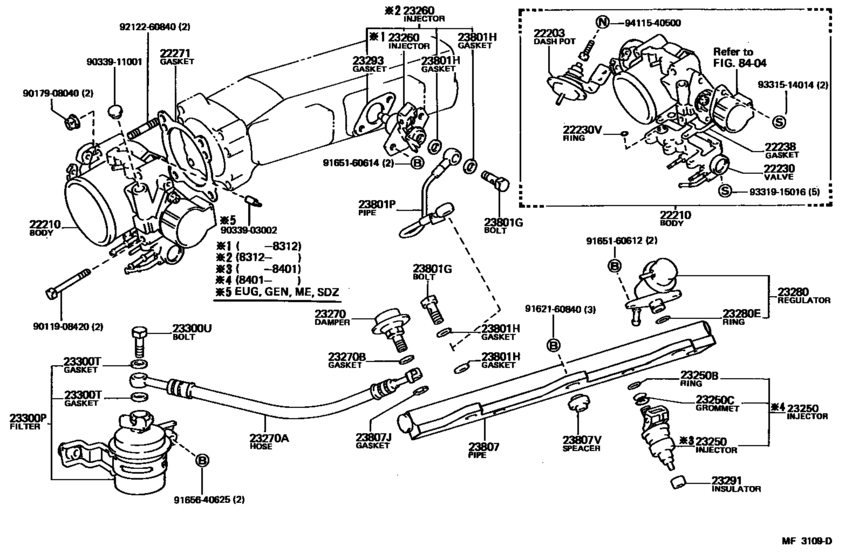

Fuel Injection System ([08.1983 - ] (8308- )4AG#) Diagram Toyota COROLLA
- Year
- 1985 - 1986
- Sales region
- General
- Frame
- AE86
- grade
- GT
- ENGINE
- 4AGEC
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 02.1985
- To
- 08.1986
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22203
|
22203
22203-16010 Dash Pot Sub-Assy(For Throttle Body)[08.1983 - 07.1987] 4AG#..AE86 |
22203-16010 |
US $81.54 |
||
|
22210
|
22210
22210-16080 Body Assy, ThrottleTHROTTLE [02.1985 - 08.1986] 4AGEC..AE86 |
22210-16080 |
US $675.58 |
||
| replacement | |||||
|
22210
|
22210
22210-16081
Body Assy, Throttle
[02.1985 - 08.1986] 4AGEC..AE86 |
22210-16081 |
— | ||
|
22210
|
22210
22210-16081
Body Assy, Throttle
[08.1986 - 04.1987] 4AGEC..AE86 |
22210-16081 |
— | ||
|
22230
|
22230
22230-16020
Valve Assy, Auxiliary Air
[08.1983 - 07.1987] 4AG#..AE86 |
22230-16020 |
— | ||
|
22230V
|
22230V
96711-19009 Ring, O(For Oil Level Gage Guide)[08.1983 - 07.1987] 4AG#..AE86 |
96711-19009 |
US $1.92 |
||
|
22238
|
22238
22238-16010
Gasket, Auxiliary Air Valve
[08.1983 - 07.1987] 4AG#..AE86 |
22238-16010 |
— | ||
| replacement | |||||
|
22238
|
22238
22238-16020 Gasket, Auxiliary Air Valve[08.1983 - 07.1987] 4AG#..AE86 |
22238-16020 |
US $4.32 |
||
|
22271
|
22271
22271-16020 Gasket, Throttle Body[08.1983 - 07.1987] 4AG#..AE86 |
22271-16020 |
US $6.24 |
||
|
23250
|
23250
23209-34010
Injector Assy, Fuel
[02.1985 - 04.1987] 4AGEC..AE86 |
23209-34010 |
— | ||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[08.1983 - 07.1987] 4AG#..AE86 |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.1983 - 07.1987] 4AG#..AE86 |
90480-13005 |
from US $2.50 |
||
|
23260
|
23260
23260-19035 Injector Assy, Cold Start Fuel[12.1983 - 07.1987] 4AG#..AE86 |
23260-19035 |
US $145.60 |
||
| replacement | |||||
|
23260
|
23260
23260-19036
Injector Assy, Cold Start Fuel
[12.1983 - 07.1987] 4AG#..AE86 |
23260-19036 |
— | ||
|
23270
|
23270
23270-52011
Damper Assy, Fuel Pressure Pulsation
[08.1983 - 01.1987] 4AG#..AE86 |
23270-52011 |
— | ||
| replacement | |||||
|
23270
|
23270
23207-16020
Damper Assy, Fuel Pressure Pulsation
[08.1983 - 01.1987] 4AG#..AE86 |
23207-16020 |
— | ||
|
23270A
|
23270A
90923-01278 Hose(For Pulsation Damper)[08.1983 - 07.1987] 4AG#..AE86 |
90923-01278 |
US $131.72 |
||
|
23270B
|
23270B
23232-28010
Gasket(For Fuel Pump Hose)
[08.1983 - 07.1987] 4AG#..AE86 |
23232-28010 |
— | ||
| replacement | |||||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[08.1983 - 07.1987] 4AG#..AE86 |
23232-41081 |
from US $1.40 |
||
|
23280
|
23280
23280-16020
Regulator Assy, Fuel Pressure
[08.1983 - 07.1987] 4AG#..AE86 |
23280-16020 |
— | ||
|
23280E
|
23280E
90301-07001 Ring, O(For Fuel Injector)[08.1983 - 07.1987] 4AG#..AE86 |
90301-07001 |
from US $2.93 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.1983 - 07.1987] 4AG#..AE86 |
23291-41010 |
from US $2.87 |
||
|
23293
|
23293
23293-74010
Gasket, Cold Start Injector
[08.1983 - 07.1987] 4AG#..AE86 |
23293-74010 |
— | ||
| replacement | |||||
|
23293
|
23293
23293-42010 Gasket, Cold Start Injector[08.1983 - 07.1987] 4AG#..AE86 |
23293-42010 |
US $5.60 |
||
|
23300P
|
23300P
23300-19025 Filter, Fuel(For Efi)FUEL(FOR EFI) [08.1983 - 07.1987] 4AG#..AE86 |
23300-19025 |
US $108.04 |
||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[08.1983 - 07.1987] 4AG#..AE86 |
90430-12005 |
from US $0.70 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1983 - 07.1987] 4AG#..AE86 |
90401-12097 |
from US $3.08 |
||
|
23801G
|
23801G
90401-08003 Bolt, Union[08.1983 - 07.1987] 4AG#..AE86 |
90401-08003 |
US $2.24 |
||
|
23801H
|
23801H
90430-08005 Gasket[08.1983 - 07.1987] 4AG#..AE86 |
90430-08005 |
US $2.24 |
||
|
23801P
|
23801P
23901-16030
Pipe Sub-Assy, Fuel, No.1
[08.1983 - 07.1987] 4AG#..AE86 |
23901-16030 |
— | ||
|
23807
|
23807
23807-16020 Pipe Sub-Assy, Fuel Delivery[08.1983 - 06.1985] 4AG#..AE86 |
23807-16020 |
US $183.46 |
||
| replacement | |||||
|
23807
|
23807
23807-16021 Pipe Sub-Assy, Fuel Delivery[08.1983 - 06.1985] 4AG#..AE86 |
23807-16021 |
US $182 |
||
|
23807
|
23807
23807-16030
Pipe Sub-Assy, Fuel Delivery
[06.1985 - 07.1987] 4AG#..AE86 |
23807-16030 |
— | ||
| replacement | |||||
|
23807
|
23807
23807-16021 Pipe Sub-Assy, Fuel Delivery[06.1985 - 07.1987] 4AG#..AE86 |
23807-16021 |
US $182 |
||
|
23807J
|
23807J
90201-12109 Washer, Air Bleeder Nipple[08.1983 - 07.1987] 4AG#..AE86 |
90201-12109 |
from US $1.38 |
||
|
23807V
|
23807V
90561-08009 Spacer, No.1(For Delivery Pipe)[08.1983 - 07.1987] 4AG#..AE86 |
90561-08009 |
US $3.20 |
||
|
9011908420
|
9011908420
90119-08420
New Genuine Part
|
90119-08420 |
— | ||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9033911001
|
9033911001
90339-11001
New Genuine Part
|
90339-11001 |
— | ||
|
9162160840
|
9162160840
91621-60840 Bolt(For Rocker Support Set) |
91621-60840 |
from US $0.96 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9165640625
|
9165640625
91656-40625 New Genuine Part |
91656-40625 |
US $1.89 |
||
| replacement | |||||
|
9165640625
|
9165640625
91651-60625 New Genuine Part |
91651-60625 |
US $2.56 |
||
|
9212260840
|
9212260840
92122-60840
Bolt, Stud(Manifold To Throttle Body)
|
92122-60840 |
— | ||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
|
9331915016
|
9331915016
93319-15016 Screw, Cover Set, No.1 |
93319-15016 |
from US $1.41 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
