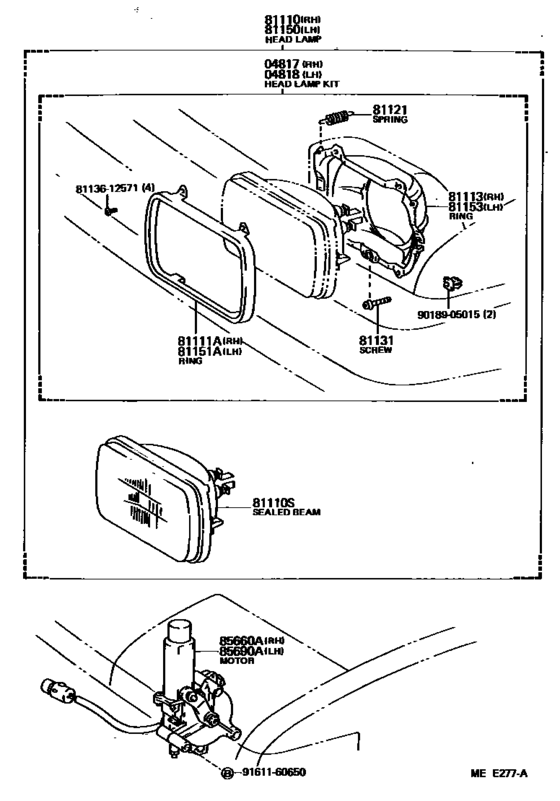

Headlamp ([08.1983 - ] (8308- )ME) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Europe
- Frame
- AE86
- grade
- GT
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- ME
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04817
|
04817
04817-12070
Headlamp Kit, W/o Sealed Beam, Rh
[08.1983 - 07.1987] AE86..ME |
04817-12070 |
— | ||
|
04818
|
04818
04818-12070 Headlamp Kit, W/o Sealed Beam, LhW/O SEALED BEAM, LH [08.1983 - 07.1987] AE86..ME |
04818-12070 |
US $75.71 |
||
|
81110
|
81110
81110-80327 Headlamp Assy, RhRH [08.1983 - 07.1987] AE86..ME |
81110-80327 |
US $189.28 |
||
|
81110S
|
81110S
90981-04020
Sealed Beam Unit, No.1
[08.1983 - 07.1987] AE86..ME 12V 65/35W,*HAL,*WB,SEALED BEAM UNIT=KOITO |
90981-04020 |
— | ||
|
81111A
|
81111A
81111-16020 Ring, Sealed Beam Retaining[08.1983 - 07.1987] AE86..ME |
81111-16020 |
from US $22.91 |
||
|
81113
|
81113
81153-14670
Ring, Sealed Beam Mounting, No.1 Rh
[08.1983 - 07.1987] AE86..ME |
81153-14670 |
— | ||
|
81121
|
81121
81121-14670 Spring, Headlamp Tension[08.1983 - 07.1987] AE86..ME |
81121-14670 |
from US $4.80 |
||
|
81131
|
81131
81119-1A270 Screw, Headlamp AdjustingHEADLAMP ADJUSTING [08.1983 - 07.1987] AE86..ME |
81119-1A270 |
US $2.88 |
||
|
81150
|
81150
81150-80324 Headlamp Assy, LhLH [08.1983 - 07.1987] AE86..ME |
81150-80324 |
US $189.28 |
||
|
81151A
|
81151A
81111-16020 Ring, Sealed Beam Retaining[08.1983 - 07.1987] AE86..ME |
81111-16020 |
from US $22.91 |
||
|
81153
|
81153
81113-14670
Ring, Sealed Beam Mounting, No.1 Rh
[08.1983 - 07.1987] AE86..ME |
81113-14670 |
— | ||
|
85660A
|
85660A
85660-12010 Motor Assy, Light Retractor, RhLIGHT RETRACTOR, RH [08.1983 - 07.1987] AE86..ME |
85660-12010 |
US $394.58 |
||
|
85690A
|
85690A
85690-12010 Motor Assy, Light Retractor, LhLIGHT RETRACTOR, LH [08.1983 - 07.1987] AE86..ME |
85690-12010 |
US $394.58 |
||
|
8113612571
|
8113612571
81136-12571 Screw |
81136-12571 |
from US $2.18 |
||
|
9018905015
|
9018905015
90189-05015 Nut, Headlamp Self Locking |
90189-05015 |
US $2.56 |
||
|
9161160650
|
9161160650
91611-60650 BOLTWWASHER |
91611-60650 |
US $1.46 |
