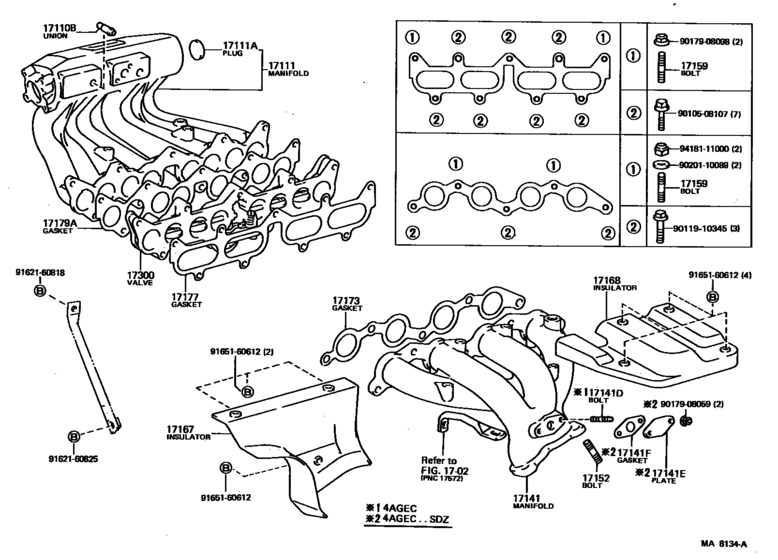

Manifold ([08.1983 - ] (8308- )4AG#) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Europe
- Frame
- AE86
- grade
- GT
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- ME
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17110B
|
17110B
90405-10009 Union(For Positive Crankcase Ventilation)[08.1983 - 07.1987] 4AG#..AE86 |
90405-10009 |
US $2.62 |
||
|
17111
|
17111
17101-16010
Manifold, Intake
[08.1983 - 07.1987] 4AGE..AE86 |
17101-16010 |
— | ||
|
17111A
|
17111A
96411-43500 Plug, Tight, No.1[08.1983 - 07.1987] 4AG#..AE86 OD=35 |
96411-43500 |
from US $3.88 |
||
|
17141
|
17141
17141-16050
Manifold, Exhaust
[08.1983 - 03.1985] 4AGE..AE86 |
17141-16050 |
— | ||
| replacements | |||||
|
17141
|
17141
17141-16051
Manifold, Exhaust
[08.1983 - 03.1985] 4AGE..AE86 |
17141-16051 |
— | ||
|
17141
|
17141
17167-16021
Insulator, Exhaust Manifold Heat, No.1
[08.1983 - 03.1985] 4AGE..AE86 |
17167-16021 |
— | ||
|
17141
|
17141
17141-16051
Manifold, Exhaust
[03.1985 - 07.1987] 4AGE..AE86 |
17141-16051 |
— | ||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[05.1983 - 07.1987] 4A,4AC,4AG#..AE86 |
90116-10058 |
from US $2.44 |
||
|
17159
|
17159
90116-08218
Bolt, Stud(For Manifold To Cylinder Head)
[02.1985 - 07.1987] 4AG#..AE86 INTAKE MANIFOLD |
90116-08218 |
— | ||
|
17159
|
17159
90116-10037 Bolt, Stud(For Manifold To Cylinder Head)[03.1984 - 07.1987] 4AG#..AE86 EXHAUST MANIFOLD |
90116-10037 |
US $4.16 |
||
|
17159
|
17159
92122-60850 Bolt, Stud(For Manifold To Cylinder Head)[08.1983 - 02.1985] 4AGE..AE86 INTAKE MANIFOLD |
92122-60850 |
US $4.02 |
||
|
17159
|
17159
92122-61028 Bolt, Stud(For Manifold To Cylinder Head)[08.1983 - 03.1984] 4AGE..AE86 EXHAUST MANIFOLD |
92122-61028 |
US $5.28 |
||
|
17167
|
17167
17167-16020
Insulator, Exhaust Manifold Heat, No.1
[08.1983 - 03.1985] 4AG#..AE86 |
17167-16020 |
— | ||
| replacement | |||||
|
17167
|
17167
17167-16021
Insulator, Exhaust Manifold Heat, No.1
[08.1983 - 03.1985] 4AG#..AE86 |
17167-16021 |
— | ||
|
17167
|
17167
17167-16021
Insulator, Exhaust Manifold Heat, No.1
[03.1985 - 07.1987] 4AG#..AE86 |
17167-16021 |
— | ||
|
17168
|
17168
17168-16010
Insulator, Exhaust Manifold Heat, No.2
[08.1983 - 07.1987] 4AG#..AE86 |
17168-16010 |
— | ||
|
17173
|
17173
17173-16010
Gasket, Exhaust Manifold To Head
[08.1983 - 07.1987] 4AG#..AE86 |
17173-16010 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-16011 Gasket, Exhaust Manifold To Head[08.1983 - 07.1987] 4AG#..AE86 |
17173-16011 |
US $21.13 |
||
|
17177
|
17177
17177-16010
Gasket, Intake Manifold To Head, No.1
[08.1983 - 03.1984] 4AGE..AE86 |
17177-16010 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-16012 Gasket, Intake Manifold To Head, No.1[08.1983 - 03.1984] 4AGE..AE86 |
17177-16012 |
US $8.16 |
||
|
17177
|
17177
17177-16011
Gasket, Intake Manifold To Head, No.1
[03.1984 - 06.1985] 4AG#..AE86 |
17177-16011 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-16012 Gasket, Intake Manifold To Head, No.1[03.1984 - 06.1985] 4AG#..AE86 |
17177-16012 |
US $8.16 |
||
|
17177
|
17177
17177-16012 Gasket, Intake Manifold To Head, No.1[06.1985 - 07.1987] 4AG#..AE86 |
17177-16012 |
US $8.16 |
||
|
17179A
|
17179A
17171-16010
Gasket, Intake Manifold, No.2
[08.1983 - 03.1984] 4AGE..AE86 |
17171-16010 |
— | ||
| replacement | |||||
|
17179A
|
17179A
17171-16012 Gasket, Intake Manifold, No.2[08.1983 - 03.1984] 4AGE..AE86 |
17171-16012 |
US $9.60 |
||
|
17179A
|
17179A
17171-16011 Gasket, Intake Manifold, No.2[03.1984 - 06.1985] 4AG#..AE86 |
17171-16011 |
US $7.43 |
||
| replacement | |||||
|
17179A
|
17179A
17171-16012 Gasket, Intake Manifold, No.2[03.1984 - 06.1985] 4AG#..AE86 |
17171-16012 |
US $9.60 |
||
|
17179A
|
17179A
17171-16012 Gasket, Intake Manifold, No.2[06.1985 - 07.1987] 4AG#..AE86 |
17171-16012 |
US $9.60 |
||
|
17300
|
17300
17300-16010
Valve Assy, Intake Air Control
[08.1983 - 03.1984] 4AGE..AE86 |
17300-16010 |
— | ||
| replacement | |||||
|
17300
|
17300
17300-16011
Valve Assy, Intake Air Control
[08.1983 - 03.1984] 4AGE..AE86 |
17300-16011 |
— | ||
|
17300
|
17300
17300-16011
Valve Assy, Intake Air Control
[03.1984 - 07.1987] 4AG#..AE86 |
17300-16011 |
— | ||
|
9010508107
|
9010508107
90105-08107 New Genuine Part |
90105-08107 |
US $3.04 |
||
|
9011910345
|
9011910345
90119-10345 BOLT |
90119-10345 |
US $2.56 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9017908098
|
9017908098
90179-08098 New Genuine Part |
90179-08098 |
US $1.44 |
||
|
9020110089
|
9020110089
90201-10089
Washer, Plate(For Steering Tilt Lever)
|
90201-10089 |
— | ||
| replacement | |||||
|
9020110089
|
9020110089
90201-10283 Washer, Plate(For Steering Tilt Lever) |
90201-10283 |
US $2.88 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9162160825
|
9162160825
91621-60825 BOLT |
91621-60825 |
US $1.93 |
||
| replacement | |||||
|
9162160825
|
9162160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
|
9418111000
|
9418111000
94181-11000 Nut(For Backing Plate To Rear Axle Housing Setting) |
94181-11000 |
US $2.88 |
||
