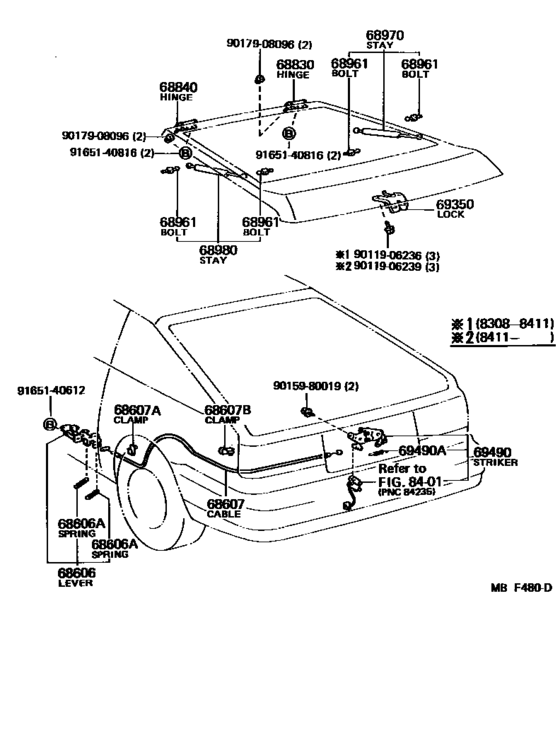

Back Door Lock & Handle ([08.1983 - ] (8308- )3D) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE86
- grade
- SR5
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla CP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68606
|
68606
64606-12070
Lever Sub-Assy, Luggage Door Lock Open
[08.1983 - 07.1987] AE86..3D |
64606-12070 |
— | ||
|
68606A
|
68606A
90506-09004 Spring, Tension(For Luggage Door Lock Open Lever)[08.1983 - 07.1987] AE86..3D |
90506-09004 |
US $2.62 |
||
|
68607
|
68607
64607-12240
Cable Sub-Assy, Back Door Lock Control
[08.1983 - 07.1987] AE86..3D |
64607-12240 |
— | ||
|
68607A
|
68607A
90467-12009 Clamp, No.1(For Luggage Door Lock Control Cable)[08.1983 - 07.1987] AE86..3D |
90467-12009 |
from US $3.16 |
||
|
68607B
|
68607B
90463-10338
Clamp(For Hood Lock Control Cable)
[08.1983 - 07.1987] AE86..3D |
90463-10338 |
— | ||
|
68830
|
68830
68801-20020
Hinge Assy, Back Door, Rh
[08.1983 - 07.1987] AE86..3D |
68801-20020 |
— | ||
| replacement | |||||
|
68830
|
68830
68801-20021
Hinge Assy, Back Door, Rh
[08.1983 - 07.1987] AE86..3D |
68801-20021 |
— | ||
|
68840
|
68840
68801-20020
Hinge Assy, Back Door, Rh
[08.1983 - 07.1987] AE86..3D |
68801-20020 |
— | ||
| replacement | |||||
|
68840
|
68840
68801-20021
Hinge Assy, Back Door, Rh
[08.1983 - 07.1987] AE86..3D |
68801-20021 |
— | ||
|
68961
|
68961
68961-14020
Bolt, Back Door Stay
[08.1983 - 09.1984] AE86..3D |
68961-14020 |
— | ||
| replacement | |||||
|
68961
|
68961
68961-16010
Bolt, Back Door Stay
[08.1983 - 09.1984] AE86..3D |
68961-16010 |
— | ||
|
68961
|
68961
68961-16010
Bolt, Back Door Stay
[09.1984 - 03.1986] AE86..3D |
68961-16010 |
— | ||
|
68961
|
68961
68961-20051 Bolt, Hood Support, No.1[03.1986 - 07.1987] AE86..3D |
68961-20051 |
from US $5.69 |
||
|
68970
|
68970
68950-19435
Stay Assy, Back Door, Rh
[08.1983 - 08.1985] AE86..3D..SR5 |
68950-19435 |
— | ||
|
68970
|
68970
68950-19445 Stay Assy, Back Door, RhBACK DOOR, RH [08.1983 - 08.1985] AE86..3D..SR5 W/RR WIPER |
68950-19445 |
US $127.28 |
||
|
68970
|
68970
68950-19455 Stay Assy, Back Door, RhBACK DOOR, RH [08.1985 - 07.1987] AE86..3D W/RR WIPER |
68950-19455 |
US $125.22 |
||
|
68980
|
68980
68950-19435
Stay Assy, Back Door, Rh
[08.1983 - 08.1985] AE86..3D..SR5 |
68950-19435 |
— | ||
|
68980
|
68980
68950-19445 Stay Assy, Back Door, RhBACK DOOR, RH [08.1983 - 08.1985] AE86..3D..SR5 W/RR WIPER |
68950-19445 |
US $127.28 |
||
|
68980
|
68980
68950-19455 Stay Assy, Back Door, RhBACK DOOR, RH [08.1985 - 07.1987] AE86..3D W/RR WIPER |
68950-19455 |
US $125.22 |
||
|
69350
|
69350
69350-12060
Lock Assy, Back Door
[08.1983 - 07.1987] AE86..3D |
69350-12060 |
— | ||
|
69490
|
69490
69430-12190
Striker Assy, Back Door Lock
[08.1983 - 03.1985] AE86..3D |
69430-12190 |
— | ||
| replacement | |||||
|
69490
|
69490
69430-12191 Striker Assy, Back Door Lock[08.1983 - 03.1985] AE86..3D |
69430-12191 |
US $68.14 |
||
|
69490
|
69490
69430-12191 Striker Assy, Back Door Lock[03.1985 - 07.1987] AE86..3D |
69430-12191 |
US $68.14 |
||
|
69490A
|
69490A
90506-18052 Spring(For Back Door Lock Striker)[04.1985 - 07.1987] AE86..3D |
90506-18052 |
US $3.64 |
||
|
9011906236
|
9011906236
90119-06236 New Genuine Part |
90119-06236 |
US $0.96 |
||
|
9011906239
|
9011906239
90119-06239 New Genuine Part |
90119-06239 |
US $1.60 |
||
| replacement | |||||
|
9011906239
|
9011906239
90119-06236 New Genuine Part |
90119-06236 |
US $0.96 |
||
|
9015980019
|
9015980019
90159-80019 New Genuine Part |
90159-80019 |
US $1.60 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.46 |
||
| replacement | |||||
|
9017908096
|
9017908096
90080-18061 New Genuine Part |
90080-18061 |
US $4.47 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
