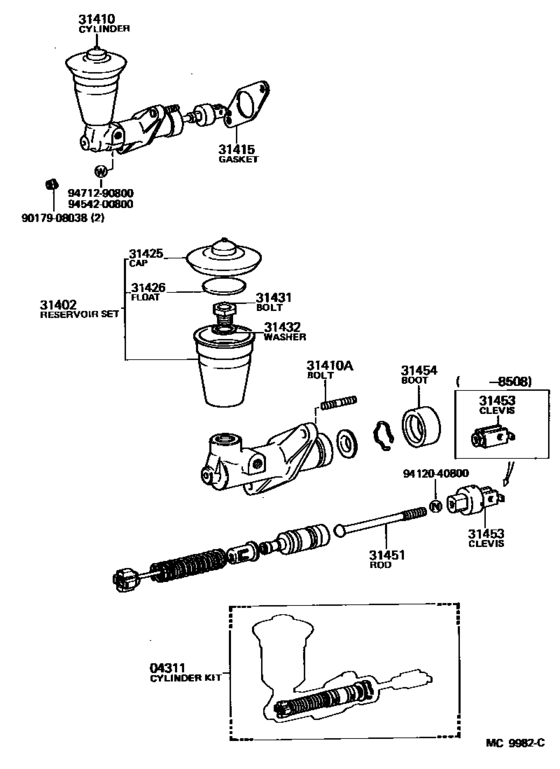

Clutch Master Cylinder ([08.1983 - ] (8308- )5F) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- U.S.A.
- Frame
- AE86
- grade
- SR5
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla CP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04311
|
04311
04311-12020
Cylinder Kit, Clutch Master
[08.1983 - 08.1985] AE86..5F |
04311-12020 |
— | ||
| replacement | |||||
|
04311
|
04311
04311-12023 Cylinder Kit, Clutch Master[08.1983 - 08.1985] AE86..5F |
04311-12023 |
US $35.57 |
||
|
04311
|
04311
04311-14030
Cylinder Kit, Clutch Master
[11.1986 - 04.1987] AE86..5F |
04311-14030 |
— | ||
| replacement | |||||
|
04311
|
04311
04311-60080 Cylinder Kit, Clutch Master[11.1986 - 04.1987] AE86..5F |
04311-60080 |
from US $35.57 |
||
|
04311
|
04311
04311-26040 Cylinder Kit, Clutch Master[08.1985 - 11.1986] AE86..5F |
04311-26040 |
US $25.63 |
||
| replacement | |||||
|
04311
|
04311
04311-26041
Cylinder Kit, Clutch Master
[08.1985 - 11.1986] AE86..5F |
04311-26041 |
— | ||
|
31402
|
31402
31402-30030 Reservoir Sub-Assy, Clutch Master Cylinder[08.1983 - 07.1987] AE86..5F |
31402-30030 |
US $29.88 |
||
|
31410
|
31410
31410-12090
Cylinder Assy, Clutch Master
[08.1983 - 08.1985] AE86..5F |
31410-12090 |
— | ||
| replacement | |||||
|
31410
|
31410
31410-12092
Cylinder Assy, Clutch Master
[08.1983 - 08.1985] AE86..5F |
31410-12092 |
— | ||
|
31410
|
31410
31410-12180 Cylinder Assy, Clutch Master[08.1985 - 04.1987] AE86..5F |
31410-12180 |
US $170.35 |
||
| replacement | |||||
|
31410
|
31410
31410-12182 Cylinder Assy, Clutch Master[08.1985 - 04.1987] AE86..5F |
31410-12182 |
US $168.90 |
||
|
31410
|
31410
31410-12181 Cylinder Assy, Clutch Master[04.1987 - 07.1987] AE86..5F |
31410-12181 |
US $170.35 |
||
| replacement | |||||
|
31410
|
31410
31410-12182 Cylinder Assy, Clutch Master[04.1987 - 07.1987] AE86..5F |
31410-12182 |
US $168.90 |
||
|
31410A
|
31410A
90116-08146 Bolt(For Clutch Master Cylinder Setting)[08.1983 - 07.1987] AE86..5F |
90116-08146 |
US $1.40 |
||
|
31415
|
31415
31415-30030 Gasket, Clutch Master Cylinder[08.1983 - 07.1987] AE86..5F |
31415-30030 |
from US $3.20 |
||
|
31425
|
31425
47230-20040 Cap, Clutch Master Cylinder Reservoir Filler[08.1983 - 07.1987] AE86..5F |
47230-20040 |
from US $9.36 |
||
|
31426
|
31426
31426-30011
Float, Clutch Master Cylinder Reservoir
[08.1983 - 07.1987] AE86..5F |
31426-30011 |
— | ||
|
31431
|
31431
47231-30010 Bolt, Clutch Master Cylinder Reservoir Set[08.1983 - 07.1987] AE86..5F |
47231-30010 |
US $4.48 |
||
|
31432
|
31432
47232-30010 Washer, Reservoir Set Bolt[08.1983 - 07.1987] AE86..5F |
47232-30010 |
US $3.52 |
||
|
31451
|
31451
31451-20050
Rod, Clutch Master Cylinder Push
[08.1983 - 08.1985] AE86..5F |
31451-20050 |
— | ||
|
31451
|
31451
31451-22070 Rod, Clutch Master Cylinder Push[11.1986 - 07.1987] AE86..5F |
31451-22070 |
US $126.06 |
||
|
31451
|
31451
31451-30060
Rod, Clutch Master Cylinder Push
[08.1985 - 11.1986] AE86..5F |
31451-30060 |
— | ||
|
31453
|
31453
31453-22010 Clevis, Clutch Master Cylinder Push Rod[08.1983 - 08.1985] AE86..5F |
31453-22010 |
US $6.55 |
||
| replacement | |||||
|
31453
|
31453
31453-35010 Clevis, Clutch Master Cylinder Push Rod[08.1983 - 08.1985] AE86..5F |
31453-35010 |
US $6.64 |
||
|
31453
|
31453
31453-35010 Clevis, Clutch Master Cylinder Push Rod[10.1986 - 07.1987] AE86..5F..(DX,SR5) |
31453-35010 |
US $6.64 |
||
|
31454
|
31454
31454-14010 Boot, Clutch Master Cylinder[08.1983 - 08.1985] AE86..5F |
31454-14010 |
US $4.19 |
||
|
31454
|
31454
31454-24010 Boot, Clutch Master Cylinder[08.1985 - 07.1987] AE86..5F |
31454-24010 |
US $3.32 |
||
|
9017908038
|
9017908038
90179-08038 Nut |
90179-08038 |
from US $0.80 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9454200800
|
9454200800
94542-00800 New Genuine Part |
94542-00800 |
US $2.18 |
||
|
9471290800
|
9471290800
94712-90800 New Genuine Part |
94712-90800 |
US $3.20 |
||
