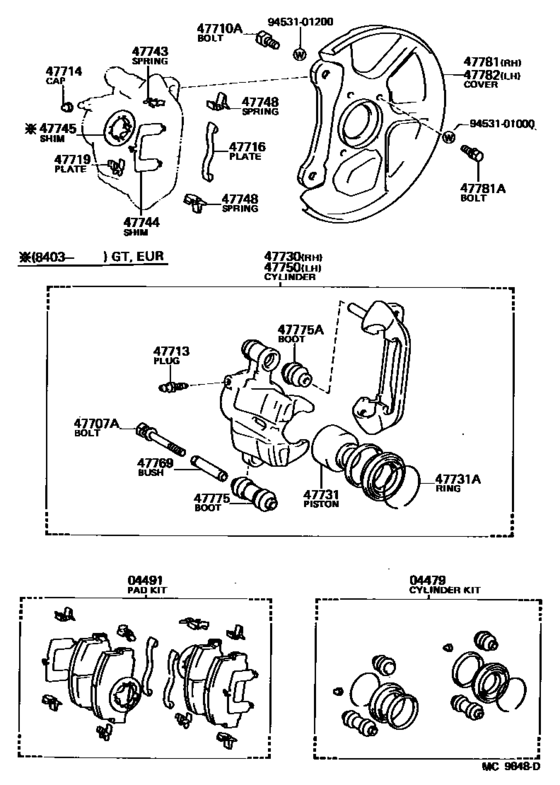

Front Disc Brake Caliper & Dust Cover ([05.1983 - ] (8305- )) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- Europe
- Frame
- AE86
- grade
- SR
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 02.1985
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04479
|
04479
04479-14060 Cylinder Kit, Disc Brake, Front[05.1983 - 07.1987] AE86 |
04479-14060 |
US $30.70 |
||
|
04491
|
04491
04491-12190 Pad Kit, Disc Brake, FrontDISC BRAKE, FRONT [08.1983 - 05.1985] AE86..EUR,ME;AE86..GT..GEN |
04491-12190 |
US $91.73 |
||
| replacement | |||||
|
04491
|
04491
04465-12370 Pad Kit, Disc Brake, FrontDISC BRAKE, FRONT [08.1983 - 05.1985] AE86..EUR,ME;AE86..GT..GEN |
04465-12370 |
US $143.56 |
||
|
47707A
|
47707A
90119-08431 Bolt, Hexagon(For Front Disc Brake Torque Plate)[05.1983 - 07.1987] AE86 |
90119-08431 |
from US $1.17 |
||
|
47710A
|
47710A
90101-12064 Bolt, Hexagon(For Front Disc Brake Caliper)[05.1983 - 07.1987] AE86 |
90101-12064 |
US $4.32 |
||
|
47713
|
47713
47547-20010 Plug, Bleeder(For Release Cylinder)[05.1983 - 07.1987] AE86 |
47547-20010 |
from US $3.20 |
||
|
47714
|
47714
31478-30010 Bleeder Plug Cap[05.1983 - 07.1987] AE86 |
31478-30010 |
from US $1.66 |
||
|
47716
|
47716
47716-14080 Plate, Pad Support, No.1(For Front Disc Brake)[05.1983 - 07.1987] AE86 |
47716-14080 |
US $5.12 |
||
|
47719
|
47719
47736-12010
Plate, Front Disc Brake Pad Guide
[05.1983 - 01.1987] AE86 |
47736-12010 |
— | ||
|
47730
|
47730
47730-12180 Cylinder Assy, Front Disc Brake, RhFRONT DISC BRAKE, RH [08.1983 - 07.1987] AE86..EUR,ME;AE86..GT..GEN |
47730-12180 |
US $594.05 |
||
|
47731
|
47731
47731-14070 Piston, Front Disc Brake[05.1983 - 07.1987] AE86 |
47731-14070 |
US $42.56 |
||
|
47731A
|
47731A
90522-60004 Ring, Set(For Front Disc Brake Piston)[05.1983 - 07.1987] AE86 |
90522-60004 |
US $2.33 |
||
|
47743
|
47743
47743-12010
Spring, Anti-Rattle, No.2(For Front Disc Brake)
[05.1983 - 01.1987] AE86 LH |
47743-12010 |
— | ||
|
47743
|
47743
47748-12050
Spring, Anti-Rattle, No.2(For Front Disc Brake)
[05.1983 - 01.1987] AE86 RH |
47748-12050 |
— | ||
|
47744
|
47744
47744-14050
Shim, Anti-Squeal, No.1(For Front Disc Brake)
[05.1983 - 07.1987] AE86 |
47744-14050 |
— | ||
|
47745
|
47745
47745-14020 Shim, Anti-Squeal, No.2(For Front Disc Brake)[03.1984 - 07.1987] AE86..EUR,ME;AE86..GT..GEN |
47745-14020 |
US $3.64 |
||
|
47748
|
47748
47743-14040 Spring, Anti-Rattle, No.2(For Front Disc Brake)[05.1983 - 07.1987] AE86 RH=UPR,LH=LWR |
47743-14040 |
from US $5.12 |
||
|
47748
|
47748
47748-14050 Spring, Anti-Rattle, No.2(For Rear Disc Brake)[05.1983 - 07.1987] AE86 RH=LWR,LH=UPR |
47748-14050 |
from US $5.56 |
||
|
47750
|
47750
47750-12180 Cylinder Assy, Disc Brake, LhDISC BRAKE, LH [08.1983 - 07.1987] AE86..EUR,ME;AE86..GT..GEN |
47750-12180 |
US $594.05 |
||
|
47769
|
47769
47769-28010 Bush, Cylinder Slide, No.1(For Front Disc Brake)[05.1983 - 07.1987] AE86 |
47769-28010 |
from US $7.14 |
||
|
47775
|
47775
47775-14010 Boot, Bush Dust(For Front Disc Brake)[05.1983 - 07.1987] AE86 |
47775-14010 |
US $12.48 |
||
|
47775A
|
47775A
47776-14010 Boot, Pin[05.1983 - 07.1987] AE86 |
47776-14010 |
US $10.72 |
||
|
47781
|
47781
47703-12110
Cover, Disc Brake Dust, Front Rh
[05.1983 - 07.1987] AE86 |
47703-12110 |
— | ||
|
47781A
|
47781A
91111-71020 Bolt(For Backing Plate To Steering Knuckle Setting)[05.1983 - 07.1987] AE86 |
91111-71020 |
US $2.72 |
||
|
47782
|
47782
47704-12110
Cover, Disc Brake Dust, Front Lh
[05.1983 - 07.1987] AE86 |
47704-12110 |
— | ||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
|
9453101200
|
9453101200
94531-01200 WASHER |
94531-01200 |
from US $0.80 |
||
