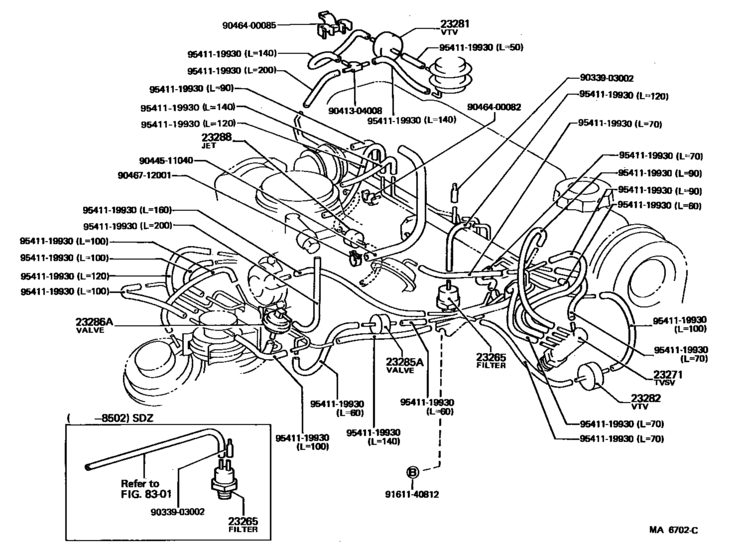

Vacuum Piping ([05.1983 - 05.1985] (8305-8505)4AC) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- Europe
- Frame
- AE86
- grade
- SR
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 02.1985
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23265
|
23265
90917-11023 Filter, Gas, No.1[05.1983 - 02.1985] 4AC..AE86..SDZ |
90917-11023 |
from US $23.41 |
||
|
23271
|
23271
90925-02076
Valve, Thermostatic Vacuum Switching, No.1
[05.1983 - 04.1987] 4A,4AC..AE86 |
90925-02076 |
— | ||
|
23281
|
23281
90925-01014
Valve, Vacuum Transmitting, No.1
[05.1983 - 07.1987] 4AC,4AG#..AE86 |
90925-01014 |
— | ||
|
23282
|
23282
90925-01043
Valve, Vacuum Transmitting, No.2
[05.1983 - 05.1985] 4AC..AE86 |
90925-01043 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[05.1983 - 04.1987] 4AC,4AGEC..AE86 |
90917-10049 |
from US $6.59 |
||
|
23286A
|
23286A
90917-10064 Valve, Check, No.2CHECK, NO.2 [05.1983 - 05.1985] 4AC..AE86 |
90917-10064 |
US $39.60 |
||
|
23288
|
23288
90925-04003
Jet, No.1
[05.1983 - 04.1987] 4A,4AC..AE86 |
90925-04003 |
— | ||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9041304008
|
9041304008
90413-04008 Way, 3(For Transfer Breather Hose) |
90413-04008 |
from US $6.46 |
||
|
9044511040
|
9044511040
90445-11040
Hose, No.1(For Idle-Up)
|
90445-11040 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046400085
|
9046400085
90464-00085 New Genuine Part |
90464-00085 |
US $2.97 |
||
|
9046712001
|
9046712001
90467-12001 Clip(For Carburetor Fuel Hose) |
90467-12001 |
US $2.18 |
||
| replacement | |||||
|
9046712001
|
9046712001
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.74 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
