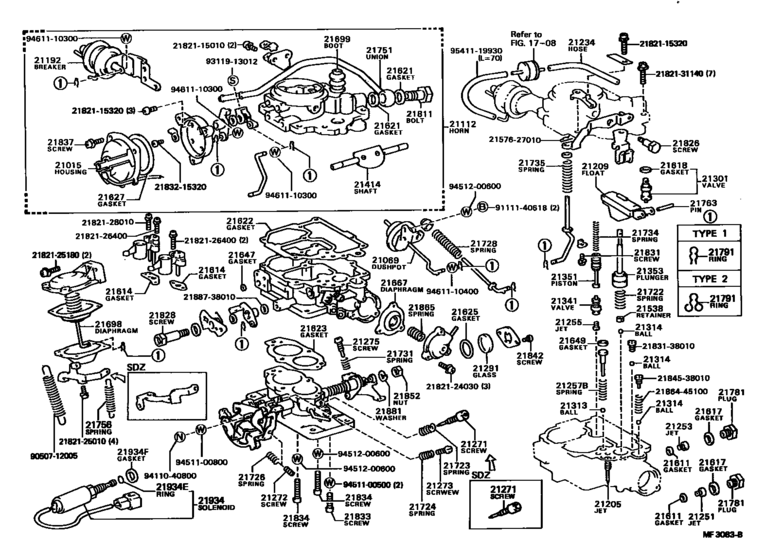

Carburetor ([05.1983 - 05.1985] (8305-8505)4AC) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- General
- Frame
- AE86
- grade
- SR
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 02.1985
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21015
|
21015
21015-15050 Housing Sub-Assy, CoilCOIL [05.1983 - 04.1987] 4A,4AC..AE86 |
21015-15050 |
US $244.61 |
||
|
21069
|
21069
21069-15290 Dash Pot Sub-Assy[05.1983 - 05.1985] 4AC..AE86 |
21069-15290 |
US $115.02 |
||
|
21112
|
21112
21112-16080
Horn, Air
[05.1983 - 09.1985] 4A,4AC..AE86 |
21112-16080 |
— | ||
| replacement | |||||
|
21112
|
21112
21112-16081 Horn, AirAIR [05.1983 - 09.1985] 4A,4AC..AE86 |
21112-16081 |
US $586.77 |
||
|
21112
|
21112
21112-16081 Horn, AirAIR [09.1985 - 04.1987] 4A..AE86 |
21112-16081 |
US $586.77 |
||
|
21192
|
21192
21192-14130
Breaker
[05.1983 - 04.1987] 4A,4AC..AE86 |
21192-14130 |
— | ||
|
21205
|
21205
21205-27040 Jet Sub-Assy, Slow[05.1983 - 04.1987] 4A,4AC..AE86 |
21205-27040 |
US $12.52 |
||
|
21209
|
21209
21209-15020 Float Sub-Assy[05.1983 - 04.1987] 4A,4AC..AE86 |
21209-15020 |
US $33.90 |
||
|
21234
|
21234
21249-13090 Pipe Or Hose[05.1983 - 04.1987] 4A,4AC..AE86 |
21249-13090 |
US $4.51 |
||
| replacement | |||||
|
21234
|
21234
90999-92002
Air Hose (300 mm)
[05.1983 - 04.1987] 4A,4AC..AE86 |
90999-92002 |
— | ||
|
21251
|
21251
90999-41104 Jet, 1St Main[05.1983 - 05.1985] 4AC..AE86 ID=1.04 |
90999-41104 |
US $4.95 |
||
|
21253
|
21253
90999-42153 Jet, 2Nd Main[05.1983 - 05.1985] 4AC..AE86 ID=1.53 |
90999-42153 |
US $5.39 |
||
|
21255
|
21255
90999-43060
Jet, Power
[05.1983 - 05.1985] 4AC..AE86 ID=0.60 |
90999-43060 |
— | ||
|
21257B
|
21257B
21864-26020
Spring(For Pump Jet)
[05.1983 - 04.1987] 4A,4AC..AE86 |
21864-26020 |
— | ||
|
21271
|
21271
21271-26440 Screw, Idle AdjustingIDLE ADJUSTING [08.1983 - 02.1985] 4AC..AE86..SDZ |
21271-26440 |
US $18.64 |
||
|
21272
|
21272
21828-25180 Screw, 1St Idle Adjusting[05.1983 - 04.1987] 4A,4AC..AE86 |
21828-25180 |
US $3.06 |
||
|
21273
|
21273
21844-33010
Screw, 1St Idle Adjusting
[05.1983 - 04.1987] 4A,4AC..AE86 |
21844-33010 |
— | ||
|
21275
|
21275
21842-28090 Screw, Adjusting[05.1983 - 05.1985] 4AC..AE86 |
21842-28090 |
US $4.08 |
||
|
21291
|
21291
21291-34320
Glass, Level Gage
[05.1983 - 04.1987] 4A,4AC..AE86 |
21291-34320 |
— | ||
|
21301
|
21301
21301-15160
Valve Sub-Assy, Needle
[05.1983 - 04.1987] 4A,4AC..AE86 |
21301-15160 |
— | ||
|
21313
|
21313
21313-11020 Ball, Steel, No.1(For Discharge Weight)[05.1983 - 04.1987] 4A,4AC..AE86 |
21313-11020 |
US $3.67 |
||
|
21314
|
21314
21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)[05.1983 - 04.1987] 4A,4AC..AE86 |
21314-11020 |
US $3.84 |
||
|
21341
|
21341
21304-30010
Valve, Power
[05.1983 - 04.1987] 4A,4AC..AE86 |
21304-30010 |
— | ||
|
21351
|
21351
21351-33080
Piston, Power
[05.1983 - 04.1987] 4A,4AC..AE86 |
21351-33080 |
— | ||
|
21353
|
21353
21353-33010
Plunger, Pump
[05.1983 - 04.1987] 4A,4AC..AE86 |
21353-33010 |
— | ||
| replacement | |||||
|
21353
|
21353
21353-16510
Plunger, Pump
[05.1983 - 04.1987] 4A,4AC..AE86 |
21353-16510 |
— | ||
|
21414
|
21414
21054-15050 Shaft, ChokeCHOKE [05.1983 - 04.1987] 4A,4AC..AE86 |
21054-15050 |
US $35.82 |
||
|
21538
|
21538
21538-31010 Retainer, Ball Check[05.1983 - 04.1987] 4A,4AC..AE86 |
21538-31010 |
US $4.37 |
||
|
21611
|
21611
21611-22010 Gasket, Main Jet[05.1983 - 04.1987] 4A,4AC..AE86 |
21611-22010 |
US $3.32 |
||
|
21614
|
21614
21614-33010 Gasket, Venturi[05.1983 - 04.1987] 4A,4AC..AE86 1ST |
21614-33010 |
US $4.08 |
||
| replacement | |||||
|
21614
|
21614
21614-16280 Gasket, Venturi[05.1983 - 04.1987] 4A,4AC..AE86 1ST |
21614-16280 |
US $2.52 |
||
|
21614
|
21614
21614-33080 Gasket, Venturi[05.1983 - 04.1987] 4A,4AC..AE86 2ND |
21614-33080 |
US $4.08 |
||
| replacement | |||||
|
21614
|
21614
21615-16280 Gasket, Venturi[05.1983 - 04.1987] 4A,4AC..AE86 2ND |
21615-16280 |
US $3.19 |
||
|
21617
|
21617
21617-30010 Gasket, Main Passage Plug[05.1983 - 04.1987] 4A,4AC..AE86 |
21617-30010 |
US $3.55 |
||
|
21618
|
21618
21618-14010
Gasket, Needle Valve Seat
[05.1983 - 04.1987] 4A,4AC..AE86 |
21618-14010 |
— | ||
|
21621
|
21621
21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt[05.1983 - 04.1987] 4A,4AC..AE86 |
21633-24030 |
US $4.89 |
||
|
21622
|
21622
21622-16090
Gasket, Air Horn
[05.1983 - 04.1987] 4A,4AC..AE86 |
21622-16090 |
— | ||
| replacement | |||||
|
21622
|
21622
21622-16280 Gasket, Air Horn[05.1983 - 04.1987] 4A,4AC..AE86 |
21622-16280 |
US $9.26 |
||
|
21623
|
21623
21623-25180
Gasket, Body Flange
[05.1983 - 04.1987] 4A,4AC..AE86 |
21623-25180 |
— | ||
| replacement | |||||
|
21623
|
21623
21623-16280
Gasket, Body Flange
[05.1983 - 04.1987] 4A,4AC..AE86 |
21623-16280 |
— | ||
|
21625
|
21625
21655-60200 Gasket, Level Gage[05.1983 - 04.1987] 4A,4AC..AE86 |
21655-60200 |
US $9.90 |
||
|
21627
|
21627
21627-28090
Gasket, Coil Housing
[05.1983 - 04.1987] 4A,4AC..AE86 |
21627-28090 |
— | ||
| replacement | |||||
|
21627
|
21627
21627-28150 Gasket, Coil Housing[05.1983 - 04.1987] 4A,4AC..AE86 |
21627-28150 |
US $4.19 |
||
|
21647
|
21647
21649-33080
Gasket, Diaphragm Housing Cap
[05.1983 - 04.1987] 4A,4AC..AE86 |
21649-33080 |
— | ||
|
21649
|
21649
21641-33011
Gasket(For Pump Discharge Weight Stopper)
[05.1983 - 04.1987] 4A,4AC..AE86 |
21641-33011 |
— | ||
|
21667
|
21667
21667-38310
Diaphragm
[05.1983 - 04.1985] 4A,4AC..AE86 |
21667-38310 |
— | ||
| replacement | |||||
|
21667
|
21667
21675-35510 Diaphragm[05.1983 - 04.1985] 4A,4AC..AE86 |
21675-35510 |
US $15.04 |
||
|
21667
|
21667
21667-72080
Diaphragm
[04.1985 - 04.1987] 4A,4AC..AE86 |
21667-72080 |
— | ||
| replacement | |||||
|
21667
|
21667
21675-35510 Diaphragm[04.1985 - 04.1987] 4A,4AC..AE86 |
21675-35510 |
US $15.04 |
||
|
21698
|
21698
21669-15320
Diaphragm
[05.1983 - 04.1987] 4A,4AC..AE86 |
21669-15320 |
— | ||
|
21699
|
21699
21699-28150 Boot(For Pump Plunger)[05.1983 - 04.1987] 4A,4AC..AE86 |
21699-28150 |
US $14.50 |
||
|
21722
|
21722
21722-22010 Spring, Pump Damping[05.1983 - 04.1987] 4A,4AC..AE86 |
21722-22010 |
US $3.89 |
||
|
21723
|
21723
21723-21030 Spring, Idle Adjusting[05.1983 - 04.1987] 4A,4AC..AE86 |
21723-21030 |
US $4.19 |
||
|
21724
|
21724
21723-21030 Spring, Idle Adjusting[05.1983 - 04.1987] 4A,4AC..AE86 |
21723-21030 |
US $4.19 |
||
|
21726
|
21726
21723-21030 Spring, Idle Adjusting[05.1983 - 04.1987] 4A,4AC..AE86 |
21723-21030 |
US $4.19 |
||
|
21728
|
21728
21756-25181 Spring, Throttle Valve Return[05.1983 - 04.1987] 4A,4AC..AE86 |
21756-25181 |
US $9.17 |
||
|
21731
|
21731
21723-21030 Spring, Idle Adjusting[05.1983 - 04.1987] 4AC..AE86 |
21723-21030 |
US $4.19 |
||
|
21734
|
21734
21734-33080 Spring, Power Piston[05.1983 - 04.1987] 4A,4AC..AE86 |
21734-33080 |
US $9.17 |
||
|
21735
|
21735
21735-15270 Spring, Pump Arm[05.1983 - 04.1987] 4A,4AC..AE86 |
21735-15270 |
US $9.17 |
||
|
21751
|
21751
21894-15081 Union, Nipple[05.1983 - 04.1987] 4A,4AC..AE86 |
21894-15081 |
US $81.54 |
||
|
21756
|
21756
21756-15080 Spring, Back(For Throttle Shaft)[05.1983 - 04.1987] 4A,4AC..AE86 |
21756-15080 |
US $10.05 |
||
|
21763
|
21763
21763-26350 Pin, Float Lever[05.1983 - 04.1987] 4A,4AC..AE86 |
21763-26350 |
US $4.08 |
||
|
21781
|
21781
21781-15230 Plug, Main Passage(For Carburetor Jet)[05.1983 - 04.1987] 4A,4AC..AE86 |
21781-15230 |
US $5.82 |
||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[05.1983 - 04.1987] 4A,4AC..AE86 TYPE 2 |
21791-13010 |
US $3.32 |
||
|
21791
|
21791
21791-60010
Ring, Snap, No.1(For Carburetor Link)
[05.1983 - 04.1987] 4A,4AC..AE86 TYPE 1 |
21791-60010 |
— | ||
| replacement | |||||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[05.1983 - 04.1987] 4A,4AC..AE86 TYPE 1 |
21791-13010 |
US $3.32 |
||
|
21811
|
21811
21811-11060 Bolt, Union Nipple[05.1983 - 04.1987] 4A,4AC..AE86 |
21811-11060 |
US $9.46 |
||
|
21826
|
21826
21826-31012
Screw, Pump Arm Set
[05.1983 - 04.1987] 4A,4AC..AE86 |
21826-31012 |
— | ||
|
21828
|
21828
21845-15230 Screw, 1St Idle Set[05.1983 - 04.1987] 4A,4AC..AE86 |
21845-15230 |
US $9.17 |
||
| replacement | |||||
|
21828
|
21828
90079-12002 Screw, 1St Idle Set1ST IDLE SET [05.1983 - 04.1987] 4A,4AC..AE86 |
90079-12002 |
US $1.46 |
||
|
21831
|
21831
21821-15060 Screw, 2Nd Throttle Valve Set[05.1983 - 04.1987] 4A,4AC..AE86 |
21821-15060 |
US $3.06 |
||
|
21833
|
21833
21833-33010
Screw, Set, No.1(For Carburetor Body Set)
[05.1983 - 04.1987] 4A,4AC..AE86 |
21833-33010 |
— | ||
|
21834
|
21834
21834-31140
Screw, Set, No.2(For Carburetor Body Set)
[05.1983 - 04.1987] 4A,4AC..AE86 W/HOLE |
21834-31140 |
— | ||
|
21834
|
21834
21844-26400 Screw, Set(For 1St Idle Cam Follower Set)[05.1983 - 04.1987] 4A,4AC..AE86 |
21844-26400 |
US $4.95 |
||
|
21837
|
21837
21821-25010 Screw, Coil Housing Set[05.1983 - 04.1987] 4A,4AC..AE86 |
21821-25010 |
US $3.84 |
||
|
21842
|
21842
21842-33010
Screw, Power Piston Stop
[05.1983 - 04.1987] 4A,4AC..AE86 |
21842-33010 |
— | ||
|
21852
|
21852
21852-30010 Nut, Throttle Lever Set[05.1983 - 04.1987] 4A,4AC..AE86 |
21852-30010 |
US $4.22 |
||
|
21865
|
21865
21865-15230 Spring[05.1983 - 04.1987] 4A,4AC..AE86 |
21865-15230 |
US $9.17 |
||
|
21881
|
21881
21881-60010 Washer, Lock(For Throttle Shaft)[05.1983 - 04.1987] 4A,4AC..AE86 |
21881-60010 |
US $3.79 |
||
|
21934
|
21934
21062-14130 Solenoid, Throttle ValveTHROTTLE VALVE [05.1983 - 04.1987] 4A,4AC..AE86 |
21062-14130 |
US $147.06 |
||
| replacement | |||||
|
21934
|
21934
21062-16190
Solenoid, Throttle Valve
[05.1983 - 04.1987] 4A,4AC..AE86 |
21062-16190 |
— | ||
|
21934E
|
21934E
21655-44101 Ring, O(For Lifter Rod)[05.1983 - 04.1987] 4A,4AC..AE86 |
21655-44101 |
US $7.86 |
||
|
21934F
|
21934F
21649-38010 Gasket[05.1983 - 04.1987] 4A,4AC..AE86 |
21649-38010 |
US $3.14 |
||
|
2157627010
|
2157627010
21576-27010
Clip, Pump Strainer
|
21576-27010 |
— | ||
|
2182115010
|
2182115010
21821-15010 Screw(For Choke Lever Adapter Set) |
21821-15010 |
US $1.75 |
||
|
2182115320
|
2182115320
21821-15320 Screw, 2nd Throttle Valve Set |
21821-15320 |
US $5.68 |
||
|
2182124030
|
2182124030
21821-24030 Screw(For Vacuum Lock Diaphragm Ring Set) |
21821-24030 |
US $3.79 |
||
|
2182125010
|
2182125010
21821-25010 Screw, Coil Housing Set |
21821-25010 |
US $3.84 |
||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $3.52 |
||
|
2182126400
|
2182126400
21821-26400 Screw, 2nd Throttle Valve Set |
21821-26400 |
US $3.20 |
||
|
2182128010
|
2182128010
21821-28010
Screw, 2nd Throttle Valve Set
|
21821-28010 |
— | ||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.34 |
||
|
2183138010
|
2183138010
21831-38010 Screw, Power Piston Stop |
21831-38010 |
US $4.37 |
||
|
2183215320
|
2183215320
21832-15320 Screw(For Choke Lever Adapter Set) |
21832-15320 |
US $2.91 |
||
|
2184538010
|
2184538010
21845-38010 Screw, 1St Idle Set |
21845-38010 |
US $5.39 |
||
|
2186445100
|
2186445100
21864-45100 Spring(For Pump Jet) |
21864-45100 |
US $9.32 |
||
|
2188738010
|
2188738010
21887-38010 New Genuine Part |
21887-38010 |
US $2.77 |
||
| replacement | |||||
|
2188738010
|
2188738010
21885-38310 New Genuine Part |
21885-38310 |
US $2.62 |
||
|
9050712005
|
9050712005
90507-12005 New Genuine Part |
90507-12005 |
US $7.28 |
||
|
9111140618
|
9111140618
91111-40618 New Genuine Part |
91111-40618 |
US $2.18 |
||
| replacement | |||||
|
9111140618
|
9111140618
91111-50618 New Genuine Part |
91111-50618 |
US $2.18 |
||
|
9311913012
|
9311913012
93119-13012 New Genuine Part |
93119-13012 |
US $1.75 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.08 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
|
9461110400
|
9461110400
94611-10400 New Genuine Part |
94611-10400 |
US $1.38 |
||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
