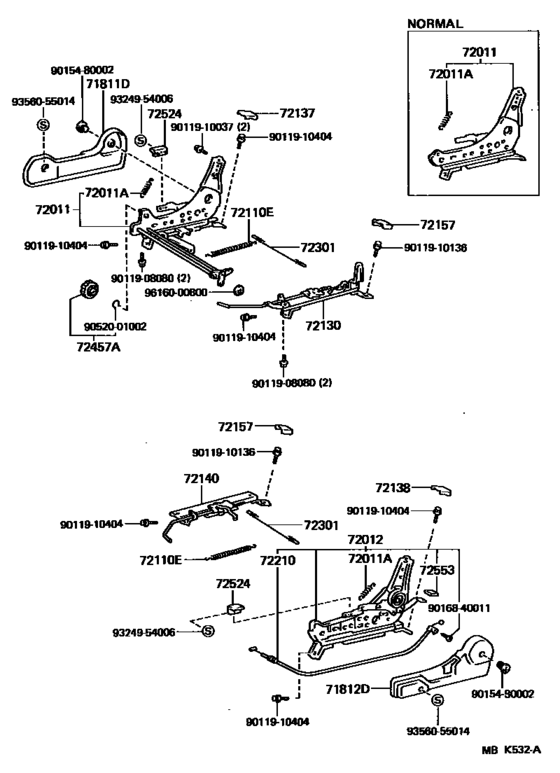

Front Seat & Seat Track ([05.1983 - ] (8305- )) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- General
- Frame
- AE86
- grade
- SR
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 02.1985
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71811D
|
71811D
71811-12120-02 Shield, Front Seat Cushion, RhFRONT SEAT CUSHION, RH [05.1983 - 05.1985] AE86..ARL,EUR,ME DEEP MAROON,RED/MAROON,TRIM3#; AE86..SR..GEN;AE86..LHD..GT..GEN DEEP MAROON,RED/MAROON,TRIM3# |
71811-12120-02 |
US $39.60 |
||
| replacement | |||||
|
71811D
|
71811D
71811-12120-01 Shield, Front Seat Cushion, RhFRONT SEAT CUSHION, RH [05.1983 - 05.1985] AE86..ARL,EUR,ME DEEP MAROON,RED/MAROON,TRIM3#; AE86..SR..GEN;AE86..LHD..GT..GEN DEEP MAROON,RED/MAROON,TRIM3# |
71811-12120-01 |
US $39.60 |
||
|
71811D
|
71811D
71811-12120-04
Shield, Front Seat Cushion, Rh
[05.1983 - 07.1987] AE86..ARL,EUR,ME BLUE,BLUE,TRIM8# |
71811-12120-04 |
— | ||
|
71812D
|
71812D
71812-12080-02 Shield, Front Seat Cushion, LhFRONT SEAT CUSHION, LH [05.1983 - 05.1985] AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3#; AE86..SR..GEN;AE86..RHD..GT..GEN DEEP MAROON,RED/MAROON,TRIM3# |
71812-12080-02 |
US $43.53 |
||
| replacement | |||||
|
71812D
|
71812D
71812-12080-01
Shield, Front Seat Cushion, Lh
[05.1983 - 05.1985] AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3#; AE86..SR..GEN;AE86..RHD..GT..GEN DEEP MAROON,RED/MAROON,TRIM3# |
71812-12080-01 |
— | ||
|
71812D
|
71812D
71812-12080-04
Shield, Front Seat Cushion, Lh
[05.1983 - 05.1985] AE86..ARL,EUR BLUE,BLUE,TRIM8#; AE86..SR..GEN;AE86..RHD..GT..GEN BLUE,BLUE,TRIM8# |
71812-12080-04 |
— | ||
|
71812D
|
71812D
71812-12090-02 Shield, Front Seat Cushion, LhFRONT SEAT CUSHION, LH [05.1983 - 05.1985] AE86..LHD W/*VA,DEEP MAROON,RED/MAROON,TRIM3# |
71812-12090-02 |
US $44.84 |
||
| replacement | |||||
|
71812D
|
71812D
71812-12090-01 Shield, Front Seat Cushion, LhFRONT SEAT CUSHION, LH [05.1983 - 05.1985] AE86..LHD W/*VA,DEEP MAROON,RED/MAROON,TRIM3# |
71812-12090-01 |
US $44.84 |
||
|
71812D
|
71812D
71812-12090-04
Shield, Front Seat Cushion, Lh
[05.1983 - 07.1987] AE86..LHD W/*VA,BLUE,BLUE,TRIM8# |
71812-12090-04 |
— | ||
|
72011
|
72011
72010-12370
Adjuster Sub-Assy, Front Seat, Outer Rh
[05.1983 - 05.1985] AE86..LHD..SR;AE86..LHD..GT..EUR |
72010-12370 |
— | ||
|
72011A
|
72011A
90506-18015
Spring, Tension (For Front Seat Adjuster Outer)
[05.1983 - 07.1987] AE86 |
90506-18015 |
— | ||
|
72012
|
72012
72020-12370
Adjuster Sub-Assy, Front Seat, Outer Lh
[05.1983 - 05.1985] AE86..LHD..SR;AE86..LHD..GT..EUR |
72020-12370 |
— | ||
|
72012
|
72012
72020-12380 Adjuster Sub-Assy, Front Seat, Outer LhFRONT SEAT, OUTER LH [05.1983 - 05.1985] AE86..LHD..SR;AE86..LHD..GT..EUR W/*LUS |
72020-12380 |
US $349.44 |
||
| replacement | |||||
|
72012
|
72012
72020-12500
Adjuster Sub-Assy, Front Seat, Outer Lh
[05.1983 - 05.1985] AE86..LHD..SR;AE86..LHD..GT..EUR W/*LUS |
72020-12500 |
— | ||
|
72110E
|
72110E
90506-18020
Spring, Tension, No.1 (For Seat Track)
[05.1983 - 07.1987] AE86 |
90506-18020 |
— | ||
|
72130
|
72130
72130-12400 Track Assy, Rh Seat, InnerRH SEAT, INNER [05.1983 - 05.1985] AE86..LHD |
72130-12400 |
US $147.06 |
||
| replacement | |||||
|
72130
|
72130
72130-12340
Track Assy, Rh Seat, Inner
[05.1983 - 05.1985] AE86..LHD |
72130-12340 |
— | ||
|
72137
|
72137
72137-32010-01 Cover, Seat Track, Outer Rh[08.1984 - 07.1987] AE86 BLACK,BLACK,TRIM2# |
72137-32010-01 |
US $9.17 |
||
|
72137
|
72137
72137-32010-02 Cover, Seat Track, Outer RhSEAT TRACK OUTER, RH [05.1983 - 08.1984] AE86 DEEP MAROON,RED/MAROON,TRIM3# |
72137-32010-02 |
US $9.17 |
||
| replacement | |||||
|
72137
|
72137
72137-32010-01 Cover, Seat Track, Outer Rh[05.1983 - 08.1984] AE86 DEEP MAROON,RED/MAROON,TRIM3# |
72137-32010-01 |
US $9.17 |
||
|
72137
|
72137
72137-32010-04 Cover, Seat Track, Outer RhSEAT TRACK OUTER, RH [05.1983 - 08.1984] AE86 BLUE,BLUE,TRIM8# |
72137-32010-04 |
US $9.17 |
||
| replacement | |||||
|
72137
|
72137
72137-32010-01 Cover, Seat Track, Outer Rh[05.1983 - 08.1984] AE86 BLUE,BLUE,TRIM8# |
72137-32010-01 |
US $9.17 |
||
|
72138
|
72138
72137-32010-01 Cover, Seat Track, Outer Rh[08.1984 - 07.1987] AE86 BLACK,BLACK,TRIM2# |
72137-32010-01 |
US $9.17 |
||
|
72138
|
72138
72137-32010-02 Cover, Seat Track, Outer RhSEAT TRACK OUTER, RH [05.1983 - 08.1984] AE86 DEEP MAROON,RED/MAROON,TRIM3# |
72137-32010-02 |
US $9.17 |
||
| replacement | |||||
|
72138
|
72138
72137-32010-01 Cover, Seat Track, Outer Rh[05.1983 - 08.1984] AE86 DEEP MAROON,RED/MAROON,TRIM3# |
72137-32010-01 |
US $9.17 |
||
|
72138
|
72138
72137-32010-04 Cover, Seat Track, Outer RhSEAT TRACK OUTER, RH [05.1983 - 08.1984] AE86 BLUE,BLUE,TRIM8# |
72137-32010-04 |
US $9.17 |
||
| replacement | |||||
|
72138
|
72138
72137-32010-01 Cover, Seat Track, Outer Rh[05.1983 - 08.1984] AE86 BLUE,BLUE,TRIM8# |
72137-32010-01 |
US $9.17 |
||
|
72140
|
72140
72140-12360
Track Assy, Lh Seat, Inner
[05.1983 - 05.1985] AE86..LHD..SR;AE86..LHD..GT..EUR W/O *VA |
72140-12360 |
— | ||
|
72140
|
72140
72140-12370
Track Assy, Lh Seat, Inner
[05.1983 - 05.1985] AE86..LHD W/*VA |
72140-12370 |
— | ||
|
72157
|
72157
72157-12010-01
Cover, Seat Track Bracket, Inner
[08.1984 - 07.1987] AE86 RH,BLACK,BLACK,TRIM2# |
72157-12010-01 |
— | ||
|
72157
|
72157
72157-12010-02 Cover, Seat Track Bracket, InnerSEAT TRACK BRACKET, INNER [05.1983 - 08.1984] AE86 RH,DEEP MAROON,RED/MAROON,TRIM3# |
72157-12010-02 |
US $8.44 |
||
| replacement | |||||
|
72157
|
72157
72157-12010-01
Cover, Seat Track Bracket, Inner
[05.1983 - 08.1984] AE86 RH,DEEP MAROON,RED/MAROON,TRIM3# |
72157-12010-01 |
— | ||
|
72157
|
72157
72157-12010-04 Cover, Seat Track Bracket, InnerSEAT TRACK BRACKET, INNER [05.1983 - 08.1984] AE86 RH,BLUE,BLUE,TRIM8# |
72157-12010-04 |
US $8.44 |
||
| replacement | |||||
|
72157
|
72157
72157-12010-01
Cover, Seat Track Bracket, Inner
[05.1983 - 08.1984] AE86 RH,BLUE,BLUE,TRIM8# |
72157-12010-01 |
— | ||
|
72157
|
72157
72158-12010-01
Cover, Seat Track Bracket, Inner
[08.1984 - 07.1987] AE86 LH,BLACK,BLACK,TRIM2# |
72158-12010-01 |
— | ||
|
72157
|
72157
72158-12010-02
Cover, Seat Track Bracket, Inner
[05.1983 - 08.1984] AE86 LH,DEEP MAROON,RED/MAROON,TRIM3# |
72158-12010-02 |
— | ||
| replacement | |||||
|
72157
|
72157
72158-12010-01
Cover, Seat Track Bracket, Inner
[05.1983 - 08.1984] AE86 LH,DEEP MAROON,RED/MAROON,TRIM3# |
72158-12010-01 |
— | ||
|
72157
|
72157
72158-12010-04 Cover, Seat Track Bracket, InnerSEAT TRACK BRACKET, INNER [05.1983 - 08.1984] AE86 LH,BLUE,BLUE,TRIM8# |
72158-12010-04 |
US $8.44 |
||
| replacement | |||||
|
72157
|
72157
72158-12010-01
Cover, Seat Track Bracket, Inner
[05.1983 - 08.1984] AE86 LH,BLUE,BLUE,TRIM8# |
72158-12010-01 |
— | ||
|
72210
|
72210
72210-14090
Cable Assy, Seat Track Control
[05.1983 - 07.1987] AE86..LHD |
72210-14090 |
— | ||
|
72301
|
72301
72301-12050 Wire Sub-Assy, Seat Track EqualizingSEAT TRACK EQUALIZING [05.1983 - 07.1987] AE86 |
72301-12050 |
US $4.22 |
||
|
72457A
|
72457A
72457-14040-04 Knob, Seat Adjuster[05.1983 - 05.1985] AE86 BLUE,BLUE,TRIM8# |
72457-14040-04 |
US $16.16 |
||
| replacement | |||||
|
72457A
|
72457A
72457-14040-C0
Knob, Vertical Seat Adjuster
[05.1983 - 05.1985] AE86 BLUE,BLUE,TRIM8# |
72457-14040-C0 |
— | ||
|
72457A
|
72457A
72457-14040-12
Knob, Seat Adjuster
[05.1983 - 05.1985] AE86 DEEP MAROON,RED/MAROON,TRIM3# |
72457-14040-12 |
— | ||
| replacement | |||||
|
72457A
|
72457A
72457-14040-C0
Knob, Vertical Seat Adjuster
[05.1983 - 05.1985] AE86 DEEP MAROON,RED/MAROON,TRIM3# |
72457-14040-C0 |
— | ||
|
72524
|
72524
72525-12090-02 Handle, Reclining Adjuster ReleaseRECLINING ADJUSTER RELEASE [05.1983 - 05.1985] AE86 RH,DEEP MAROON,RED/MAROON,TRIM3# |
72525-12090-02 |
US $12.67 |
||
| replacement | |||||
|
72524
|
72524
72525-12090-C0 Handle, Reclining Adjuster Release (Black)[05.1983 - 05.1985] AE86 RH,DEEP MAROON,RED/MAROON,TRIM3# |
72525-12090-C0 |
US $13.10 |
||
|
72524
|
72524
72525-12090-04 Handle, Reclining Adjuster ReleaseRECLINING ADJUSTER RELEASE [05.1983 - 07.1987] AE86 RH,BLUE,BLUE,TRIM8# |
72525-12090-04 |
US $12.67 |
||
| replacement | |||||
|
72524
|
72524
72525-12090-C0 Handle, Reclining Adjuster Release (Black)[05.1983 - 07.1987] AE86 RH,BLUE,BLUE,TRIM8# |
72525-12090-C0 |
US $13.10 |
||
|
72524
|
72524
72526-12030-02
Handle, Reclining Adjuster Release
[05.1983 - 05.1985] AE86 LH,DEEP MAROON,RED/MAROON,TRIM3# |
72526-12030-02 |
— | ||
| replacement | |||||
|
72524
|
72524
72526-12030-C0 Handle, Reclining Adjuster ReleaseRECLINING ADJUSTER RELEASE, LH [05.1983 - 05.1985] AE86 LH,DEEP MAROON,RED/MAROON,TRIM3# |
72526-12030-C0 |
US $14.88 |
||
|
72524
|
72524
72526-12030-04 Handle, Reclining Adjuster ReleaseRECLINING ADJUSTER RELEASE [05.1983 - 07.1987] AE86 LH,BLUE,BLUE,TRIM8# |
72526-12030-04 |
US $12.67 |
||
| replacement | |||||
|
72524
|
72524
72526-12030-C0 Handle, Reclining Adjuster ReleaseRECLINING ADJUSTER RELEASE, LH [05.1983 - 07.1987] AE86 LH,BLUE,BLUE,TRIM8# |
72526-12030-C0 |
US $14.88 |
||
|
72553
|
72553
72553-12040 Cover, Reclining Pedal[05.1983 - 07.1987] AE86 |
72553-12040 |
US $3.32 |
||
|
9011908080
|
9011908080
90119-08080 BOLT |
90119-08080 |
from US $1.44 |
||
|
9011910037
|
9011910037
90119-10037
BOLT
|
90119-10037 |
— | ||
|
9011910136
|
9011910136
90119-10136
New Genuine Part
|
90119-10136 |
— | ||
|
9011910404
|
9011910404
90119-10404 New Genuine Part |
90119-10404 |
US $3.20 |
||
|
9015480002
|
9015480002
90154-80002 New Genuine Part |
90154-80002 |
from US $1.75 |
||
|
9016840011
|
9016840011
90168-40011 SCREW |
90168-40011 |
US $1.22 |
||
|
9052001002
|
9052001002
90520-01002
Ring, Shaft Snap(For Vent Window Control)
|
90520-01002 |
— | ||
| replacement | |||||
|
9052001002
|
9052001002
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle) |
90520-01274 |
from US $1.01 |
||
|
9324954006
|
9324954006
93249-54006 Screw |
93249-54006 |
US $1.76 |
||
|
9356055014
|
9356055014
93560-55014 SCREW |
93560-55014 |
from US $0.70 |
||
|
9616000800
|
9616000800
96160-00800 Ring, E(For Counter Weight) |
96160-00800 |
from US $0.90 |
||
