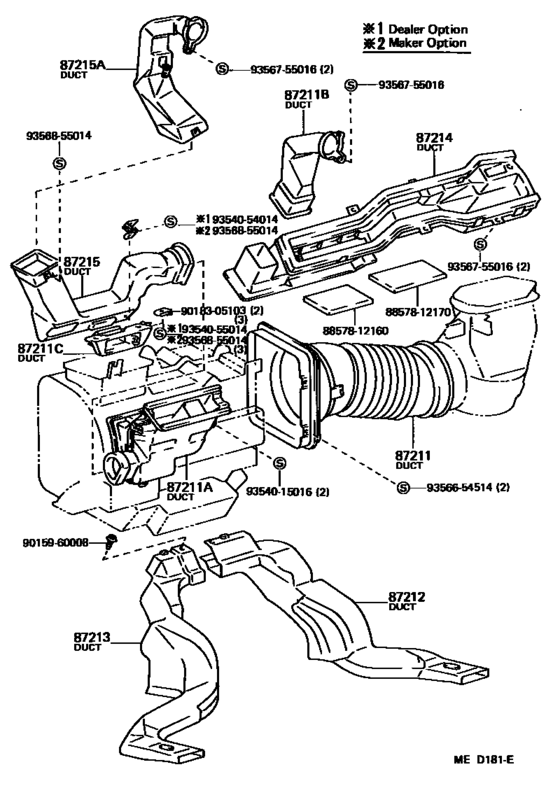

Heating & Air Conditioning - Control & Air Duct ([05.1983 - ] (8305- )LHD) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- General
- Frame
- AE86
- grade
- SR
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 02.1985
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87211
|
87211
87201-12030
Duct, Air, No.1
[05.1983 - 07.1987] AE86..LHD |
87201-12030 |
— | ||
|
87211A
|
87211A
87201-12070
Duct, Air, No.2
[05.1983 - 07.1987] AE86..LHD |
87201-12070 |
— | ||
|
87211B
|
87211B
55845-12100
Duct, Air, No.3
[05.1983 - 07.1987] AE86..LHD |
55845-12100 |
— | ||
|
87214
|
87214
55087-12100 Duct, Air, Side No.1 RhAIR, SIDE NO.1 RH [05.1983 - 07.1987] AE86..LHD |
55087-12100 |
US $63.48 |
||
|
87215
|
87215
55085-12100 Duct, Air, Side No.1 LhAIR, SIDE NO.1 LH [05.1983 - 07.1987] AE86..LHD |
55085-12100 |
US $38.44 |
||
|
87215A
|
87215A
55084-12120 Duct, Air, Side No.2 LhAIR, SIDE NO.2 LH [05.1983 - 07.1987] AE86..LHD |
55084-12120 |
US $33.49 |
||
|
8857812160
|
8857812160
88578-12160
Packing (For Cooler)
|
88578-12160 |
— | ||
| replacement | |||||
|
8857812160
|
8857812160
88578-12170
Packing, Air Purifier, No.2
|
88578-12170 |
— | ||
|
8857812170
|
8857812170
88578-12170
Packing, Air Purifier, No.2
|
88578-12170 |
— | ||
|
9015960008
|
9015960008
90159-60008 SCREW |
90159-60008 |
US $1.12 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9354015016
|
9354015016
93540-15016 New Genuine Part |
93540-15016 |
US $0.87 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $1.42 |
||
|
9354055014
|
9354055014
93540-55014 New Genuine Part |
93540-55014 |
US $0.96 |
||
|
9356654514
|
9356654514
93566-54514
New Genuine Part
|
93566-54514 |
— | ||
| replacement | |||||
|
9356654514
|
9356654514
93568-54514 New Genuine Part |
93568-54514 |
US $1.76 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
