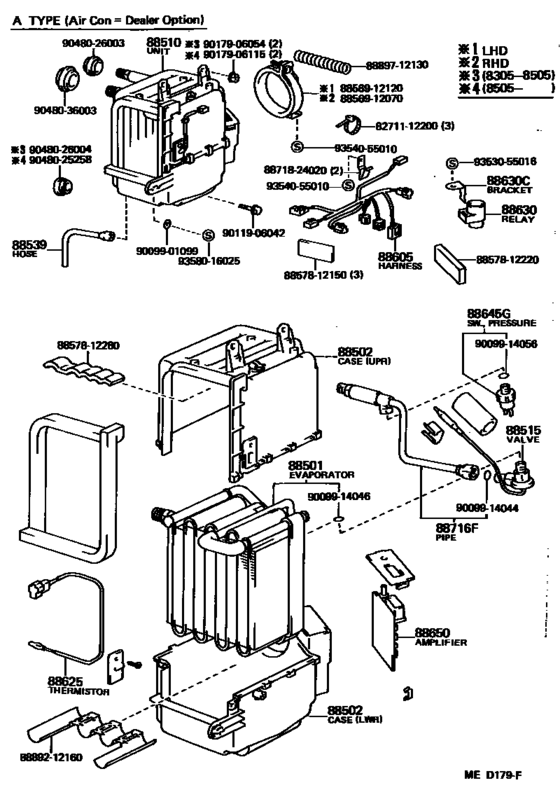

Heating & Air Conditioning - Cooler Unit ([05.1983 - ] (8305- )) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- General
- Frame
- AE86
- grade
- SR
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 02.1985
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88510
|
88510
88510-12400
Unit Assy, Cooler
[05.1983 - 05.1985] AE86..LHD..SR W/HEATER,B TYPE |
88510-12400 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
8856912070
|
8856912070
88569-12070
Clamp (for Cooler Relay)
|
88569-12070 |
— | ||
|
8856912120
|
8856912120
88569-12120
Clamp (for Cooler Relay)
|
88569-12120 |
— | ||
|
8857812150
|
8857812150
88578-12150
Packing, Air Purifier, No.2
|
88578-12150 |
— | ||
| replacement | |||||
|
8857812150
|
8857812150
88578-12170
Packing, Air Purifier, No.2
|
88578-12170 |
— | ||
|
8857812220
|
8857812220
88578-12220
Paking, Cooler Air Duct
|
88578-12220 |
— | ||
|
8857812280
|
8857812280
88578-12280
Paking, Cooler Air Duct
|
88578-12280 |
— | ||
|
8871824020
|
8871824020
88718-24020
Clamp (For Cooler Wiring Harness), No.1
|
88718-24020 |
— | ||
|
8889212160
|
8889212160
88892-12160
Bracket, Cooler Evaporator Mounting
|
88892-12160 |
— | ||
|
8889712130
|
8889712130
88897-12130
Valve, Cooler Magnet
|
88897-12130 |
— | ||
|
9009901099
|
9009901099
90099-01099
New Genuine Part
|
90099-01099 |
— | ||
|
9009914044
|
9009914044
90099-14044 Ring, O(For Cooler Refrigerant Liquid Hose) |
90099-14044 |
US $0.70 |
||
|
9009914046
|
9009914046
90099-14046 Ring, O(For Cooler Refrigerant Discharge Hose) |
90099-14046 |
US $0.55 |
||
|
9009914056
|
9009914056
90099-14056
New Genuine Part
|
90099-14056 |
— | ||
|
9011906042
|
9011906042
90119-06042
New Genuine Part
|
90119-06042 |
— | ||
| replacement | |||||
|
9011906042
|
9011906042
90119-06341 BOLT |
90119-06341 |
US $1.92 |
||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $1.92 |
||
|
9048025258
|
9048025258
90480-25258
Grommet, Rear Heater Water Hose
|
90480-25258 |
— | ||
|
9048026003
|
9048026003
90480-26003 Grommet (For Cooler Unit) |
90480-26003 |
US $3.14 |
||
|
9048026004
|
9048026004
90480-26004 Grommet, Heater Hose |
90480-26004 |
US $1.40 |
||
|
9048036003
|
9048036003
90480-36003 Grommet (For Cooler Unit) |
90480-36003 |
US $3.32 |
||
|
9353055016
|
9353055016
93530-55016 New Genuine Part |
93530-55016 |
US $0.61 |
||
|
9354055010
|
9354055010
93540-55010 SCREW |
93540-55010 |
US $1.12 |
||
|
9358016025
|
9358016025
93580-16025 New Genuine Part |
93580-16025 |
US $1.60 |
||
