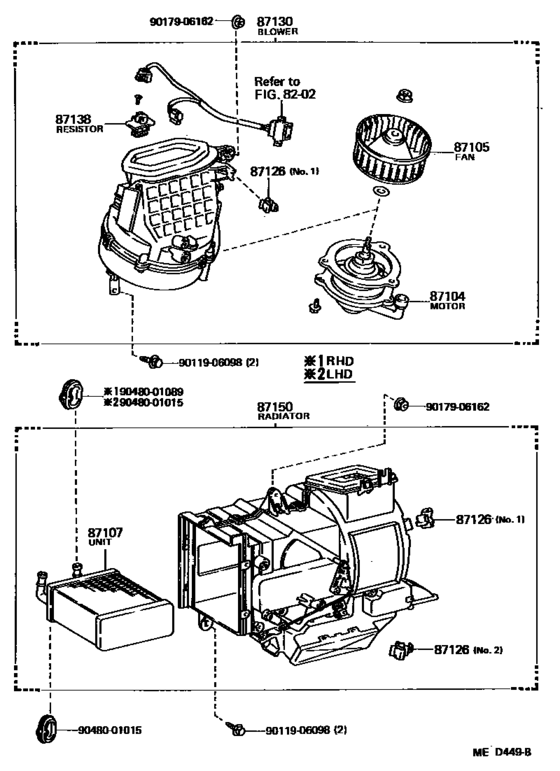

Heating & Air Conditioning - Heater Unit & Blower ([05.1983 - ] (8305- )) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- General
- Frame
- AE86
- grade
- SR
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 02.1985
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87104
|
87104
87104-12120
Motor Sub-Assy, Heater Blower
[05.1983 - 07.1987] AE86 |
87104-12120 |
— | ||
|
87105
|
87105
87105-12060
Fan Sub-Assy, Heater Blower
[05.1983 - 07.1987] AE86..LHD |
87105-12060 |
— | ||
|
87107
|
87107
87107-12280
Unit Sub-Assy, Heater Radiator
[05.1983 - 07.1987] AE86..LHD |
87107-12280 |
— | ||
| replacement | |||||
|
87107
|
87107
87107-12290
Unit Sub-Assy, Heater Radiator
[05.1983 - 07.1987] AE86..LHD |
87107-12290 |
— | ||
|
87130
|
87130
87130-12170
Blower Assy, Heater, Front
[05.1983 - 07.1987] AE86..LHD |
87130-12170 |
— | ||
|
87138
|
87138
87138-12091
Resistor, Heater Blower
[05.1983 - 07.1987] AE86 |
87138-12091 |
— | ||
|
87150
|
87150
87150-12240
Radiator Assy, Heater
[05.1983 - 07.1987] AE86..LHD |
87150-12240 |
— | ||
|
9011906098
|
9011906098
90119-06098 BOLT |
90119-06098 |
US $1.28 |
||
|
9017906162
|
9017906162
90179-06162
New Genuine Part
|
90179-06162 |
— | ||
| replacement | |||||
|
9017906162
|
9017906162
90179-06308 NUT |
90179-06308 |
US $1.28 |
||
|
9048001015
|
9048001015
90480-01015
Grommet, Heater Hose
|
90480-01015 |
— | ||
|
9048001089
|
9048001089
90480-01089
Grommet, Heater Hose
|
90480-01089 |
— | ||
