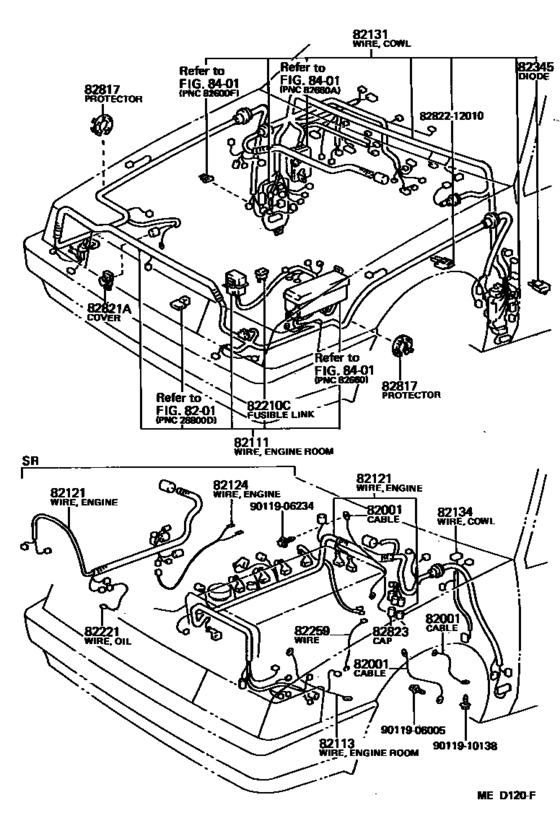

Wiring & Clamp ([05.1983 - ] (8305- )) Diagram Toyota COROLLA
- Year
- 1983 - 1985
- Sales region
- General
- Frame
- AE86
- grade
- SR
- ENGINE
- 4AC
- TRANSMISSION
- MTM
- Model
- COROLLA LEVIN/COUPE
- From
- 08.1983
- To
- 02.1985
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla Coupe
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07148 Cable, Bond, No.1[06.1983 - 07.1987] AE86 MISSION-MEMBER,L=260 |
90980-07148 |
US $7.16 |
||
|
82001
|
82001
90980-07200 Cable, Bond, No.1[05.1983 - 09.1983] AE86..SR ENGINE-COWL |
90980-07200 |
US $7.72 |
||
|
82001
|
82001
90980-07226 Cable, Bond, No.1BOND, NO.1 [05.1983 - 07.1987] AE86 CLACH-FLOOR |
90980-07226 |
US $7.28 |
||
|
82001
|
82001
90980-07233 Cable, Bond, No.1[09.1983 - 04.1987] AE86..SR ENGINE-COWL |
90980-07233 |
US $9.90 |
||
|
82111
|
82111
82111-12410
Wire, Engine Room Main
[08.1983 - 02.1985] AE86..SDZ |
82111-12410 |
— | ||
|
82111
|
82111
82111-12420
Wire, Engine Room Main
[02.1985 - 03.1985] AE86..LHD..EUR |
82111-12420 |
— | ||
|
82113
|
82113
82113-12090 Wire, Engine Room, No.3ENGINE ROOM, NO.3 [05.1983 - 07.1987] AE86 |
82113-12090 |
US $33.49 |
||
|
82121
|
82121
82121-12180
Wire, Engine
[08.1983 - 02.1985] AE86..SDZ |
82121-12180 |
— | ||
|
82121
|
82121
82121-12300 Wire, EngineENGINE [02.1985 - 03.1985] AE86..SDZ |
82121-12300 |
US $707.62 |
||
| replacement | |||||
|
82121
|
82121
82121-12301
Wire, Engine
[02.1985 - 03.1985] AE86..SDZ |
82121-12301 |
— | ||
|
82124
|
82124
82124-12040
Wire, Engine, No.4
[08.1983 - 02.1985] AE86..SDZ |
82124-12040 |
— | ||
|
82131
|
82131
82131-12500
Wire, Cowl
[02.1985 - 03.1985] AE86..SDZ |
82131-12500 |
— | ||
|
82131
|
82131
82131-12630
Wire, Cowl
[08.1983 - 02.1985] AE86..SDZ |
82131-12630 |
— | ||
|
82134
|
82134
82134-12060 Wire, Cowl, No.4COWL, NO.4 [05.1983 - 07.1987] AE86..LHD |
82134-12060 |
US $31.16 |
||
|
82210C
|
82210C
90982-08188 Fusible Link[05.1983 - 04.1987] AE86..SR 30A,TERMINAL:FEMALE,30A |
90982-08188 |
US $11.36 |
||
|
82210C
|
82210C
90982-08190 Fusible Link[05.1983 - 04.1987] AE86..SR 60A,TERMINAL:FEMALE,60A |
90982-08190 |
US $12 |
||
|
82221
|
82221
82221-16010 Wire, Oil Pressure Switch[05.1983 - 04.1987] AE86..SR |
82221-16010 |
US $9.17 |
||
|
82259
|
82259
82259-12060
Wire, Distributor
[05.1983 - 04.1987] AE86..SR |
82259-12060 |
— | ||
|
82817
|
82817
82817-32010
Protector, Wiring Harness, No.1
[05.1983 - 07.1987] AE86 |
82817-32010 |
— | ||
|
8282212010
|
8282212010
82822-12010
Bracket,connector Block
|
82822-12010 |
— | ||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906234
|
9011906234
90119-06234 New Genuine Part |
90119-06234 |
US $1.75 |
||
|
9011910138
|
9011910138
90119-10138 New Genuine Part |
90119-10138 |
US $3.49 |
||
| replacement | |||||
|
9011910138
|
9011910138
90119-10767 New Genuine Part |
90119-10767 |
US $7.20 |
||
